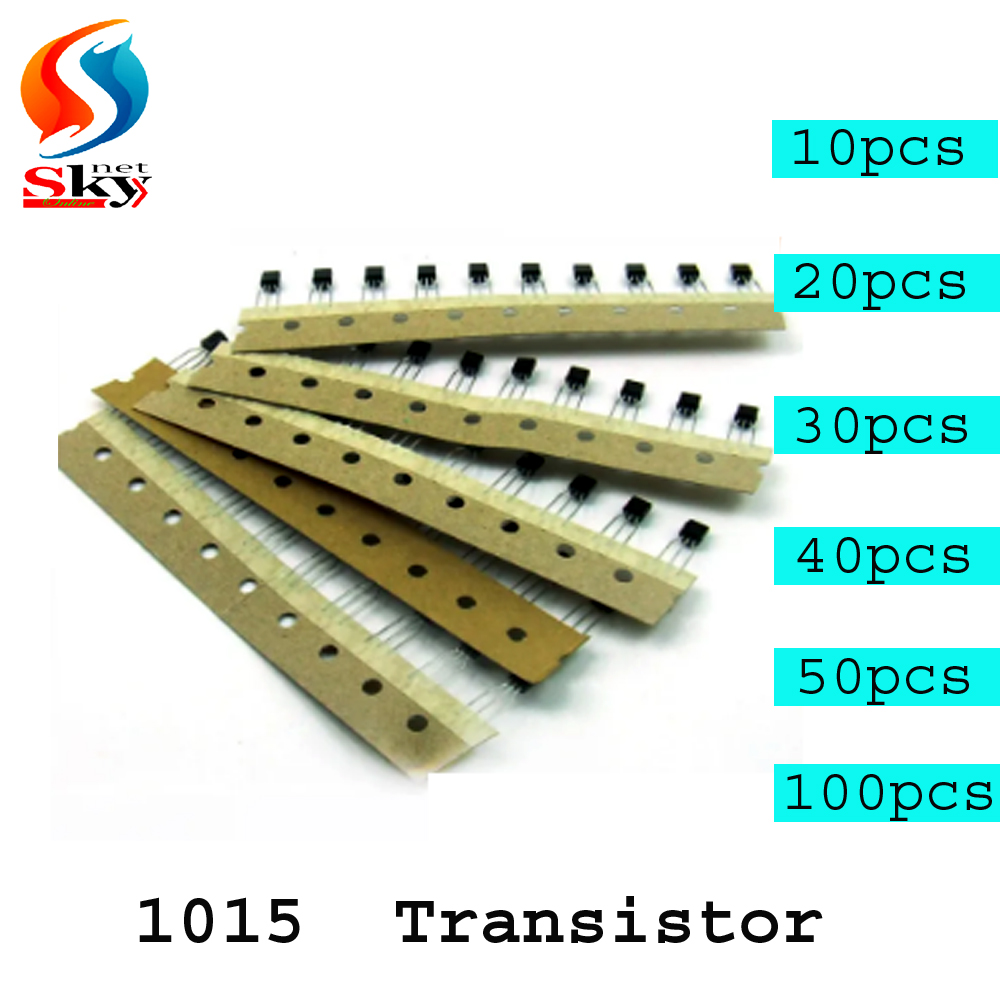

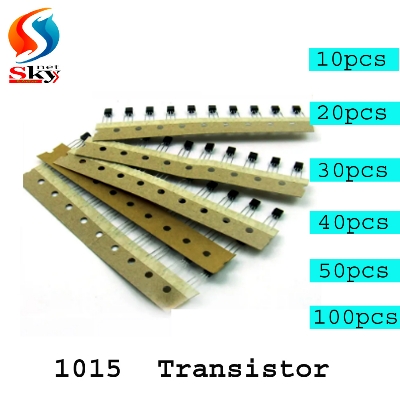

Descriptions: 2SC1015 NPN Transistor 40V 300mA 33W TO-92.

1. Type Designator: 2SC1015
2. Material of transistor: Si
3. Polarity: NPN
4. Maximum collector power dissipation (Pc), W: 33
5. Maximum collector-base voltage Ucb, V: 40
6. Maximum collector-emitter voltage Uce, V: 0
7. Maximum emitter-base voltage Ueb, V: 4
8. Maximum collector current Ic max, A: 3
9. Maximum temperature (Tj), °C: 175
10. Transition frequency (ft), MHz: 400
11. Collector capacitance (Cc), pF:
12. Forward current transfer ratio (hFE), min: 20
13. Noise Figure, dB: –
14. Size : TO92

Package include:

• 1 x 2SC 1015 Transistor 40V
