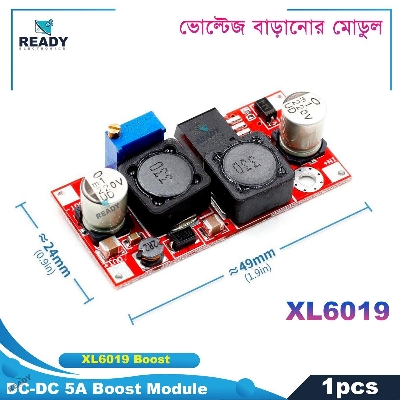

Picture of Xl6019 Boost Buck Dc-Dc Adjustable Step Up Down Converter Xl6019 Power Supply Module 20W 5-32V To 1.2-35V - Power Bank Circuit

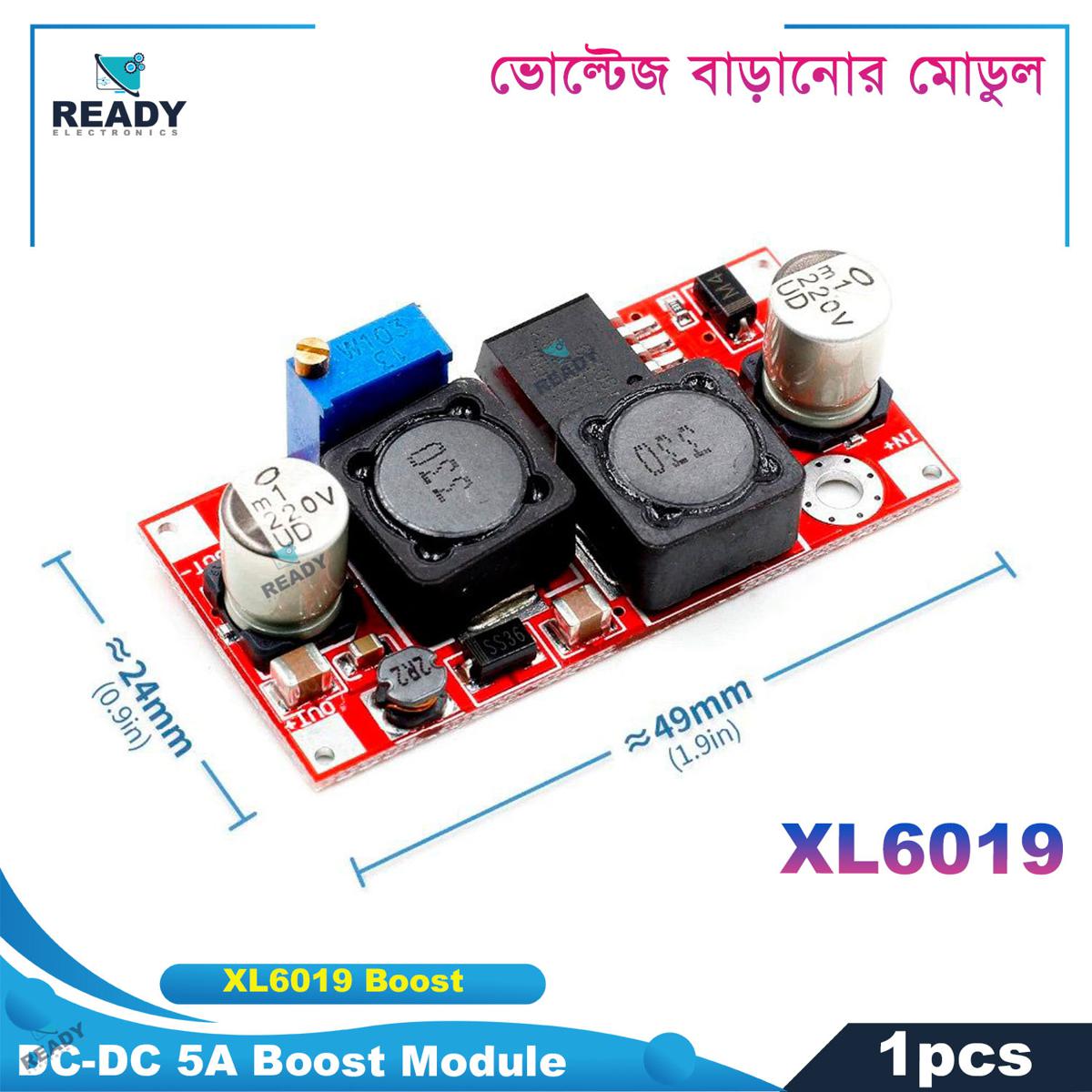

Picture of Xl6019 Boost Buck Dc-Dc Adjustable Step Up Down Converter Xl6019 Power Supply Module 20W 5-32V To 1.2-35V - Power Bank Circuit

Xl6019 Boost Buck Dc-Dc Adjustable Step Up Down Converter Xl6019 Power Supply Module 20W 5-32V To 1.2-35V - Power Bank Circuit

Category:
SKU: RDE02188
Seller: READY ELECTRONICS
App Coupon & 10% Extra Savings ( T&C)
Tk 353
Tk 570
Tk 570
38% OFF
0 review(s)
  • Specification model: DSN6000AUD automatic Buck module
  • Module properties: non-isolated impulse (impulse)
  • Rectification: non-synchronous rectification
  • Input range: 3.8 V-32 V
  • Output range: 1.25 V-35 V
  • Input current: 3A (max), 18 ma without load (5 V input, 8 V output, the load is not less than 18 m, the higher the voltage, the higher the load current).
  • Conversion efficiency: <94% (the higher the pressure, the lower the efficiency)
  • Switching frequency 400 kHz
  • Output ripple: 50 mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load regulation: 0.5%
  • Voltage regulation: 0.5%
  • Operating temperature: -40- + 85
  • Size: 49mm * 24mm (L * W )
  • #power bank circuit

Call For Order : 09613-800800
The auto start voltage will be lowered to 7 V or less, and the motor will be at high speed when the voltage is up to 15 V or more. It is difficult to work for 12 V electrical equipment, this automatic riser module can solve this problem, regardless of whether the input voltage is 5 V, 12 V or 32 V,
The output can be stabilized at 12 V.
Built-in 4A efficient MOSFET switches allow efficiency to 94%; (Current LM2577 is 3A)
High switching frequency 400 kHz, the ripple is smaller, the dimension is smaller. (LM2577 frequency 50 kHz)





  • Specification model: DSN6000AUD automatic Buck module
  • Module properties: non-isolated impulse (impulse)
  • Rectification: non-synchronous rectification
  • Input range: 3.8 V-32 V
  • Output range: 1.25 V-35 V
  • Input current: 3A (max), 18 ma without load (5 V input, 8 V output, the load is not less than 18 m, the higher the voltage, the higher the load current).
  • Conversion efficiency: <94% (the higher the pressure, the lower the efficiency)
  • Switching frequency 400 kHz
  • Output ripple: 50 mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load regulation: 0.5%
  • Voltage regulation: 0.5%
  • Operating temperature: -40- + 85
  • Size: 49mm * 24mm (L * W )
  • #power bank circuit
