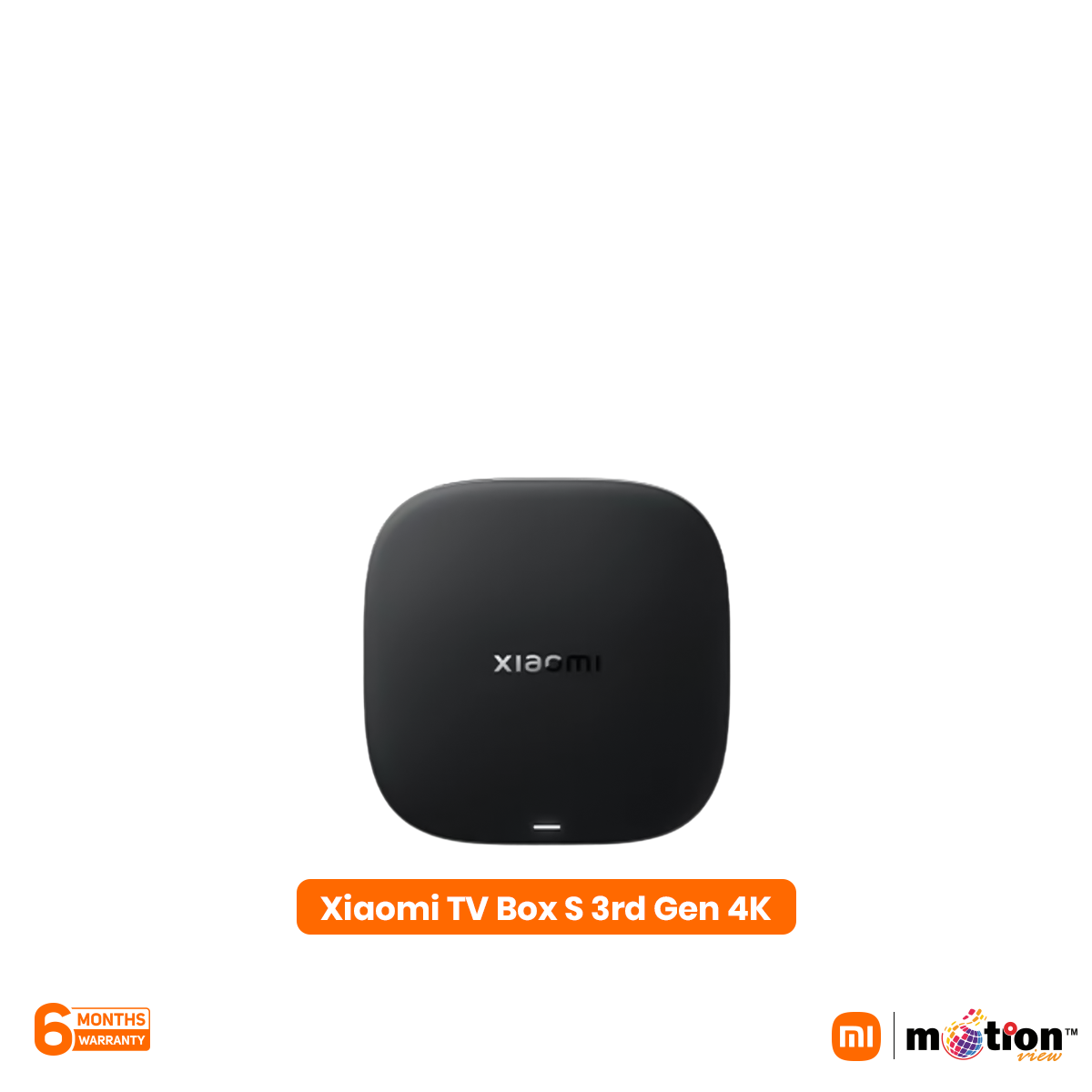

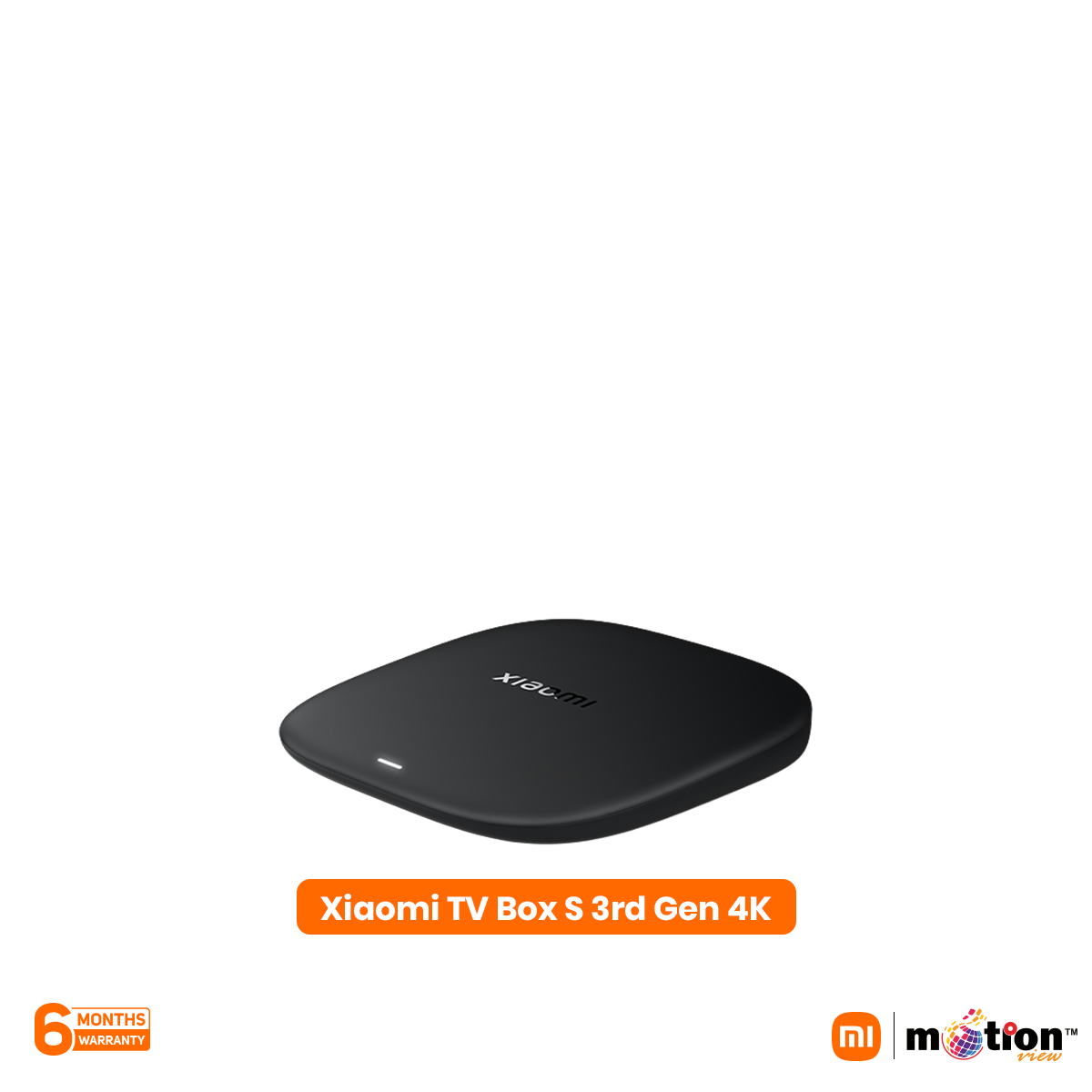

Xiaomi TV Box S 3rd Gen – Detailed Technical Specifications

1. Physical Specifications

• Dimensions: 97mm (L) × 97mm (W) × 17mm (H)
• Weight: 91.2g (without packaging)
• Color: Black

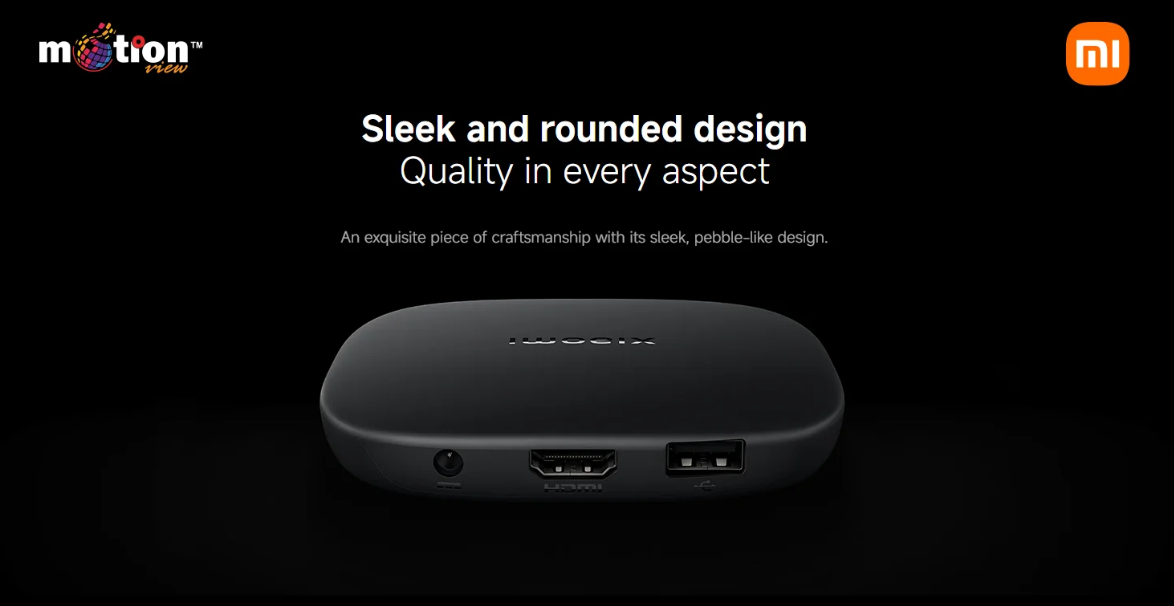

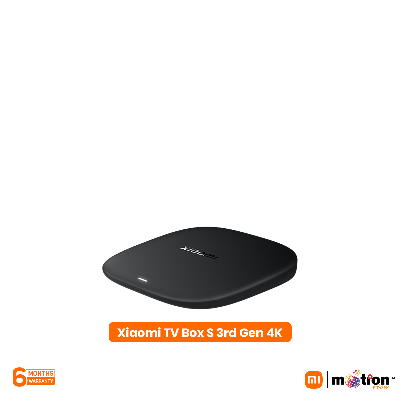

• Design: Sleek, pebble-like rounded design

2. Display & Video

• Output Resolution: 4K Ultra HD (3840 × 2160 @ 60Hz)
• HDR Support:
  • Dolby Vision®
  • HDR10+
  • Standard HDR
• Video Decoder: Supports up to 4K 60FPS decoding
• Compatibility: VP9, H.265 (HEVC), H.264, AV1

3. Audio

• Audio Formats:
  • Dolby Atmos®
  • DTS:X®
  • Dolby Digital Plus
  • DTS-HD
• Audio Output: HDMI (Passthrough for AV receivers)

4. Performance & Hardware

• CPU: Quad-Core ARM Cortex-A55 (64-bit, up to 2.5GHz)
• GPU: ARM Mali-G310 MP2
• RAM: 2GB LPDDR4
• Storage: 32GB eMMC 5.1 (Expandable via USB)
• Process Node: 6nm (Improved efficiency over previous gen)

5. Connectivity

• Wi-Fi: Dual-band Wi-Fi 6 (802.11ax, 2.4GHz & 5GHz)
• Bluetooth: 5.2 (Supports wireless headphones, keyboards, etc.)

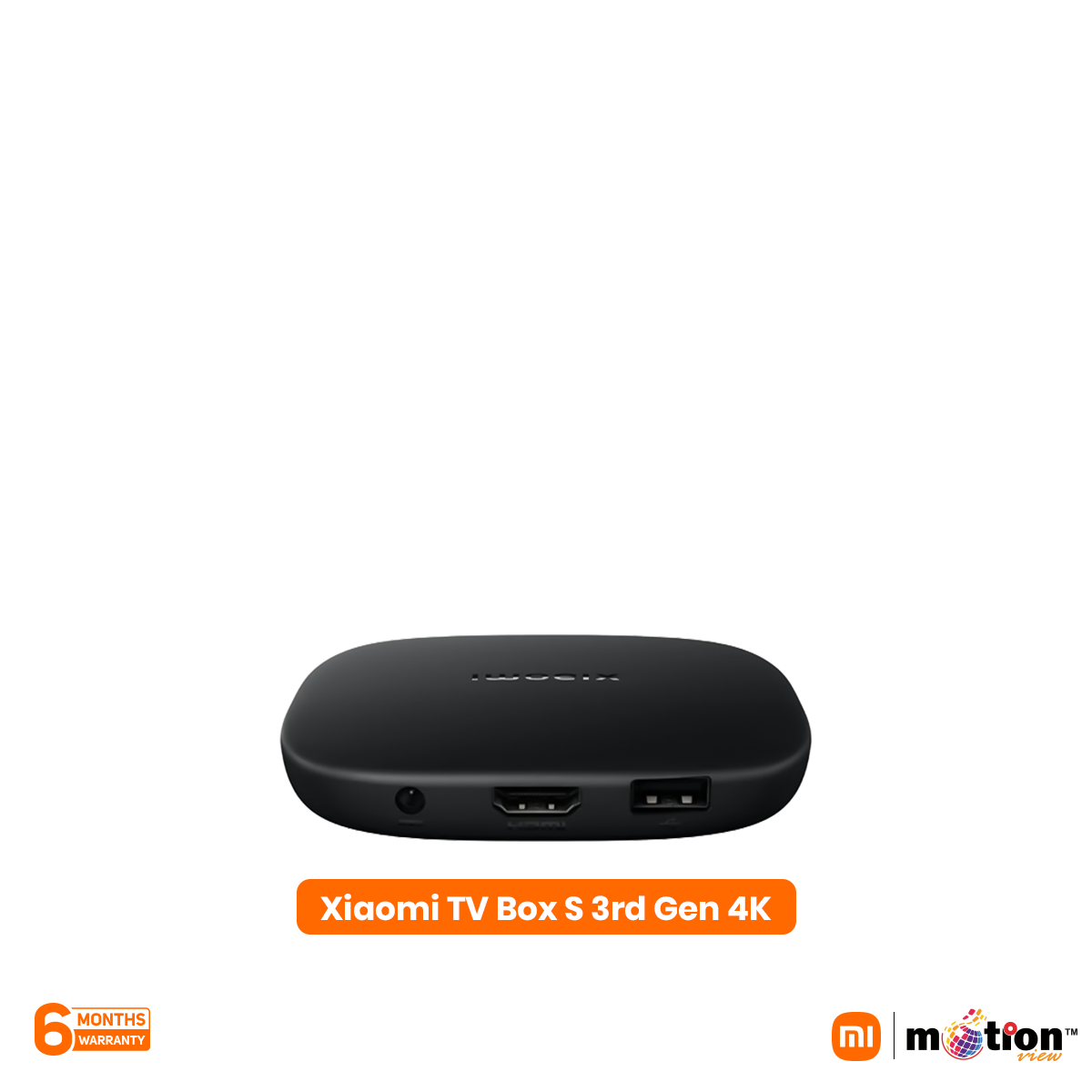

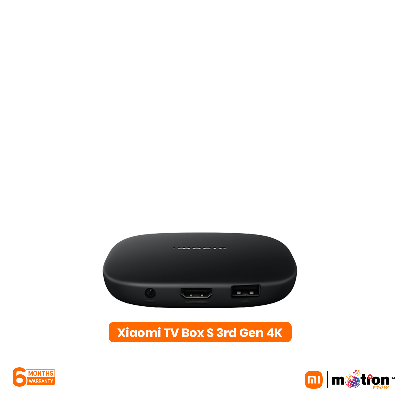

• Ports:
  • HDMI 2.1 (Supports 4K@60Hz, HDR, CEC)
  • USB 2.0 (For external storage/peripherals)
  • Power Interface (DC-in)
• Wireless Features:
  • Google Cast (Chromecast built-in)
  • Miracast (Screen mirroring)

6. Operating System & Software

• OS: Google TV™ (Latest version)
• Voice Control: Google Assistant (via Bluetooth remote)
• Content Aggregation: Google TV recommendations, 10,000+ apps
• App Support: Netflix, Prime Video, Disney+, YouTube, etc.

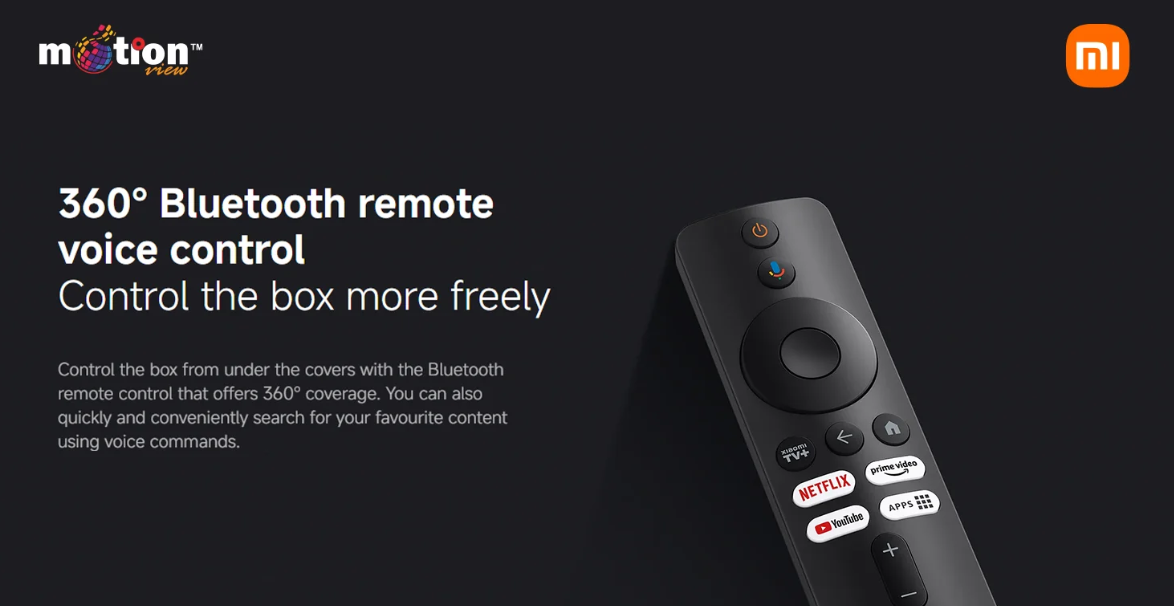

7. Remote Control

• Type: Bluetooth 5.2 (360° control, no line-of-sight needed)
• Features:
  • Dedicated Google Assistant button
  • Voice search
  • Shortcut buttons (Netflix, Prime Video, etc.)

8. Power & Energy Consumption

• Power Adapter: Included (5V/2A)
• Power Consumption: ~5W (Energy-efficient)

9. What’s in the Box?

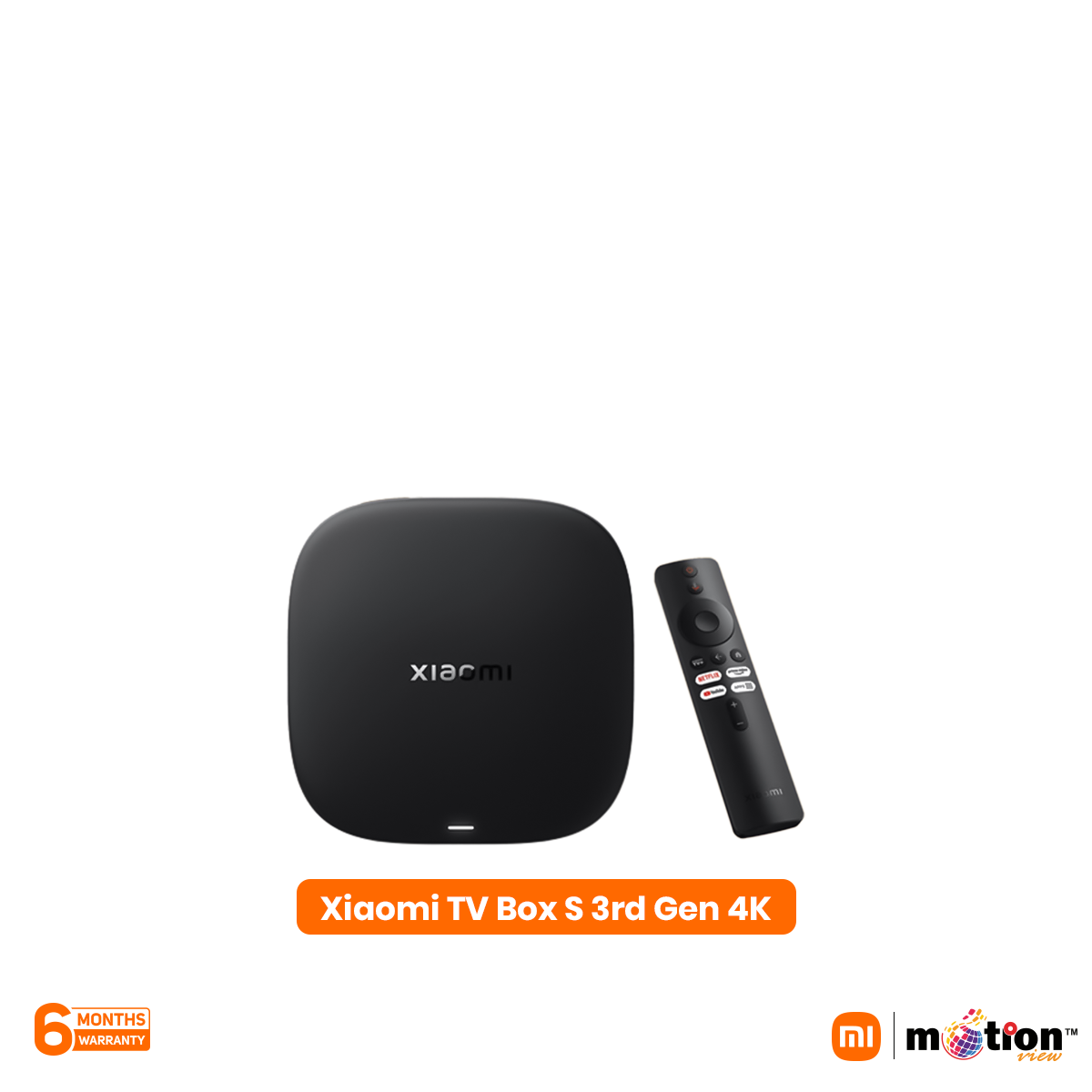

• Xiaomi TV Box S (3rd Gen) × 1
• Bluetooth Voice Remote × 1
• HDMI 2.1 Cable × 1
• Power Adapter × 1
• User Manual × 1

10. Compatibility & Requirements

• TV Requirement: HDMI 2.0/2.1 port (for 4K HDR)
• Internet: Wi-Fi 6 recommended for best streaming
• Google Account: Required for full functionality

Additional Notes

• Performance Boost: 25% faster CPU & 130% better GPU than 2nd Gen (Xiaomi Labs data)
• AI Upscaling: Enhances lower-resolution content for sharper visuals
• Multi-Language Support: Depends on Google TV regional availability

Some FAQs

Q1. Does it support 4K streaming? Yes, it supports 4K UHD at 60FPS with HDR10+ and Dolby Vision.

Q2. What audio formats are supported? Dolby Atmos and DTS:X for immersive sound.

Q3. Does it have Bluetooth? Yes, Bluetooth 5.2 for wireless accessories.

Q4. Is a Wi-Fi 6 router required? No, but Wi-Fi 6 ensures faster speeds if supported.

Q5. Does it include a remote? Yes, a 360° Bluetooth voice remote is included.

Q6. Can I use Google Assistant? Yes, via the remote (availability varies by region).

Q7. What’s in the box? TV Box, remote, HDMI cable, power adapter, and manual.

Q8. Is Chromecast built-in? Yes, it supports Google Cast for screen mirroring.

Xiaomi TV Box S 3rd Gen – Detailed Technical Specifications

• Output Resolution: 4K Ultra HD (3840 × 2160 @ 60Hz)
• HDR Support:
  • Dolby Vision®
  • HDR10+
  • Standard HDR
• Video Decoder: Supports up to 4K 60FPS decoding
• Compatibility: VP9, H.265 (HEVC), H.264, AV1

Audio

• Audio Formats:
  • Dolby Atmos®
  • DTS:X®
  • Dolby Digital Plus
  • DTS-HD
• Audio Output: HDMI (Passthrough for AV receivers)

Performance & Hardware

• CPU: Quad-Core ARM Cortex-A55 (64-bit, up to 2.5GHz)
• GPU: ARM Mali-G310 MP2
• RAM: 2GB LPDDR4
• Storage: 32GB eMMC 5.1 (Expandable via USB)
• Process Node: 6nm (Improved efficiency over previous gen)

Connectivity

• Wi-Fi: Dual-band Wi-Fi 6 (802.11ax, 2.4GHz & 5GHz)
• Bluetooth: 5.2 (Supports wireless headphones, keyboards, etc.)
• Ports:
  • HDMI 2.1 (Supports 4K@60Hz, HDR, CEC)
  • USB 2.0 (For external storage/peripherals)
  • Power Interface (DC-in)
• Wireless Features:
  • Google Cast (Chromecast built-in)
  • Miracast (Screen mirroring)

Operating System & Software

• OS: Google TV™ (Latest version)
• Voice Control: Google Assistant (via Bluetooth remote)
• Content Aggregation: Google TV recommendations, 10,000+ apps
• App Support: Netflix, Prime Video, Disney+, YouTube, etc.

7. Remote Control

• Type: Bluetooth 5.2 (360° control, no line-of-sight needed)

• .........................................................
• Warranty Policy:

• If You Want to Claim the Warranty You Must Submit Box Along with Accessories. Physical Damage or Dent/Scratch Will Not Be Acceptable for Warranty. No Warranty For Charging cable. ​
