Bullet Points:
1. Microcomputer control technology, support hybrid charging mode
2. Capable of setting the charging voltage of each bay individually

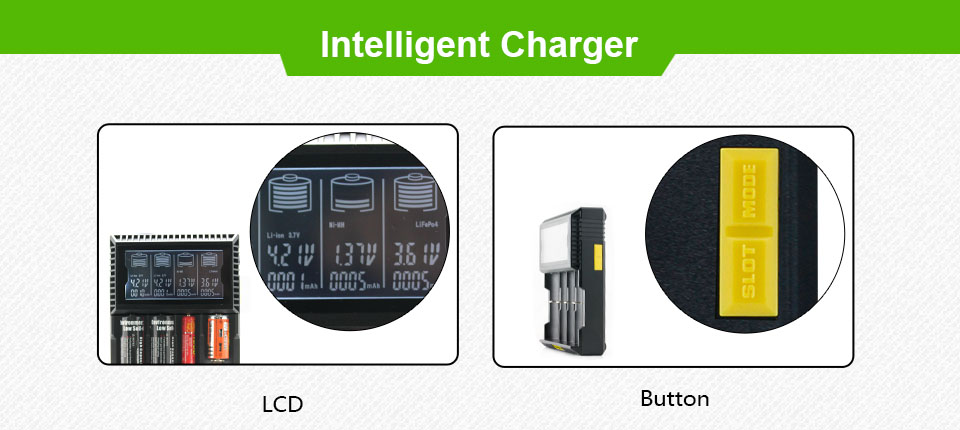

3. Integrated LCD panel clearly displays charging parameters and progress
4. Protect opposite connection and short circuit (Do not display battery symbol and voltage)
5. Automatic activation function and automatically stops charging when completed
NOTE:26650 battery can only be placed on the left and right sides of the card slot charge

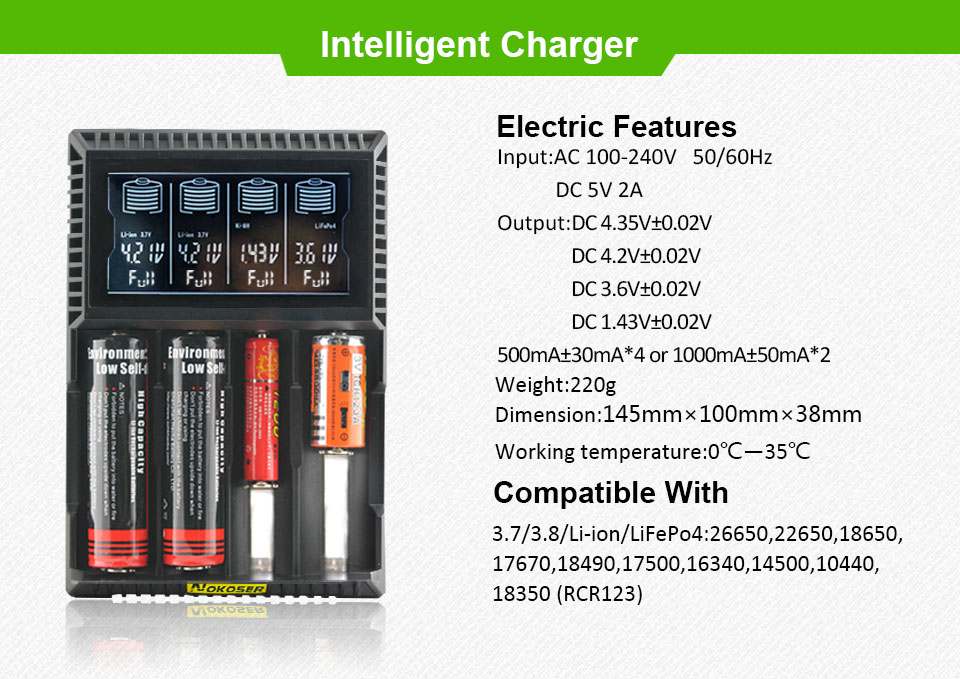

Specifications:
Material: ABS
Charging current: 500mA*4/1000mA*2
AC: AC100-240V wide voltage input 50 / 60HZ
Output voltage: 4.35v ± 1% / 4.2v ± 1% / 3.7v ± 1% / 1.48v ± 1%

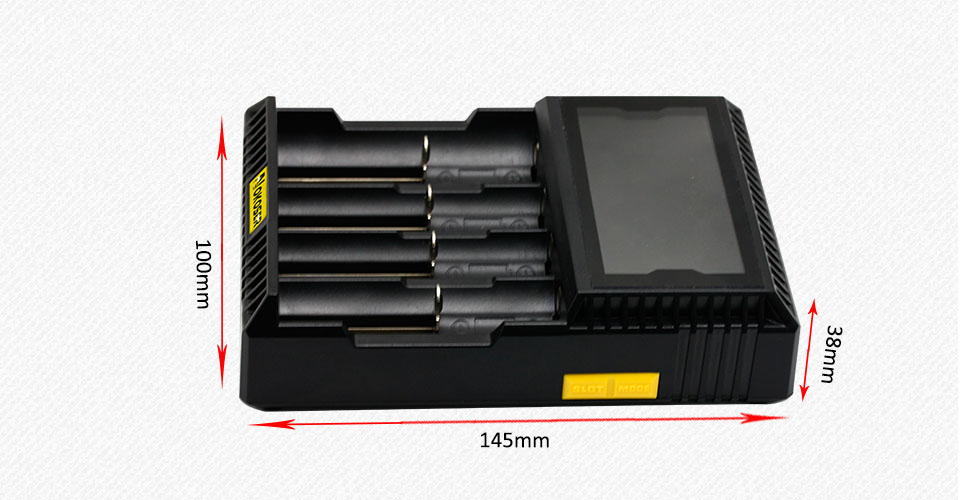

Size: 14.5 * 10 * 3.8CM
Weight: 0.36 KG
Color: Black
Compatible battery models:
3.7V/3.8V Li-ion/LiFeP04:
26650,22650,18650,18490,18350,17670,17500,14500,10440,16340 (RCR123)
Ni-MH / Ni-Cd: AAAA, AAA, AA, A, SC, C

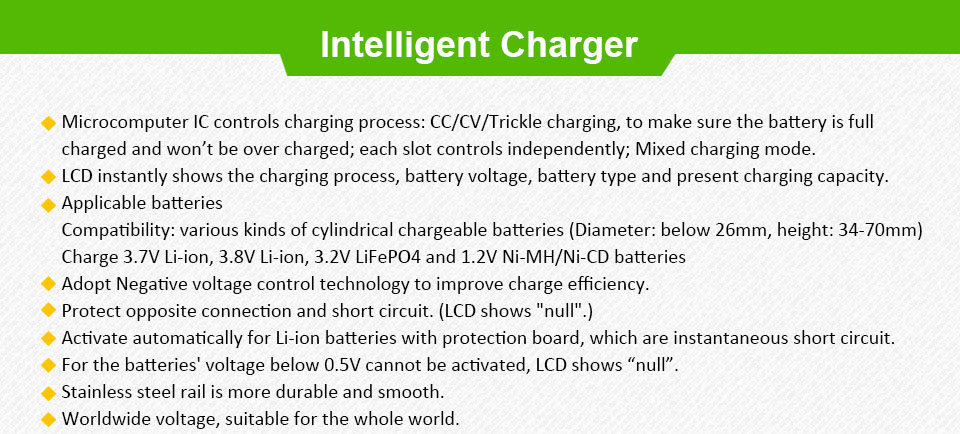

Features:
1. Mixed charging mode and each slot controls independently
2. Three charging modes (CC, CV and Trickle Charge)
3. Automatically detect battery status and select the appropriate voltage and charging mode
4. It will stop charging when the battery is fully charged
5. Reverse polarity protection prevents damage to both batteries and charger
6. Activated automatically for Li-ion batteries with protection board, which are instantaneous short circuit
7. Automatic activation of "zero voltage" lithium battery (with a protective board instantaneous short circuit)
8. Automatically activate battery above 0.2V
9. Pass RoHS and CE quality and safety certifications
