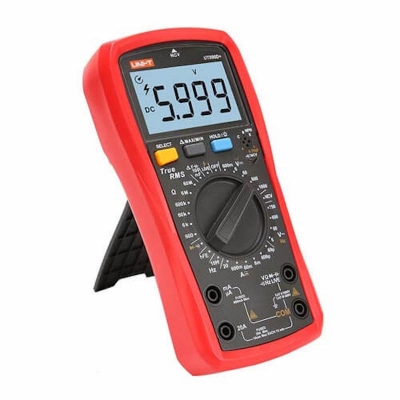

UNI-T UT890D+ Digital Multimeter

Category: Electric Hardware & Tools
SKU: LTBD49015
Seller: Labtex Bangladesh
App Coupon to Get Extra Discount
Tk 2,500
0 review(s)
    \n
  • Digital Professional Multimeter
    • \n
  • Model: UT890D+
    • \n
  • AC & DC BOTH
    • \n
  • Brand: UNI-T
    • \n
  • Made in China
    • \n
*

Call For Order : 09613-800800
\n
\n \nThe UT890D+ Digital Multimeter 6000-count true RMS digital multimeter is designed with a large LCD. The maximum measurable capacitance is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with automatic fuse blown detection and high voltage protection. \n

Features of the Digital Multimeter

\n
    \n
  • Manual range/True RMS
    • \n
  • Data hold/REL
    • \n
  • Audible/visual alarm (NCV/continuity)
    • \n
  • Current (AC/DC) mode memory
    • \n
  • Low battery indication: ≤2.5V
    • \n
  • NCV/hFE/Max/Min
    • \n
  • Diode test/Continuity test
    • \n
  • High voltage false detection: 1000Vrms
    • \n
  • Over-current alarm: ≥20A
    • \n
  • Auto power off/LCD backlight
    • \n
\n
\n
\n
\n
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
SpecificationRangeUT890D+
DC Voltage600mV/6V/60V/600V/1000V±(0.5%+2)
AC Voltage6V/60V/600V/750V±(0.8%+3)
ACV Frequency10Hz～10kHz±（0.1%+5)
DC Current60uA//600uA/6mA/60mA/600mA/20A±(0.8%+8)
AC Current60uA/600uA/6mA/60mA/600mA/20A±(1%+12)
Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(0.8%+3)
Capacitor6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF±(3%+10)
Frequency9.999Hz～9.999MHz±(1.0%+5)
Features
Display Count6000
Manual Range√
NCV√
hFE√
Diode Test√
Continuity Test√
Live√
True RMS√
Fuse blowing alarm√
Acousto-optic indication(NCV/continuity)√
High voltage false detection1000Vrms√
Current (AC/DC) mode memory√
Over-current alarm≥20A√
Low Battery Indication≤2.5V√
Data Hold√
REL√
Max/MinV 、A√
Auto  Power Off15Min√
Backlight30s√
Operation Temperature0℃～40℃
SafetyCAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power1.5V x 2
Product ColorRed and Gray
Product Net Weight346g
Product Size183mm x 88mm x 56mm
Standard Individual PackingGift Box, Manual
Standard Quantity Per Carton40pcs
Standard carton measurement690mm x 450mm x 340mm
Standard carton gross weight23Kg
\n
\n
\n

General Applications of UT890D+ Digital Multimeter:

\n
1. Electrical switchboards 2. HVAC systems 3. Electrical circuit faults detection 4. Installation or maintenance of electronics/factory equipment 5. Electronics component development, circuit board design 6. Users who need to distinguish between neutral/live wire frequently.
