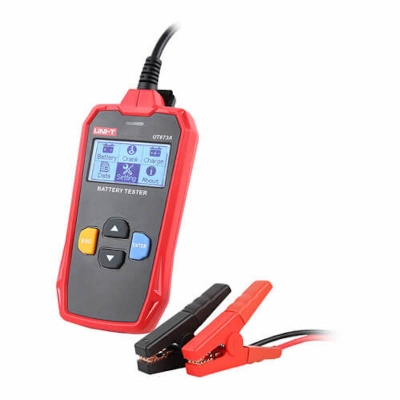

The UT673A Digital Battery Tester can be used to analyze the health of automobile batteries, suitable for battery capacities ranging from 30Ah to 200Ah. These CE-certified testers can rapidly and accurately detect common faults caused by batteries. UT675A also features USB communication and a built-in printer for generating reports. \n

Features of UNI-T UT673A Digital Battery Tester:

\n

\n
• 12V cranking lead-acid battery test
\n
• 12/24V charging or cranking system test
\n
• Display battery capacity, voltage, resistance, and life
\n
• Four-terminal Kelvin test
\n
• 10 types of battery standards
\n
• Language option (Chinese/English)
\n
• Test without battery disassembly
\n
• LED color indication for test result (UT673A)
\n
• Print online and real-time test reports (UT675A)
\n
• USB data transfer (UT675A)
\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications	Range	UT673A
Certificates	CE, FCC, RoHS
12V battery test	7~16V DC	√
12V/24V cranking system test	7~30V DC	√
12V/24V charging system test	7~30V DC	√
Battery type	Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery
Battery capacity	30Ah~200Ah	√
Battery standard and range	CCA: 40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN: 40~1400; \nIEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH
Over-voltage protection		√
Reverse  connection protection		√
A prompt of poor contact		√
Battery status display		√
Battery life display		√
Battery capacity display		√
Battery internal resistance display		√
General Characteristics
Power	None, powered by an external source
Display	128*64 black and white lattice
Product net weight	264g
Product size	76mm x 22mm x 142mm

\n \n \nClick to See the Using Process

\n
• Digital Battery Tester 30Ah to 200Ah
\n
• Brand: UNI-T
\n
• Model: UT673A
\n
• Made in China
\n
