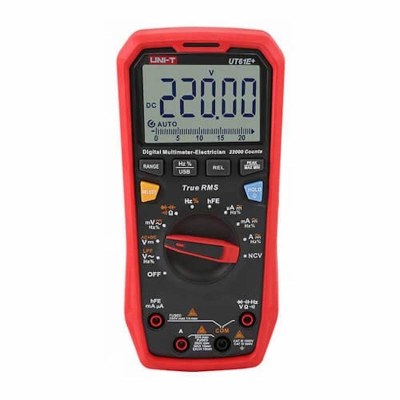

UNI-T UT61E+ 1000V True RMS Digital Multimeter Auto Range Meter is in Labtex Bangladesh. UT61E+ 1000V True RMS Digital Multimeter UT61+ series are reliable true RMS digital multimeters with display counts of 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC. Equipped with audible and visible alarms, this series can provide warnings, especially when measuring high voltage/current and temperature. \n

Features of UT61E+ 1000V True RMS Digital Multimeter:

\n

\n
• True RMS
\n
• Data hold/backlight
\n
• Max/Min/Relative mode
\n
• USB communication
\n
• Input protection
\n
• Diode/continuity test
\n
• NCV (audible/visual alarm)
\n
• LPF ACV
\n
• ACV+DCV
\n
• Transistor hFE
\n
• Peak Hold
\n

\n

Specifications

\n

\n
• Safety ratings CAT III 1000V/CAT IV 600V
\n
• AC voltage (V) 1000V ±(0.8%＋10)
\n
• DC voltage (V) 1000V ±(0.05%＋5)
\n
• AC (A) 20A ±(0.8%＋10)
\n
• DC (A) 20A ±(0.5%＋10)
\n
• Resistance (Ω) 220MΩ ±(0.5%＋10)
\n
• Capacitance (F) 220mF ±(3%＋5)
\n
• Frequency (Hz) 220MHz ±(0.01%＋5)
\n
• Duty cycle (%) 0.1%~99.9% ±(2%＋5)
\n
• Display count 　 22000
\n
• Bandwidth (Hz) 　 40~10kHz
\n
• LPF ACV 　 √
\n
• ACV+DCV 　 √
\n
• Transistor hFE 　 √
\n
• Peak Hold 　 √
\n
• Analog bar 　 46
\n
• General Characteristics
\n
• Power 1.5V battery (R03) x 4
\n

\n

Package Includes

\n► 1 Pcs UNI-T UT61E+ 1000V True RMS Digital Multimeter \n► 1 Pair Test Leads Probe \n► 1 Pcs USB cable \n► 1 Pcs Temperature Multi-purpose Socket \n► 1 Pcs English Manual \n

Click for More Information

\n
• Digital Multimeter Auto Range 1000V True RMS
\n
• Brand: UNI-T
\n
• Model: UT61E+
\n
• Made In China
\n
• Condition: Original Brand New
\n
