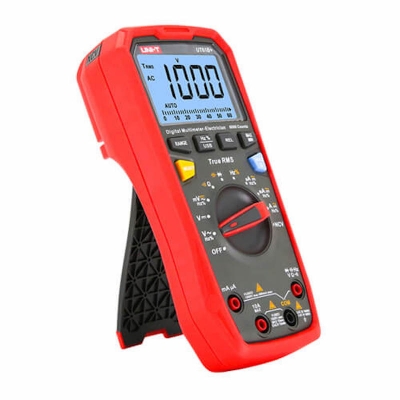

UT61B+ is a reliable True RMS Digital Multimeter with display counts of 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC. Equipped with audible and visible alarms, this series can provide warnings, especially when measuring high voltage/current and temperature. UT161 series are CE certified, suitable for the European market. \n

Features of UNI-T UT61B+ 1000V True RMS Digital Multimeter

\n

\n
• True RMS
\n
• Data hold/backlight
\n
• Max/Min/Relative mode
\n
• USB communication
\n
• Input protection
\n
• Diode/continuity test
\n
• NCV (audible/visual alarm)
\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications	Range	UT61B+
Safety ratings	CAT III 1000V/CAT IV 600V
AC voltage (V)	1000V	±(1%＋3)
DC voltage (V)	1000V	±(0.5%＋3)
AC (A)	10A	±(1.2%＋5)
DC (A)	10A	±(1%＋2)
Resistance (Ω)	60MΩ	±(1%＋2)
Capacitance (F)	60mF	±(3%＋5)
Frequency (Hz)	10MHz	±(0.1%＋4)
Duty cycle (%)	0.1%~99.9%	±(2%＋5)
Display count		6000
Bandwidth (Hz)		40Hz~500Hz
Analog bar		31
General Characteristics
Power	1.5V battery (R03) x 4
Product net weight	350g
Product size	190mm x 90mm x 50mm
Standard accessories	Battery, gold plated test leads, USB cable, English manual
Standard individual packing	Gift box, cloth bag
Standard quantity per carton	20pcs
Standard carton measurement	480mm x 370mm x 365mm
Standard carton gross weight	15.2kg
Optional accessories	Bluetooth/APP

\n

\n
• RMS Digital Multimeter
\n
• AC/DC voltage (V):1000V
\n
• Model: UT61B+
\n
• Brand: UNI-T
\n
• Made in China
