UT371 Tachometer is a non-contact tachometer that measures the rotating speed of a shaft or disk with a point laser and reflective tape on the object being measured. These meters can output RPM or count readouts without interfering with the equipment being measured. \n

\n

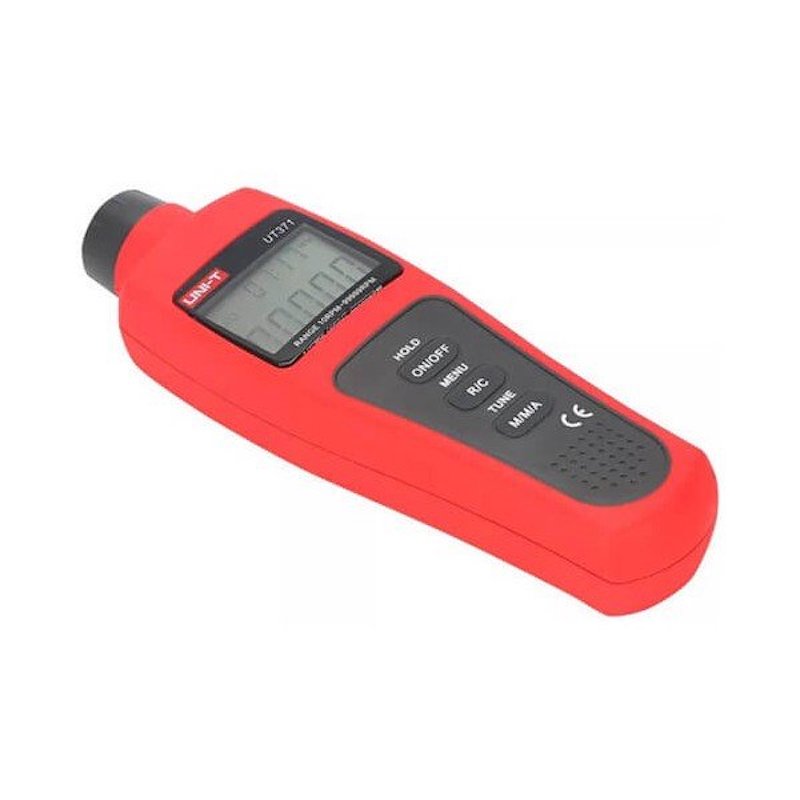

• Product: UNI-T UT371 Tachometer / RPM Meter
\n
• Band: UNI-T
\n
• Model: UT371
\n
• RPM Range: 10RPM~99999RPM
\n
• Made in China
\n

\n

Features of UT371 Tachometer RPM Testing Meter:

\n

\n
• 5-digit LCD screen, RPM/count, and time dual display, MAX/MIN/AVG/normal modes
\n
• Adjustable sampling rate (0.5-255s)
\n
• Auto power off (cancelable)
\n
• Optional (on/off) laser pointer
\n
• Clock and time setting
\n
• Data hold, low power consumption, continuous work for 40 hours
\n

\nTechnical Specification: \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications	Range	UT371
RPM range	10RPM~99RPM	±(0.03%)
	100RPM~999RPM	±(0.04%＋2)
	1000RPM~9999RPM	±(0.04%＋2)
	10000RPM~99999RPM	±(0.04%＋2)
Counts	Range: 0~99999	√
	Max. input frequency: 10kHz; bandwidth: 5%
Target distance	50mm~200mm	√
Features
Display count		100000
Data hold		√
Auto power off	Around 15 minutes	√
Low battery indication	≤4.8V	√
MAX/MIN/AVG mode		√
General Characteristics
Power	1.5V battery (LR6) X 4
Display	53mm x 41mm
Product Color	Red and grey
Product net weight	100g
Product size	184mm x 56mm x 34mm
Standard accessories	Reflective tape
Standard individual packing	Blister, English manual
Standard carton	420mm x 305mm x 370mm (0.047CBM per standard carton)

\nClick for More Information \n

Applications of The Tachometer

\n

\n
• Non-Contact Digital Tachometer
\n
• RPM Testing Meter
\n
• Model: UT371
\n
• Range: 10RPM~99RPM
\n
• Brand: UNI-T
\n
