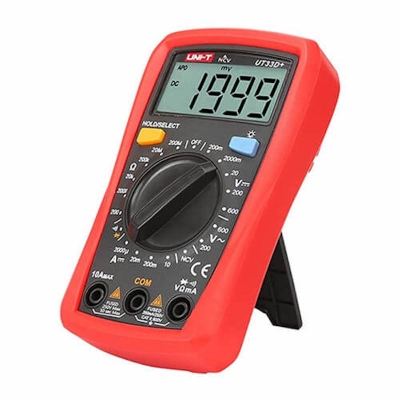

UNI-T UT33D+ Digital Multimeter AC DC Volt OHM Meter is the new generation and standard for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 2-meter drop. The new LCD layout provides a better user experience. The UT33D+ safety standards have also been enhanced to ensure that users can work safely in a CAT ll 600V environment. \n \nThe UNI-T UT33D+ is a compact and versatile digital multimeter designed for general electrical testing. It can measure several key electrical parameters including voltage, current, and resistance, with the added functionality of testing both AC and DC values. \n

Features of UNI-T UT33D+ Digital Multimeter AC DC Volt OHM Meter:

\n

\n
• Clear LCD
\n
• Equipped with comfortable protective cover, test lead hanging slot
\n
• 2m drop-proof with precision protection
\n
• Auto power off
\n
• Auto backlight off
\n
• Loud buzzer
\n
• Ergonomically designed rotary switch
\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications	Range	UT33D+
DC voltage (V)	200mV/2V/20V/200V/600V	±(0.5%＋2)
AC voltage (V)	200V/600V	±(1.2%+3)
DC (A)	2000μA/20mA/200mA/10A	±(1%+2)
Resistance (Ω)	200Ω/2kΩ/20kΩ \n/200kΩ/20MΩ/200MΩ	±(0.8%+2)
Features
Display count		2000
Auto power off/Auto backlight off		√
Diode test/Continuity buzzer		√
2m drop test/ Test probe holder		√
Range selection		Manual
NCV		√
General Characteristics
Power	1.5V battery (R03) x 2
Display	66mm x 51mm
Product net weight	Red and grey
Product Color	206g (batteries included)
Product size	134mm x 77mm x 47mm
Standard accessories	Batteries, test leads
Standard individual packing	Gift box, English manual
Standard quantity per carton	60pcs
Standard carton measurement	640mm x 310mm x 350mm
Standard carton gross weight	19.8kg

\n \n

Usage Tips of UT33D+ Multimeter:

\n

\n
• Ensure Proper Range Selection: Always set the multimeter to the correct range for the measurement you're taking, especially for current and voltage, to avoid overloading the meter.
\n
• Test Continuity: When testing for continuity in wires or components, use the continuity mode, which gives an audible tone when a connection is made.
\n
• Safety First: When measuring voltage or current, always ensure the probes are connected to the correct terminals and never exceed the rated input limits.
\n

\n
• UT33D+ Palm Size Multimeter
\n
• DC voltage (V): 200mV/2V/20V/200V/600V [±(0.5%＋2)]
\n
• AC voltage (V): 200V/600V [±(1.2%+3)]
\n
• DC current (A): 2000μA/20mA/200mA/10A [±(1%+2)]
\n
• Brand: UNI-T
\n
• Made in China
\n
