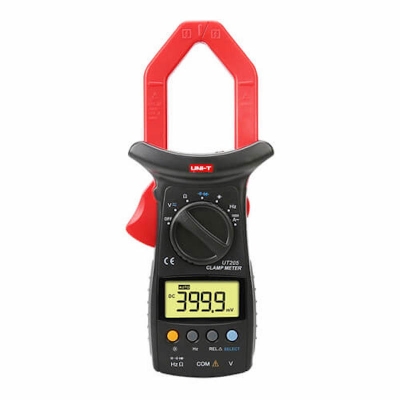

Picture of UNI-T UT205 Digital Clamp Meter 1000A
Picture of UNI-T UT205 Digital Clamp Meter 1000A

UNI-T UT205 Digital Clamp Meter 1000A

Category: Electric Hardware & Tools
SKU: LTBD81492
Seller: Labtex Bangladesh
App Coupon to Get Extra Discount
Tk 5,500
0 review(s)
    \n
  • Digital Clamp Meter 1000A
    • \n
  • Model: UT205
    • \n
  • Brand: UNI-T
    • \n
  • Made in China
    • \n
*

Call For Order : 09613-800800
\n \nUNI-T UT205 Digital Clamp Meter is a low-power, stable, safe, and reliable 4000-count AC clamp meter. The full range overload protection circuit and unique design make it a special electrical meter with superior performance. \n

Applications of UNI-T UT205 Digital Clamp Meter:

\n
\n
\n
\n
The meter is an ideal tool for maintenance in smelting, manufacturing, petroleum, electric power, chemical, and other industries.
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
SpecificationsRangeUT205
AC Current (A)400A/1000A±(1.5%+5)
400A/1000A≥800A:±(3%+5)
AC Voltage (V)4V/40V/400V/600V±(1.2%+5)
DC Voltage (V)400mV/4V/40V/400V/600V±(0.8%+1)
Resistance (Ω)400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(1%+2)
Frequency (Hz)10Hz~10MHz±(0.1%+3)
Features
Display count3999
Auto range√
Jaw opening40mm
Duty cycle0.1%~99.9%√
Diode test√
Auto power off√
Continuity buzzer√
Low battery indication√
Data hold√
LCD backlight√
Flashlight√
Full icon display√
Input impedance for DCV≥10MΩ√
General Characteristics
Power9V battery (6F22)
LCD size56.4mm × 37mm
Product ColorRed and grey
Product net weight522g
Product size106.4mm × 52mm × 257mm
Standard accessoriesBattery, test leads, alligator clips
standard individual packingToolbox, gift box
Standard quantity per carton20pcs
Standard carton measurement598mm × 375mm × 485mm
Standard carton gross weight27.3kg
\n
\n
\n
\nUNI T UT205 Digital Clamp Meter 1000A Uses




    \n
  • Digital Clamp Meter 1000A
    • \n
  • Model: UT205
    • \n
  • Brand: UNI-T
    • \n
  • Made in China
    • \n
