UNI-T UT204+ Digital Clamp Meter AC/DC 600A Current Tester True RMS Auto Range Temperature Measurement High Precision Multimeter. \n \nUT204+ digital clamp meter is designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety, and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC, etc. \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications	Range	UT204+
AC (A)	600A	±(2.5%+5)
DC (A)	600A	±(2.5%+5)
AC voltage (V)	600V	±(0.8%+5)
AC voltage frequency(Hz)	10Hz~60kHz	±(0.5%+2)
DC voltage (A)	600V	±(0.5%+2)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance (F)	60mF	±(4%+5)
Temperature (℃)	-40℃~1000℃	±(1.5%+5)
Frequency (Hz)	10Hz~10MHz	±(0.1%+4)
Features of the UNI-T UT204+
Display count		6000
Auto range		√
Jaw opening		28mm
True RMS		√
NCV		√
Live wire test		√
Continuity test		√
Diode		√
MAX/MIN		√
Relative mode		√
Zero mode		√
Data hold		√
Low battery indication		√
Auto power off		√
General Characteristics
Power	1.5V battery (R03) x 2
Display	37mm x 25mm
Product Color	Red and grey
Product net weight	235g
Product size	215mm x 63mm x 36mm
Standard accessories	Batteries, test leads, and a Thermocouple
Standard individual packing	Gift box, carrying bag, English manual
Standard quantity per carton	40pcs
Standard carton measurement	485mm x 295mm x 385mm
Standard carton gross weight	17.3kg

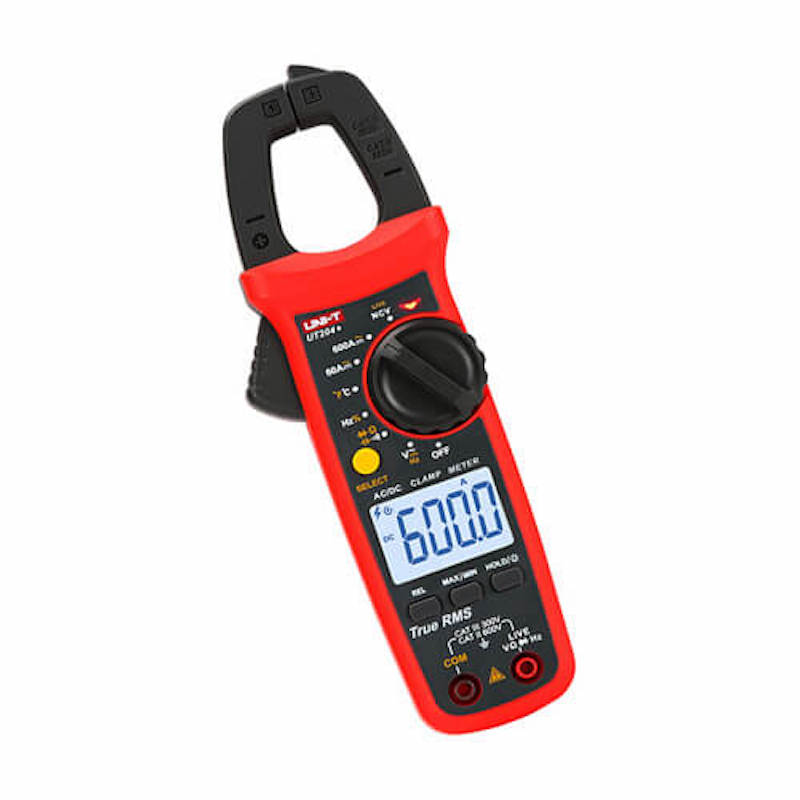

\n \n \n \n \n[caption id="attachment_32389" align="alignnone" width="640"] UNI T UT204+ Digital Clamp Meter AC DC 600A[/caption]

\n
• Digital AC/DC Clamp Meter
\n
• Model: UT204+
\n
• Brand: UNI-T
\n
• Made in China
