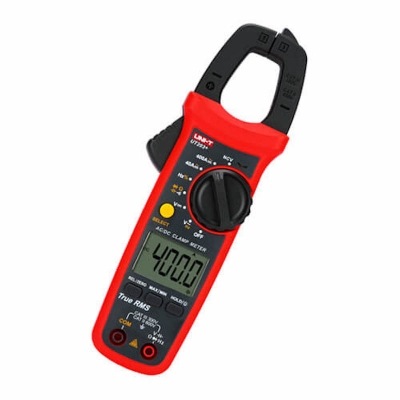

UT203+ digital clamp meter is designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. This meter can be used to measure high-voltage frequency, temperature, AC/DC current, etc. \n

Features of UT203+ Digital Clamp Meter

\n

\n
• True RMS
\n
• LCD backlight
\n
• Large screen and display digits
\n
• 60mF large capacitance measurement
\n
• Neutral/live wire test
\n
• Ideal for Industrial electricity, Residential electricity, Air conditioning, Automobile etc.
\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications	Range	UT203+
AC current (A)	400A	±(2.5%+5)
DC current (A)	400A	±(2.5%+5)
AC voltage (V)	600V	±(0.8%+5)
AC voltage frequency(Hz)	10Hz~60kHz	±(0.5%+2)
DC voltage (A)	600V	±(0.5%+2)
Resistance (Ω)	40MΩ	±(0.8%+2)
Capacitance (F)	40mF	±(4%+5)
Frequency (Hz)	10Hz~10MHz	±(0.1%+4)
Features
Display count		4000
Auto range		√
Jaw opening		28mm
True RMS		√
NCV		√
Continuity test		√
Diode		√
MAX/MIN		√
Relative mode		√
Zero mode		√
Data hold		√
Low battery indication		√
Auto power off		√
General Characteristics
Power	1.5V battery (R03) x 2
Display	37mm x 25mm
Product Color	Red and grey
Product net weight	235g
Product size	215mm x 63mm x 36mm
Standard individual packing	Gift box, Carrying bag, English manual
Standard quantity per carton	40pcs
Standard carton measurement	485mm x 295mm x 385mm
Standard carton gross weight	16.8kg

\n

\n
• Digital AC/DC Clamp Meter
\n
• Model: UT203+
\n
• Brand: UNI-T
\n
• Made in China
