UNI-T UT202+ Digital clamp meter 400-600A clamp meter UT200+ series automatic range true RMS high precision multimeter. AC/DC Voltage, AC Current measurement, Continuity buzzer, Diode, Resistance Test, MAX/MIN Data, REL, True RMS, Backlight, Frequency, Capacitance Test, Temperature Test. \n

Features of UT202+ Digital clamp meter

\n

\n
• Large screen LCD display, fast ADC / analog to digital converter
\n
• Full-featured false detection protection, overvoltage, and overcurrent alarm prompt
\n
• True RMS; voltage measurement 600V
\n
• With high voltage frequency measurement
\n
• AC current measurement function
\n
• With the current frequency measurement function
\n
• 60mF large capacitance measurement (UT202A+/UT204+)
\n
• Neutral/live wire test (UT202A+/UT204+)
\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications	Range	UT202+
AC current (A)	400A	± (2%+10)
	600A
AC current frequency (Hz)	50Hz~100Hz	± (1%+5)
DC current (A)	No
	No
AC voltage (V)	600V	± (0.8%+5)
AC voltage frequency (Hz)	10Hz~10kHz	± (1%+5)
	10Hz~60kHz
DC voltage (A)	600V	± (0.5%+2)
Resistance (Ω)	40MΩ	± (0.8%+2)
	60MΩ
Capacitance (F)	4mF	± (4%+5)
	40mF
	60mF
Temperature (℃)	-40℃~1000℃	± (1.5%+5)
Frequency (Hz)	10Hz~10MHz
Features
Display count		4000
Auto range		√
Jaw opening		28mm
True RMS		√
NCV		√
Live wire test
Continuity test		√
Diode		√
MAX/MIN		√
Relative mode		√
Zero mode
Data hold		√
Low battery indication		√
Auto power off		√
General Characteristics
Power	1.5V battery (R03) x 2
Display	37mm x 25mm
Product Color	Red and grey
Product net weight	248g
Product size	215mm x 63mm x 36mm
Standard accessories	Batteries, test leads, Thermocouple
Standard individual packing	Gift box, carrying bag, English manual
Standard quantity per carton	40pcs
Standard carton measurement	485mm x 295mm x 385mm
Standard carton gross weight	17.8kg

\n

Click to Know More Information

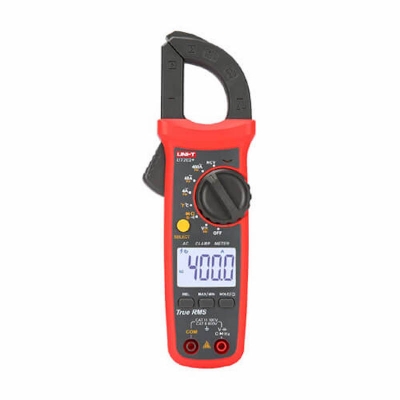

\n[caption id="attachment_36627" align="alignnone" width="750"] UNI T UT202+ Digital Clamp Meter 400 600A Automatic Range True RMS[/caption] \n

UT200+ series 400-600A Digital Clamp Meter

\nUT201+/UT202+/UT202A+/UT203+/UT204+ series is a stable, safe and reliable digital clamp meter. The circuit design is based on the large-scale integrated circuit double integral AC/ DC conversion, full-range overload protection circuit, unique the appearance design makes it a special instrument for electricians with superior performance. We have the largest stock of UNI-T brand instruments.

\n
• Digital Clamp Meter / Multimeter
\n
• Capacity: 400-600A
\n
• Model: UT202+
\n
• Brand: UNI-T, China
\n
