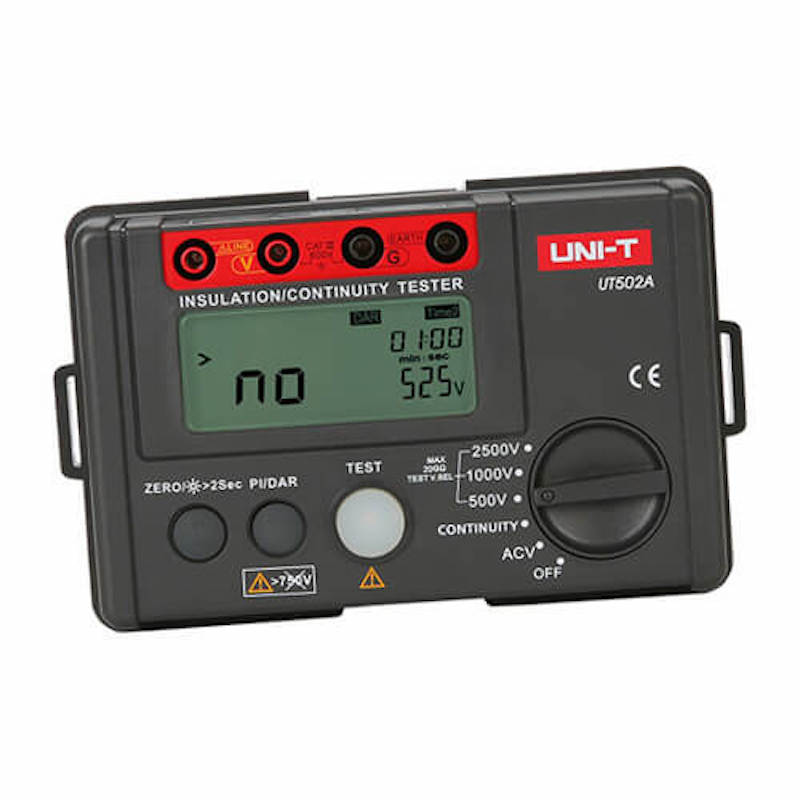

UT500 series Digital Megger Meter insulation testers measure the insulation resistance of electrical equipment and household appliances by measuring the insulation resistance between electrical circuits or between circuits and the ground. The UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high-voltage motors, capacitors, cables, arresters, and other electrical equipment can operate safely and accurately. \n \nUni-T Digital Megger Meter Insulation Tester UT502A 2500V AC Voltmeter Megohmmeter High Voltage / Overload Indicator LCD Backlight. \n

\n
• 2000-count LCD, overload indication, backlight
\n
• AC voltage measurement, auto power off
\n
• Auto discharge
\n
• Continuous low resistance measurement
\n
• Continuous measurements mode, red warning light, and buzzer function
\n
• PI and DAR measurement, auto resistivity calculation
\n
• Low resistance returning to zero function to improve accuracy
\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specifications	\n Range \n		Best Accuracy
Model			UT502A
Insulation Resistance (Ω)	Test Voltage	500V/1000V/2500V	0%~10%
	500V	0.00MΩ~99.9MΩ	±(3%+5)
		100MΩ~5.0GΩ	±(5%+5)
	1000V	0.00MΩ~99.9MΩ	±(3%+5)
		100MΩ~5.0GΩ	±(5%+5)
	2500V	0.00MΩ~99.9MΩ	±(3%+5)
		100MΩ~9.9GΩ	±(5%+5)
		10.0GΩ~20.0GΩ	±(10%+5)
	Load Current	50V (R=50kΩ) 1mA	0%~10%
		100V (R=100kΩ) 1mA	0%~10%
		250V (R=250kΩ) 1mA	0%~10%
		500V (R=500kΩ) 1mA	0%~10%
		1000V (R=1MΩ) 1mA	0%~10%
		2500V (R=1MΩ) 1mA	0%~10%
	Short Circuit Current		<2mA
Low Resistance (Ω)	0.01Ω~200Ω (about 5.0V/>200mA)		±(2%+3)
AC Voltage (V)	30V~600V		±(2%+3)
\n Features \n
Display Count			2000
DAR	60s/15s and 60s/30s		√
PI			√
Auto Range			√
Low Battery Indication			√
LCD Backlight			√
Alarm Light Display			√
Alarm Buzzer			√
High Voltage Indication			√
Over Load Indication			√
Auto Discharge			√
Test Voltage Vice Display			√
10MΩ Internal Resistance Test			√

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

\n General Characteristics  \n
Power	1.5V Batteries (LR6) × 6
LCD Size	70.6mm x 34mm
Product Color	Red and Grey
Product Net Weight	500g
Product Size	150mm x 100mm x 71mm
Standard Accessories	Probe, Alligator Clip, Test Lead, Gallus
Standard Carton Measurement	500mm × 380mm × 330mm (0.063 CBM Per Standard Carton)

\n

\n
• Digital Insulation Tester
\n
• Voltage Range: 2500V
\n
• Model: UT502A
\n
• Brand: UNI-T
\n
• Made in China
