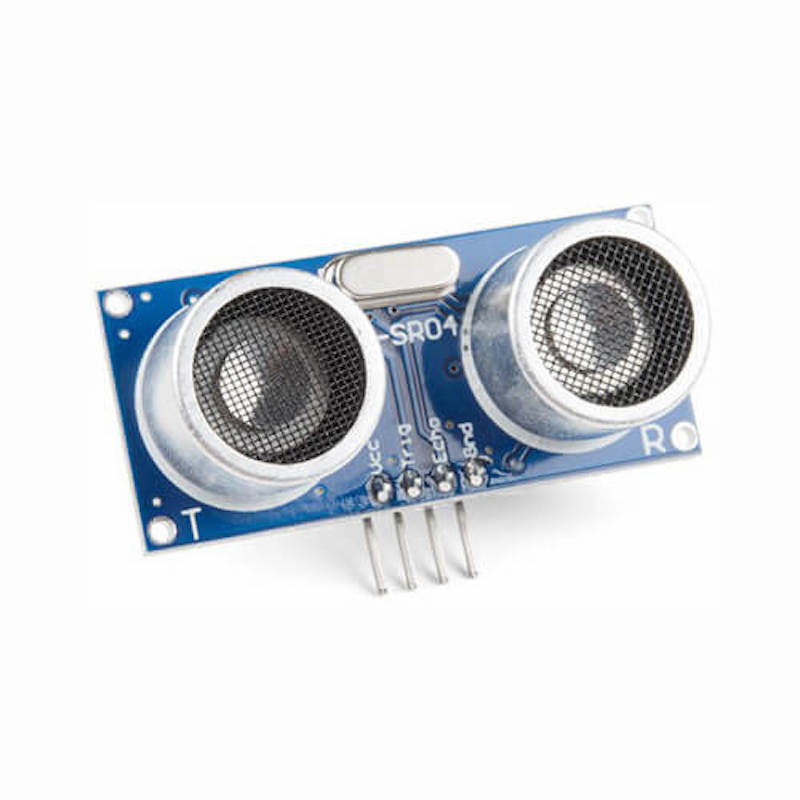

Ultrasonic Sonar Sensor HC- SR04

Category: Industrial & Others
SKU: LTBD52223
Seller: Labtex Bangladesh
App Coupon to Get Extra Discount
Tk 160
0 review(s)
    \n
  • Sonar Sensor (HC-SR04)
    • \n
  • Operating Voltage: 5 V
    • \n
  • Sonar Sensing Range: 2-400 cm
    • \n
  • Max. Sensing Range: 450 cm
    • \n
  • Frequency: 40 kHz
    • \n
*

Call For Order : 09613-800800
HCSR04 is an Ultrasonic Sonar Sensor module that consists of a transmitter, receiver, and control circuit. It has four pins for VCC, GND, Trigger, and Echo. You can easily interface it with microcontrollers and Arduino boards. \n \nThe basic principle of work is: \n
    \n
  1. Using IO trigger for at least 10us high-level signal
    2. \n
  2. The Module automatically sends eight 40 kHz and detects whether there are pulse signals back.
    3. \n
  3. If the signal is back, through a high level, the time of high output IO duration is the time from sending ultrasonic to returning.
    4. \n
  4. Test distance = (high level time×velocity of sound (340M/S) / 2
    5. \n
\n

Specifications

\n
    \n
  • Working Voltage DC 5 V
    • \n
  • Working Current 15mA
    • \n
  • Working Frequency 40Hz
    • \n
  • Max Range 4m
    • \n
  • Min Range 2cm
    • \n
  • Measuring Angle 15 degree
    • \n
  • Trigger Input Signal 10uS TTL pulse
    • \n
  • Echo Output Signal Input TTL lever signal and the range in proportion
    • \n
  • Dimension 45x20x15mm
    • \n





    \n
  • Sonar Sensor (HC-SR04)
    • \n
  • Operating Voltage: 5 V
    • \n
  • Sonar Sensing Range: 2-400 cm
    • \n
  • Max. Sensing Range: 450 cm
    • \n
  • Frequency: 40 kHz
    • \n
