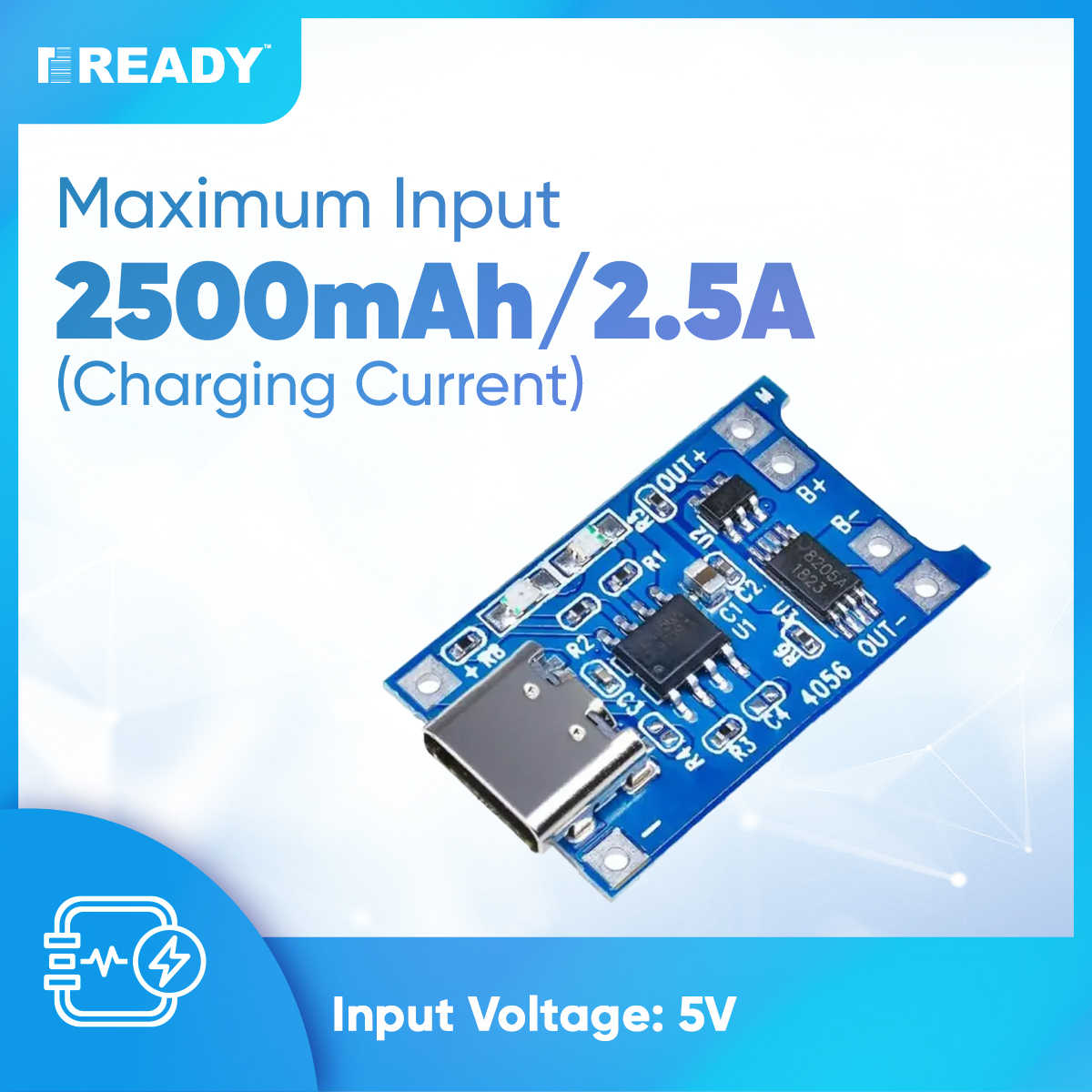

Picture of TP4056 Dual Protection Lithium/Lithium-ion Battery Charging Module (Type C USB Input) - Input Voltage: 5V - Input Interface: Type C USB
Picture of TP4056 Dual Protection Lithium/Lithium-ion Battery Charging Module (Type C USB Input) - Input Voltage: 5V - Input Interface: Type C USB

TP4056 Dual Protection Lithium/Lithium-ion Battery Charging Module (Type C USB Input) - Input Voltage: 5V - Input Interface: Type C USB

Category:
SKU: RDE01811
Seller: READY ELECTRONICS
Tk 38
Tk 120
Tk 120
68% OFF
0 review(s)
  • Input Voltage: 5V
  • Maximum Charging Input Current: 2500 mAh/ 2.5A
  • Charge Cut-off Voltage: 4.2 V +/- 1%
  • Battery Overcharge Protection Voltage: 4.28 V
  • Battery Discharge Protection Voltage: 3.0 V
  • Battery Discharge Termination Voltage: 3.2 V
  • Battery Over-Current Protection Current: 3 A
  • Input Interface: Type C USB
  • Dimension: 2.6 x 1.7 cm
  • Quantity: 1 piece

Call For Order : 09613-800800

  • Dual Protection: This battery charging module features dual protection mechanisms to ensure safe and efficient charging of lithium-ion batteries.

  • High Charging Input: With a maximum charging input current of 2500 mAh (2.5A), this module is capable of charging your batteries quickly and efficiently.

  • Voltage Control: The module has built-in voltage control functions to prevent overcharging and over-discharging of the battery, which helps prolong the battery's lifespan.

  • Over-Current Protection: To ensure safety during the charging process, the module is equipped with over-current protection to prevent excessive current flow.

  • Type C USB Input: The module is designed with a Type C USB input interface, allowing you to connect it to various power sources such as chargers, power banks, laptops, and more.

  • Compact Design: With dimensions of 2.6 x 1.7 cm, this module is compact and easy to integrate into various electronic projects.

    • Applications:

    • Battery Charging: Ideal for safely and efficiently charging lithium-ion batteries.

    • DIY Projects: Suitable for DIY electronics projects involving battery-powered devices.

    • Portable Devices: Use it to charge batteries for portable devices like flashlights, gadgets, and more.

    • Power Banks: Can be used to charge power bank batteries for extended usage.

    • Electronics Experiments: Great for experimenting with battery charging and protection mechanisms.

    Safe and Efficient: The TP4056 Dual Protection Battery Charging Module offers a safe and reliable solution for charging lithium-ion batteries while protecting them from overcharging, over-discharging, and over-current conditions. Its compact size and versatile input options make it a valuable component for various electronic applications.






  • Input Voltage: 5V
  • Maximum Charging Input Current: 2500 mAh/ 2.5A
  • Charge Cut-off Voltage: 4.2 V +/- 1%
  • Battery Overcharge Protection Voltage: 4.28 V
  • Battery Discharge Protection Voltage: 3.0 V
  • Battery Discharge Termination Voltage: 3.2 V
  • Battery Over-Current Protection Current: 3 A
  • Input Interface: Type C USB
  • Dimension: 2.6 x 1.7 cm
  • Quantity: 1 piece
