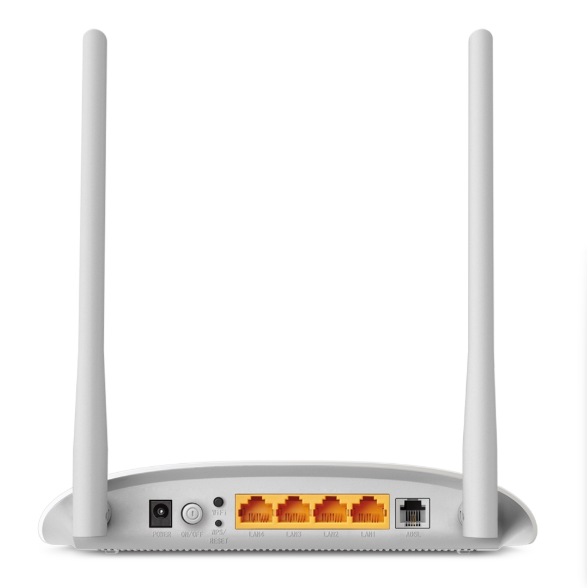

Interface 4 10/100Mbps RJ45 Ports

1 RJ11 Port

Button 1 Power On/Off Switch

1 WPS Button

1 Wi-Fi On/Off Button

External Power Supply 9VDC/0.6A

IEEE Standards IEEE 802.3, 802.3u

ADSL Standards Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite)

ITU-T G.994.1 (G.hs),

ITU-T G.995.1

ADSL2 Standards ITU-T G.992.3 (G.dmt.bis),

ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards ITU-T G.992.5

Dimensions ( W x D x H ) 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )

Antenna Omni directional, Fixed

Antenna Gain 2x5dBi

WIRELESS FEATURES

Wireless Standards IEEE 802.11n, 802.11g, 802.11b

Frequency 2.400-2.4835GHz

Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,

Wireless MAC Filtering

Transmission Power <20dBm(EIRP)

SOFTWARE FEATURES

Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p

Advanced Features Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;

Dynamic Host Configuration Protocol (DHCP), DHCP relay;

Network Address Translation (NAT);

PVC/Ethernet Port Mapping

VLAN, 802.1P,

Static Routing,

DNS Relay, DDNS,

IGMP snooping V1/2

IGMP Multicast,

UPnP

Security NAT Firewall,

SPI Firewall,

MAC / IP / Packet / Application / URL Filtering,

Denial of Service(DoS),

SYN Flooding,

Ping of Death

Management Features Web Based Configuration(HTTP),

Remote management,

Telnet management,

SSL for TR-069,

SNMP v1/2c,

SNMP over EOC,

Web Based Firmware Upgrade,

CWMP(TR-069),

Diagnostic Tools

Port Forwarding Virtual Server, DMZ, ACL(Access Control List)

VPN Pass-Through PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols ATM Forum UNI3.1/4.0,

PPP over ATM (RFC 2364),

PPP over Ethernet (RFC2516),

IPoA (RFC1577/2225),

PVC - Up to 8 PVCs

OTHERS

Certification CE, FCC, RoHS

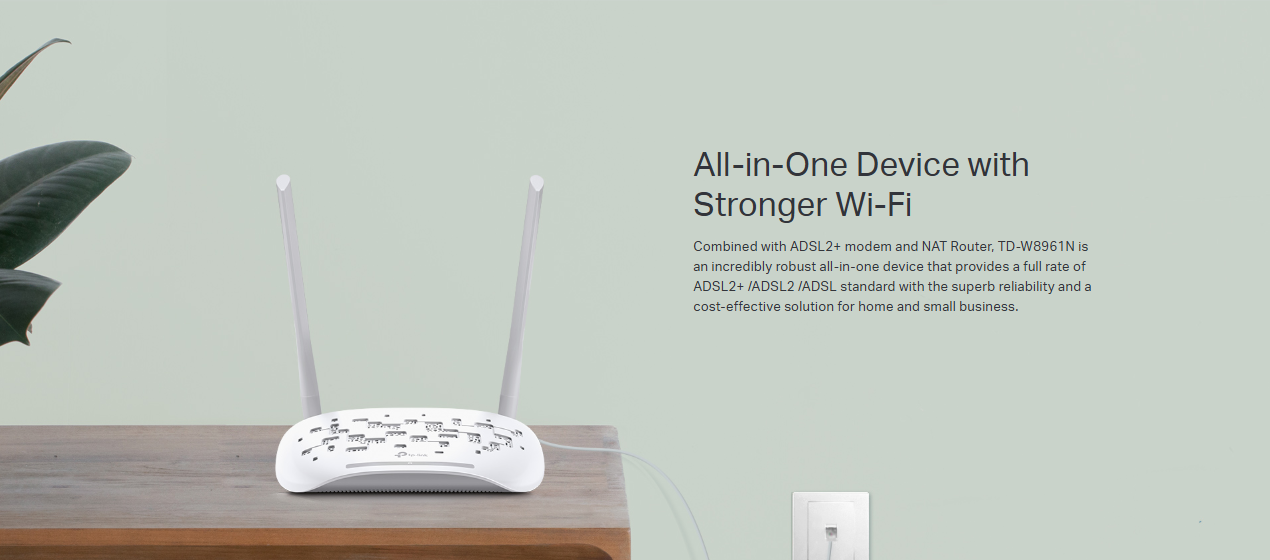

Package Content TD-W8961N

External Splitter

RJ-11 Telephone Cable

RJ-45 Ethernet Cable

Quick Installation Guide

Power Adapter

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ ，Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.
