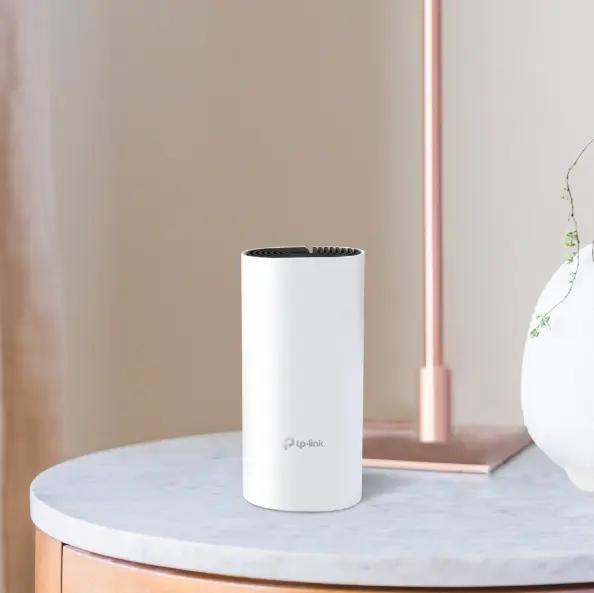

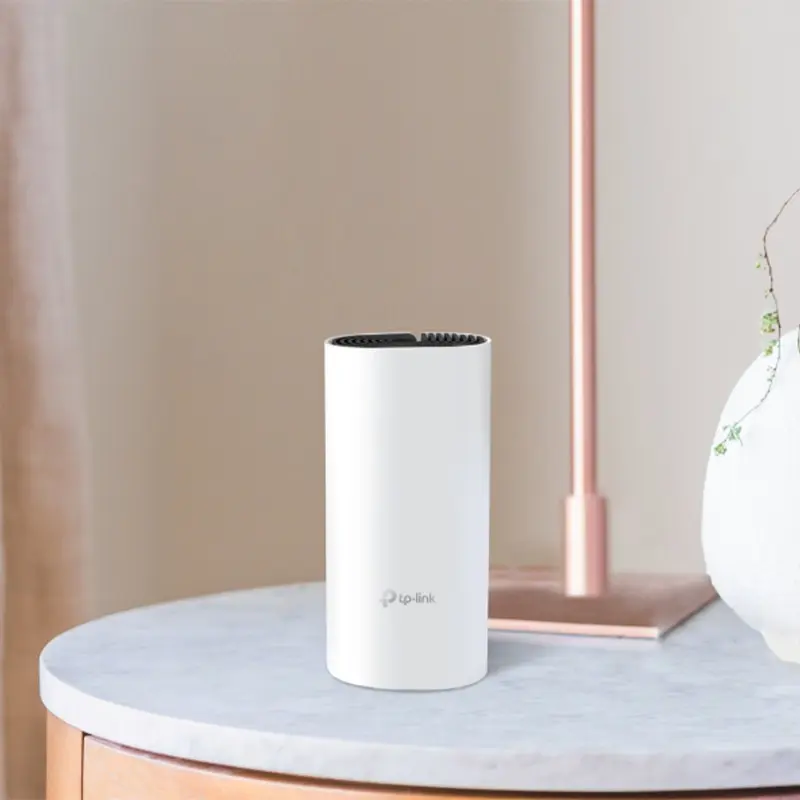

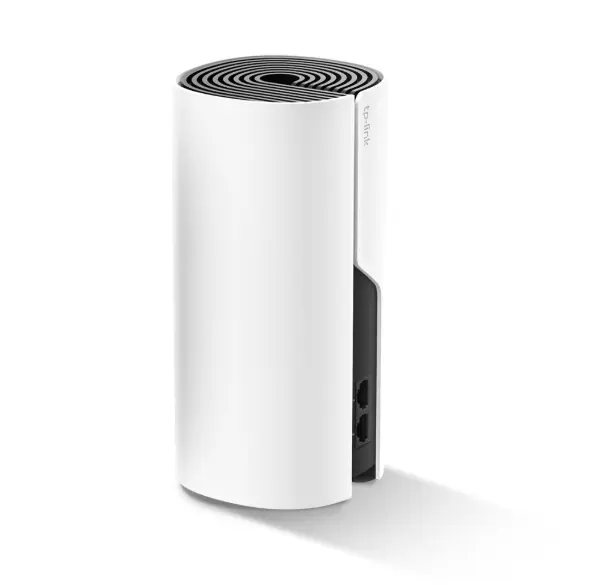

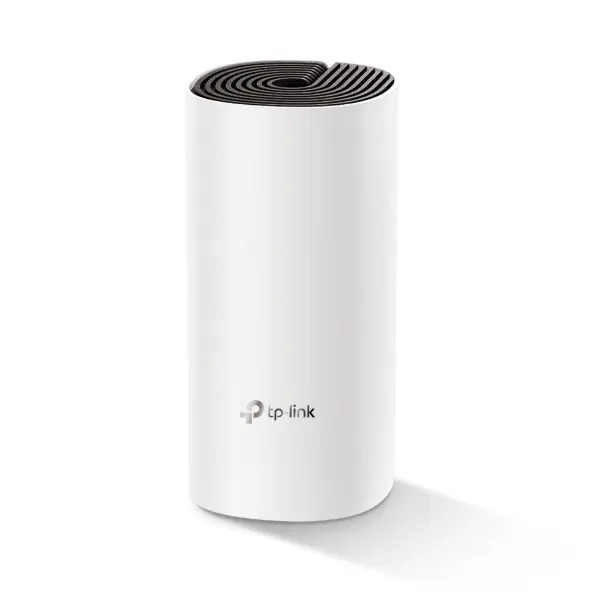

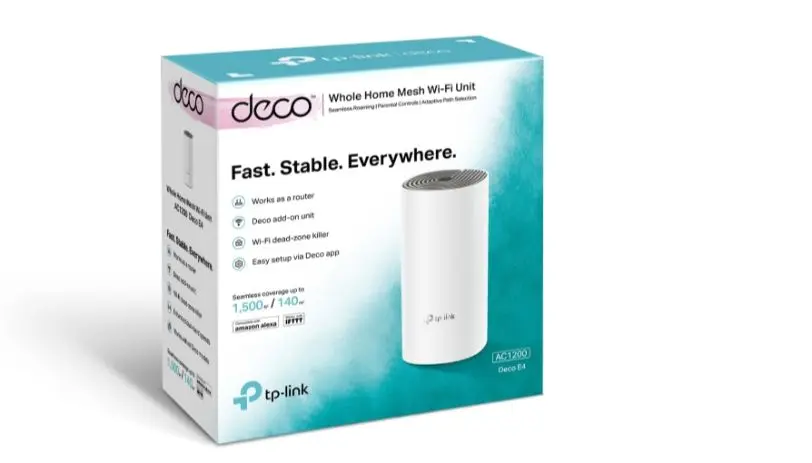

TP-Link Deco E4 AC1200 Router Whole Home Mesh Wi-Fi System 1 Pack

WIRELESS

Standards and Protocols Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 3-4 Bedroom Houses (3-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2× Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Distribute devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes Router Mode

Access Point Mode

SECURITY

Network Security SPI Firewall

Access Control

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption WPA-Personal

WPA2-Personal

HARDWARE

Ethernet Ports 2× 10/100 Mbps Ports

*Per Deco Unit

Supports WAN/LAN auto-sensing

Buttons Reset Button

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

Management Features Deco App

OTHER

Network Services Enabled by Default Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DNS

DNS

• Port: 53   Protocol: TCP & UDP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

App management

Manage and configure device through app

• Port: 22   Protocol: TCP

• Port: 20001   Protocol: TCP

• Port: 30001   Protocol: TCP

• Port: 20002   Protocol: UDP

TEST DATA

WiFi Transmission Power CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm

PHYSICAL

Dimensions (W×D×H) 3.6 × 3.6 × 7.5 in

(90.7 × 90.7 × 190 mm)

Package Content Deco E4 (3-pack)

3 Deco E4R Units

1 RJ45 Ethernet Cable

3 Power Adapters

1 Quick Installation Guide

Deco E4 (2-pack)

2 Deco E4R Units

1 RJ45 Ethernet Cable

2 Power Adapters

1 Quick Installation Guide

Deco E4 (1-pack)

1 Deco E4R Unit

1 RJ45 Ethernet Cable

1 Power Adapter

1 Quick Installation Guide

OTHERS

System Requirements Android 5.0 or later

iOS 9.0 or later

*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
