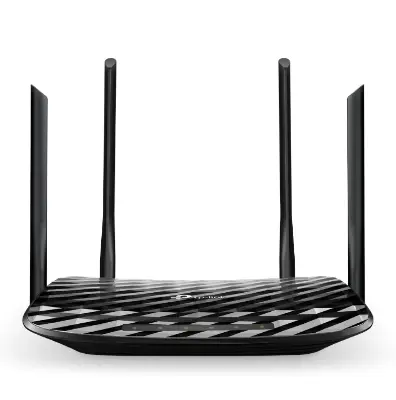

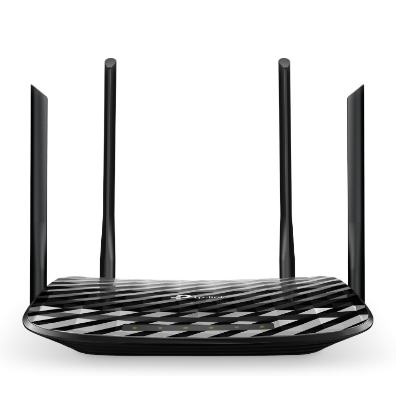

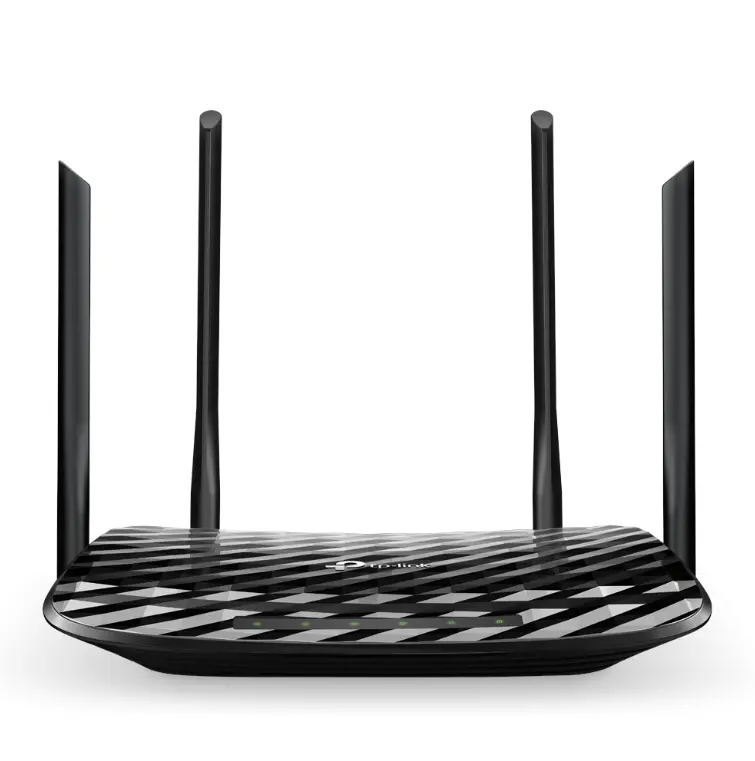

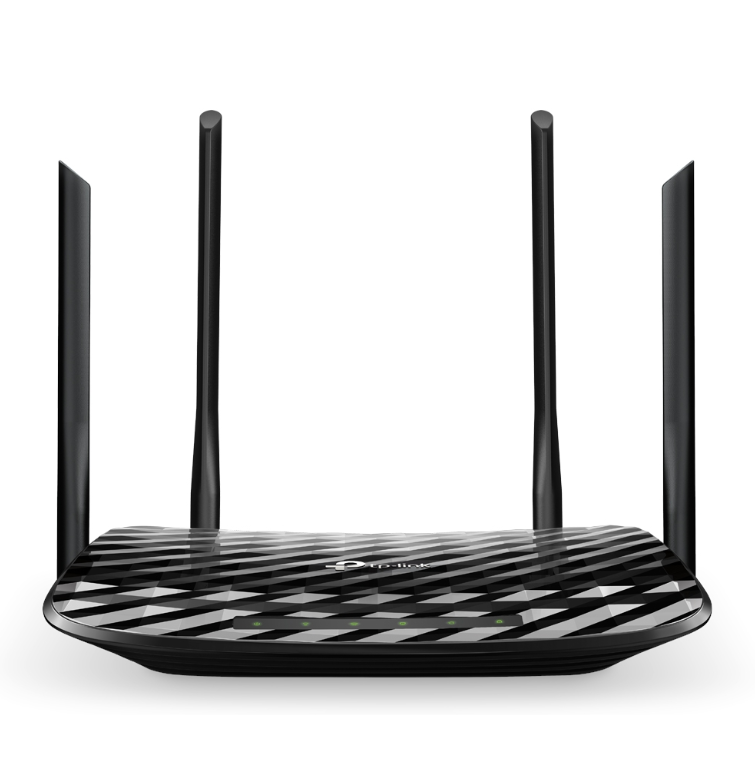

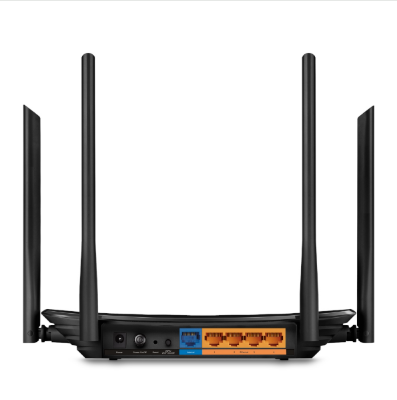

TP-Link Archer C6 V2 AC1200 Wireless MU-MIMO Gigabit Router

• Supports 802.11ac standard
• Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
• 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
• Easy network management at your fingertips with TP-Link Tether
• MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
• Supports Access Point mode to create a new Wi-Fi access point

Standards and Protocols Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes Router Mode

Access Point Mode

SECURITY

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

WiFi Encryption EU Version:

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

US, TW Version:

WPA

WPA2

WPA3

HARDWARE

Processor Qualcomm CPU

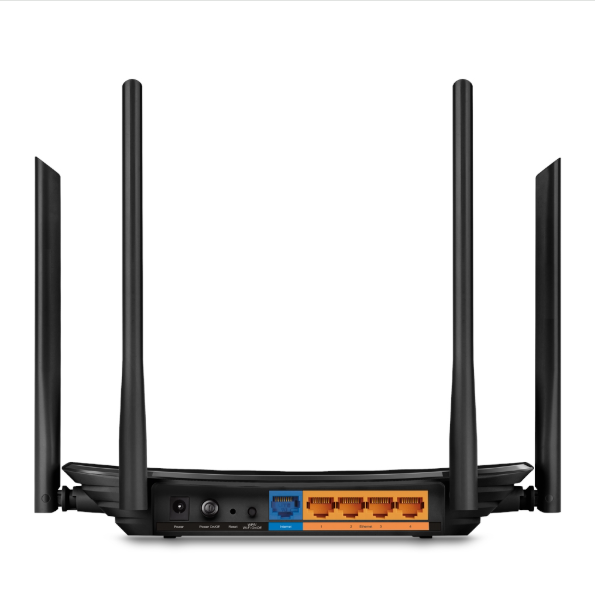

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports

Buttons WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Power 12 V ⎓ 1 A

SOFTWARE

Protocols IPv4

IPv6

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

NAT Forwarding Virtual Servers

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS NO-IP

DynDNS

Management Features Tether App

Webpage

Check Web Emulator>

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE EIRP:

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC:

<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity 5GHz:

11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；

11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;

11ac HT80 mcs9:-62dBm;

2.4GHz:

11g 54Mbps:-78dBm;

11n HT20 mcs7:-74dBm;

11n HT40 mcs7:-71dbm；

PHYSICAL

Dimensions (W×D×H) 9.1 × 5.7 × 1.4 in

(230 × 144 × 35 mm)

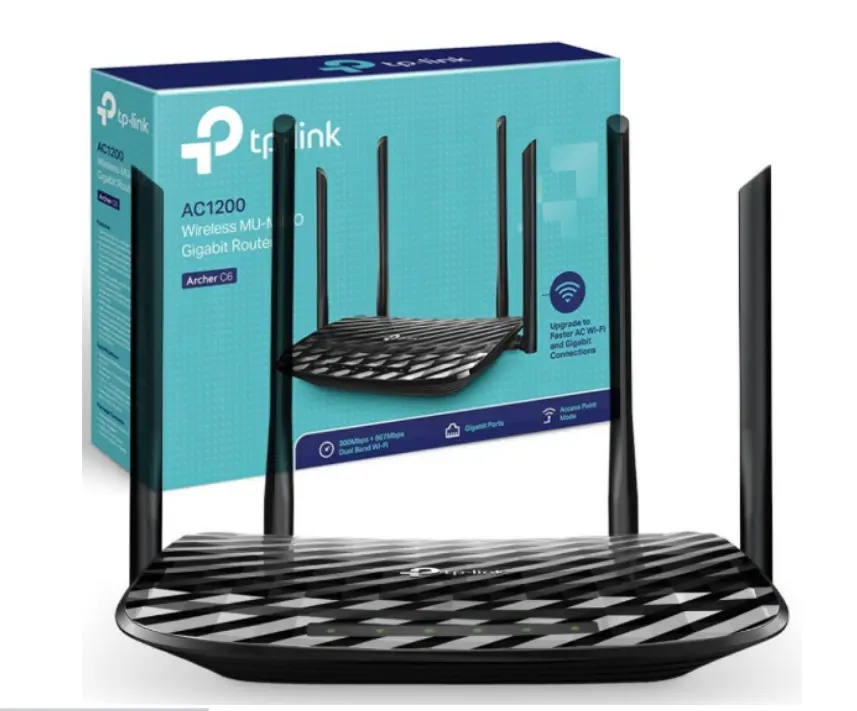

Package Content Wi-Fi Router Archer C6

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
