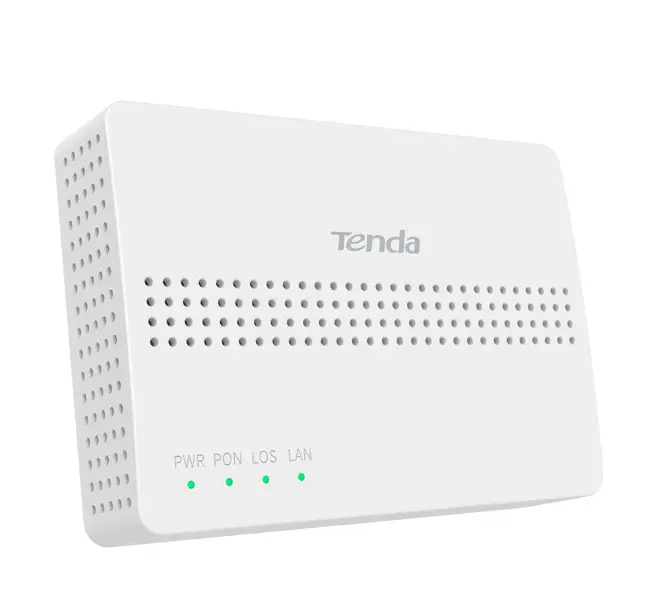

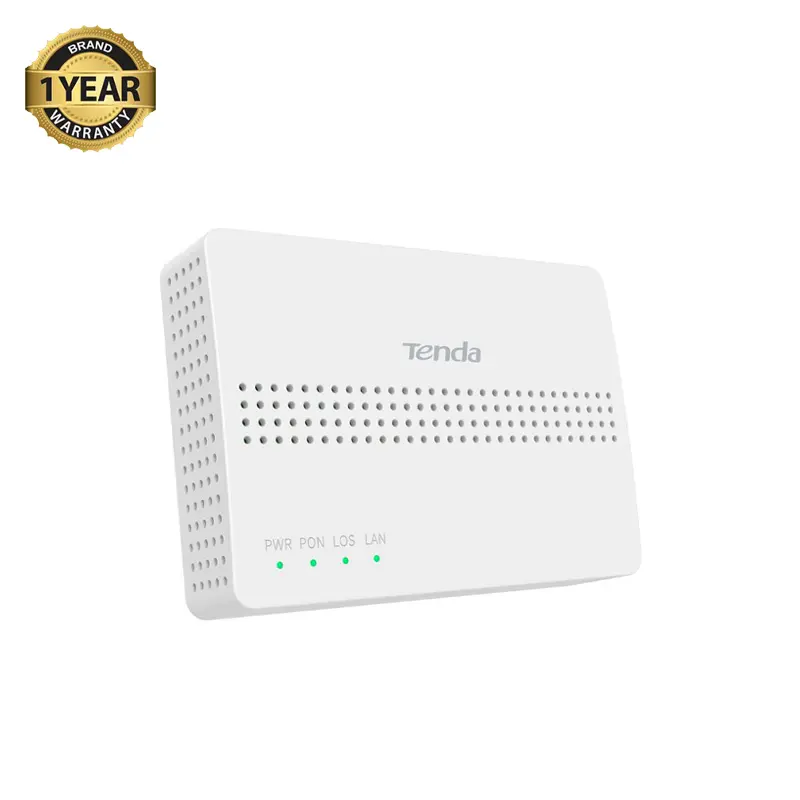

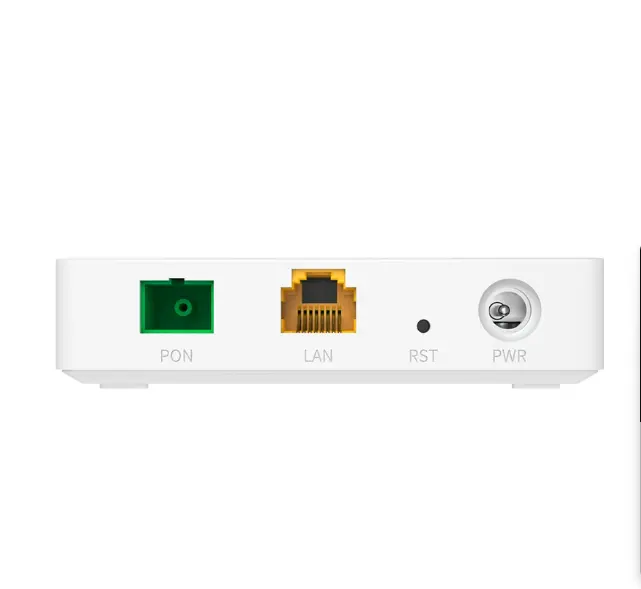

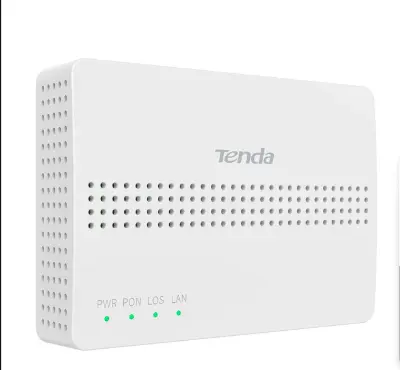

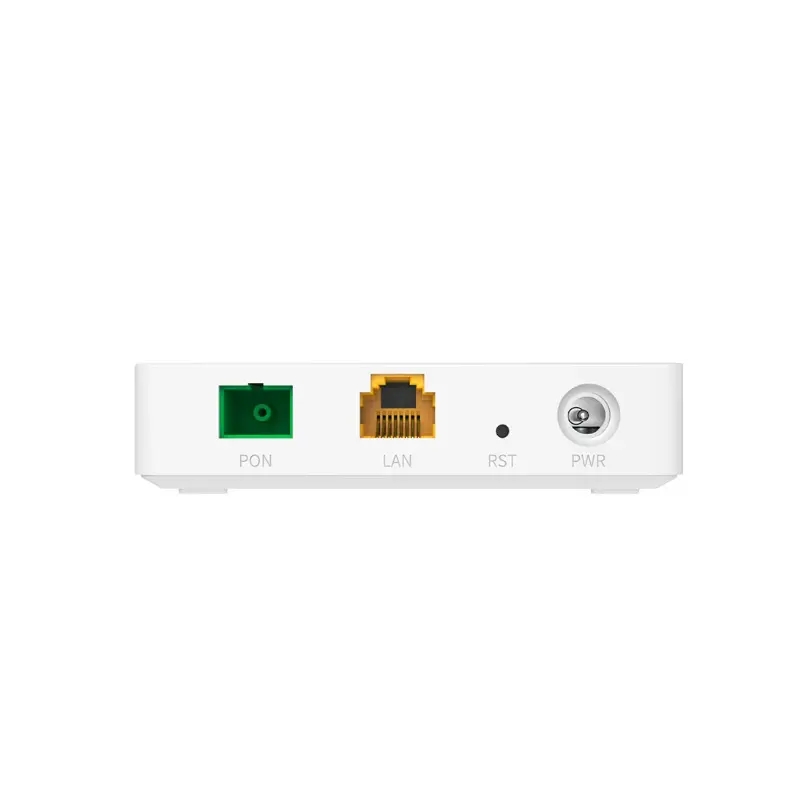

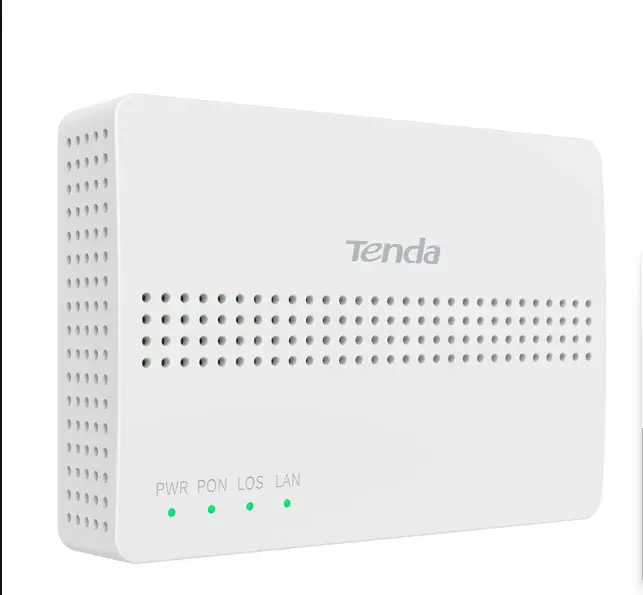

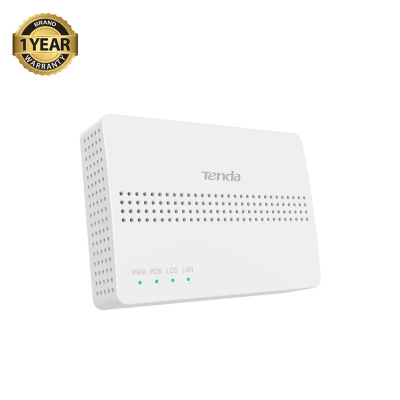

Tenda HG1 Single Port XPON Optical Network Terminal (ONU)

 Tenda HG1 Optical Network Unit (ONU) In Bangladesh

Brand - Tenda, Model - Tenda HG1, PON Type - XPON, PON Interface - 1 x SC/APC XPON, PON Port Connector Type - Unmentioned, PON Port Speed - Upstream rate up to 1.25Gbps/ Downstream rate up to 2.5Gbps, PON Port Interface Type - SC/APC, PON Port Transmission Distance - 20KM, PON Port Wavelength - Tx 1310nm, Rx 1490nm, PON Port TX Power - 0.5 - 5dBm, PON Port Rx Sensitivity - -28 to -8dBm, Ethernet Interface - 1 x 1000Mbps RJ45 LAN, Data Transmission Ethernet - 1000 Mbps, Network Management - OMCI, OAM, Power Supply - DC 9V /0.6A, Approx. Power Consumption - <-5.4w, Operating Temperature - 0 Degree C to 45 Degree C, Operating Humidity - 10% - 90% (Non-condensing), Storage Temperature - -40 Degree C to 70 Degree C, Storage Humidity - 5% - 90% (Non-condensing), Dimension - 59 x 57 x 23mm, Features - Package Contents: 1 x HG1, 1 x Power adapter, 1 x Quick install guide, Certification: CE, FCC, RoHS, Anatel, Specialty - Compliant with ITU-T G.984 standard. Upstream rate up to 1.25Gbps, downstream rate up to 2.5Gbps and transmission distance up to 20Km. Extensive compatibility with lots of OLT brands worldwide. Supports for OMCI and OAM remote management. Supports routing mode and bridge mode access. Supports both IPV6 and IPV4/IPV6 dual stacks Gigabit LAN port is provided to ensure ultra-high speed data transmission. Local Web management and optical power monitors., Others - PON Standards: ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4, Interfaces: 1 x SC/APC XPON Port, 1 x 1000Mbps RJ45 LAN Port, 1 x DC Port, Button: 1 RESET Button, Optical Mode: Class B+, DHCP Server: Server, Client, DHCP Client List, Address Reservation, DHCP Relay, WAN Connection: PPPoE , Dynamic IP, Static IP, Bridge, Business Type: Internet, IP Version: IPv4, IPv6, Services: DHCP, Dynamic DNS, Firewall: ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ, IPv6: Radvd, DHCPv6, MLD Proxy, MLD Snooping, Diagnostics: Ping, Ping6, Tracert, Tracert6, Warranty - 1 Year (Adapter No Warranty), Country of Origin - China, Made in/ Assemble - China
