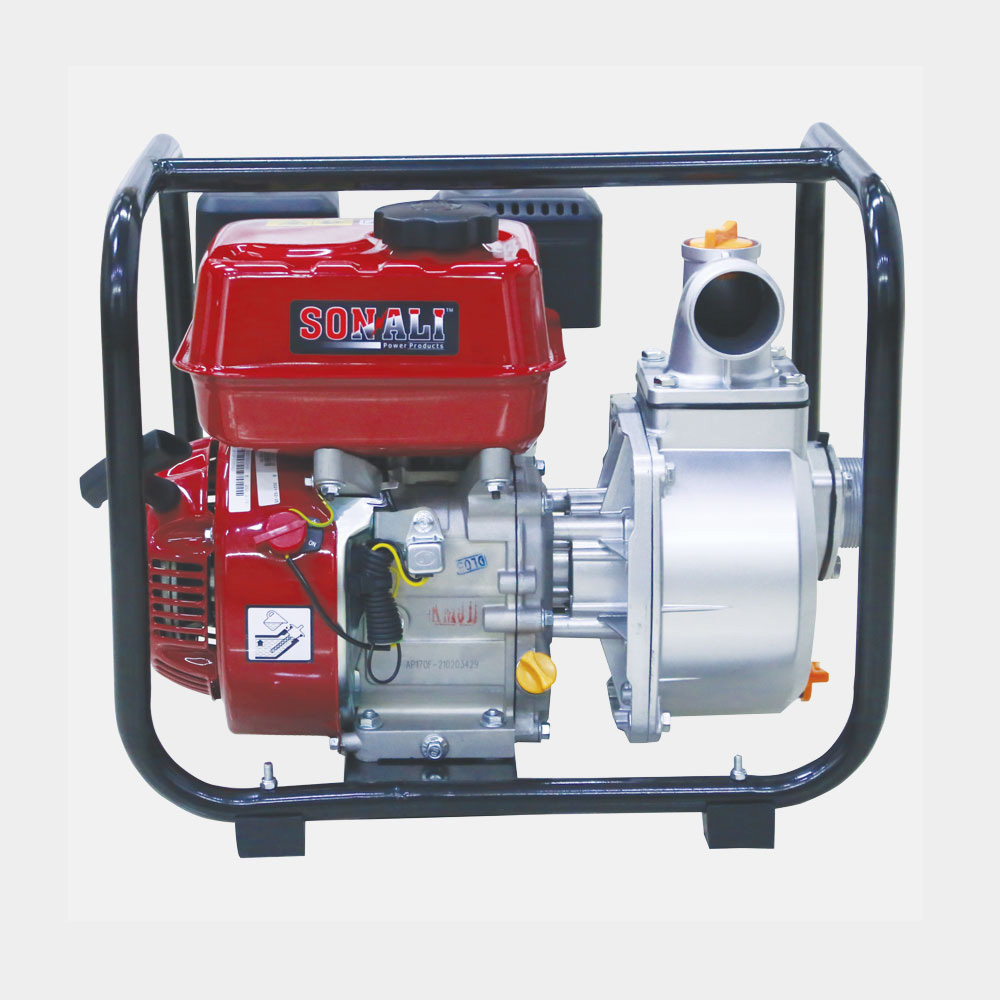

Water Pump

COUNTRY OF ORIGIN

China

BRAND

Sonali

MODEL

SPL30RS-DF

CONNECTION DIA

80mm (3’’)

CONNECTION THREAD

Outer Pipe Thread BSP

TOTAL HEAD

28 m (92.4 ft)

MAX VOLUME OF FLOW

53M3/h (883 Ltr/m)

MAX. SUCTION LIFT

7m (23.1 ft)

Engine

ENGINE MODEL

170F

ENGINE TYPE

Forced Air-cooled 4 stroke DF Engine

EXHAUST VOLUME

208cc

MAX OUTPUT

4.8 Kw(6.5hp)/3600rpm

ENGINE OIL CAPACITY

0.6L

FUEL TANK CAPACITY

3.6L (0.95 USG)

CONTINUOUS OPERATING TIME

Approx.3.6 hrs

STARTING METHOD

Recoil

STANDARD ACCESSORIES

1 Strainer, 3 Hose Bands,1 Engine tool Set

Dimension & Weight

GROSS WEIGHT

27kg

DIMENSIONS LXWXH (MM)

520x420x480
