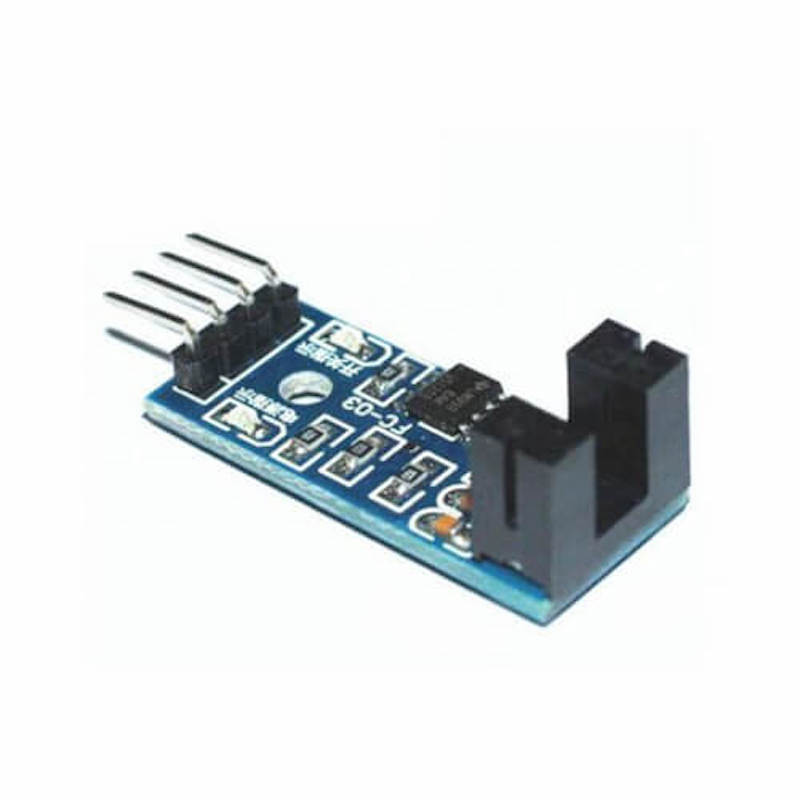

The Speed Detecting Sensor Groove Coupler Module is a device used to measure the rotational speed of a shaft or axle. It is typically used in combination with an Arduino microcontroller to provide an accurate measurement of speed. The module consists of a sensor, typically a photo-interrupter or a Hall Effect sensor, that is mounted in a coupler, which fits over the shaft or axle to be measured. As the shaft rotates, the sensor detects changes in the light or magnetic field and generates a signal that can be used to calculate the speed of the shaft. This information can then be used in a variety of applications, such as motor control, robotics, or data logging. The Groove Coupler Module is an easy-to-use and affordable solution for measuring rotational speed, making it a popular choice for hobbyists and educational projects. \n \nProduct Images are shown for illustrative purposes only and may differ from the actual product. \n

Feature of Smart Speed Detecting Sensor:

\n

\n
• Using imported groove optical coupling sensor, width 5mm.
\n
• It has the output state light, if the output is high level, the lights are off. if the output is low level, it is on.
\n
• If it is covered, it will output a high level; otherwise, it output a low level.
\n
• Good signal and waveform, with a strong driving ability for more than 15mA.
\n
• Equipped with a fixed bolt hole, easy to install.
\n
• Use the LM393 wide voltage comparer.
\n
• The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder detection.
\n
• DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose an alarm.
\n

\n

Applications of Smart Speed Detecting Sensor:

\n

\n
• Motor control: Can be used to monitor and control the speed of motors in applications such as robots, automation systems, or hobby projects.
\n
• Data logging: Can be used to measure and record rotational speed data for analysis and monitoring.
\n
• Robotics: Can be used to measure and control the speed of robotic actuators and to provide feedback for closed-loop control.
\n
• Machine control: Can be used in industrial applications to measure and monitor the speed of machinery for process control and maintenance purposes.
\n
• Education: Can be used in educational projects to demonstrate the principles of rotational speed measurement and control.
\n

\n

Wiring Specification :

\n

\n
• VCC: The positive 3.3-5 v power supply.
\n
• GND: Connect power negatively.
\n
• DO TTL switch signal output.
\n
• AO: This is an analog output.
\n

\n

General Specification

\n

\n
• Operating Voltage (VDC) 3.3 ~ 5
\n
• Length (mm) 32
\n
• Width (mm) 14
\n
• Height (mm) 13
\n
• Weight (gm) 2
\n
• Shipment Weight 0.005 kg
\n
• Shipment Dimensions 5 × 4 × 3 cm
\n

\nDocumentation: \n

\n
• Power supply voltage: Ensure that the module is powered within the specified voltage range to avoid damage.
\n
• Shaft size: Ensure that the module is used with a shaft of the correct size to ensure proper coupling and accurate measurement.
\n
• Interference: Be aware of other devices that may cause electromagnetic interference and avoid operating the module near such devices.
\n
• Installation: Ensure that the module is properly installed and tightened to prevent slippage or damage to the sensor or shaft.
\n
• Environmental conditions: Ensure that the module is used within its specified operating temperature range and protected from moisture or other environmental conditions that may cause damage or affect performance.
\n

\nPackage Includes: \n

\n
• 1 x Smart Speed Detecting Sensor for Arduino
\n

\n
• Bases at CSR BC04 Bluetooth technology.
\n
• With build-in 2.4GHz PCB antenna
\n
• It’s at the Bluetooth class 2 power level.
\n
• Range test: 10 meters
\n
• Operating voltage: 3.3V to 6V DC
\n
• The operating currently in pairing is in the range of 30~40mA.
\n
