• 100% brand new and high-quality
\n
• A reliable circuit system ensures high stability and accuracy
\n
• This device is easy to use due to vertical panel integration
\n
• The frequency range 10hz-1mhz is optional on the signal generator panel
\n
• This generator has characteristics of a sine wave and an effective frequency response
\n
• It's the instant for electronic engineering, laboratories, production lines, teaching, and scientific research. It can also be used as a supporting module for industrial equipment.
\n

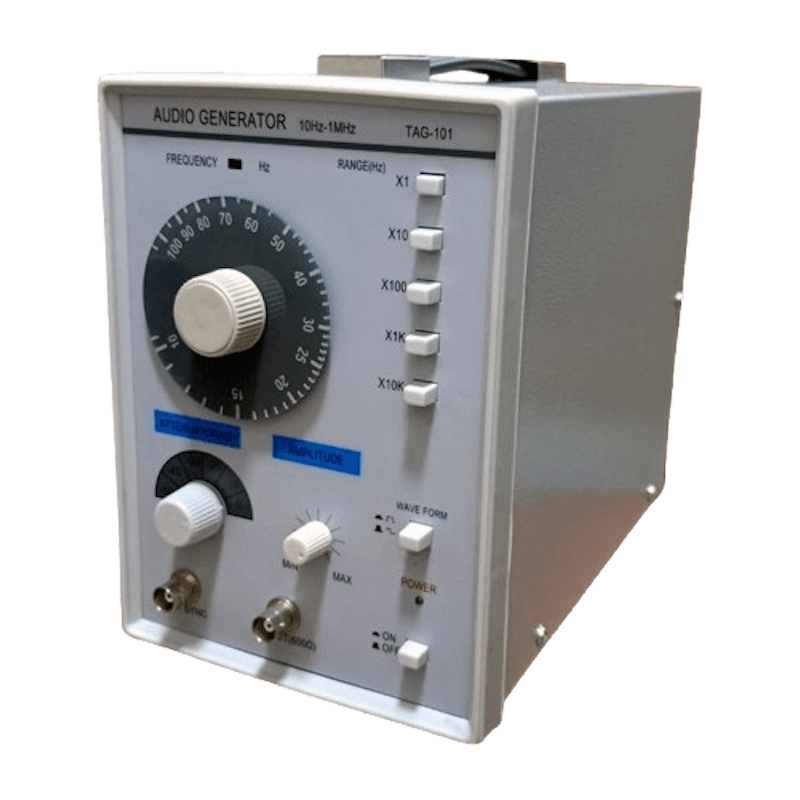

Specification of Signal Generator TAG101:

\n
• Condition: 100% Brand New
\n
• Item Type: Audio Generator
\n
• Frequency Range: 10Hz to 1MHz, 5 Measuring Ranges
\n
• Accuracy: ±5% of full scale
\n
• Output Impedance: 600Ω
\n
• Output Control: 0dB, -10dB, -20dB, -30dB, -40dB, -50dB fine adjustment.
\n
• Sine Wave Output:
\n
• Output Voltage: 5-6V RMS
\n
• Distortion:
\n
• 500Hz-50kHz, no more than 0.05%
\n
• 50Hz-500kHz, no more than 0.5%
\n
• Output Smoothness: Take 1 for reference, ±1.5dB
\n
• Square Wave Output: Range: 10Hz-1MHz
\n
• Output Level: 10V Peak Value
\n
• Rise: 0.5μs
\n
• Synchronization Performance: Range: 1V voltage per output can change the oscillation frequency by 1%
\n
• Input Impedance: 10KΩ
\n
• Power Supply: 220V (50/60Hz), 8W
\n
• Plug: EU Plug
\n
• Made in China
\n
• This is not a Function Generator
\n
•
\n

\n
• High Accuracy Signal Generator
\n
• Low-Frequency Function Generator
\n
• Digital Audio Generator
\n
• Model: TAG-101
\n
• Made in China
