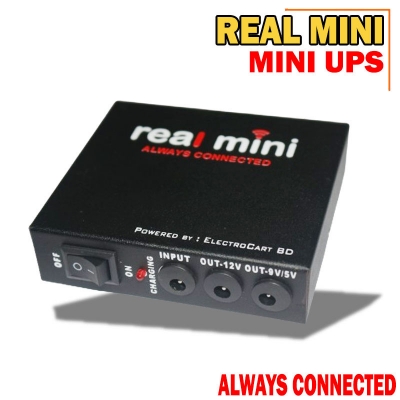

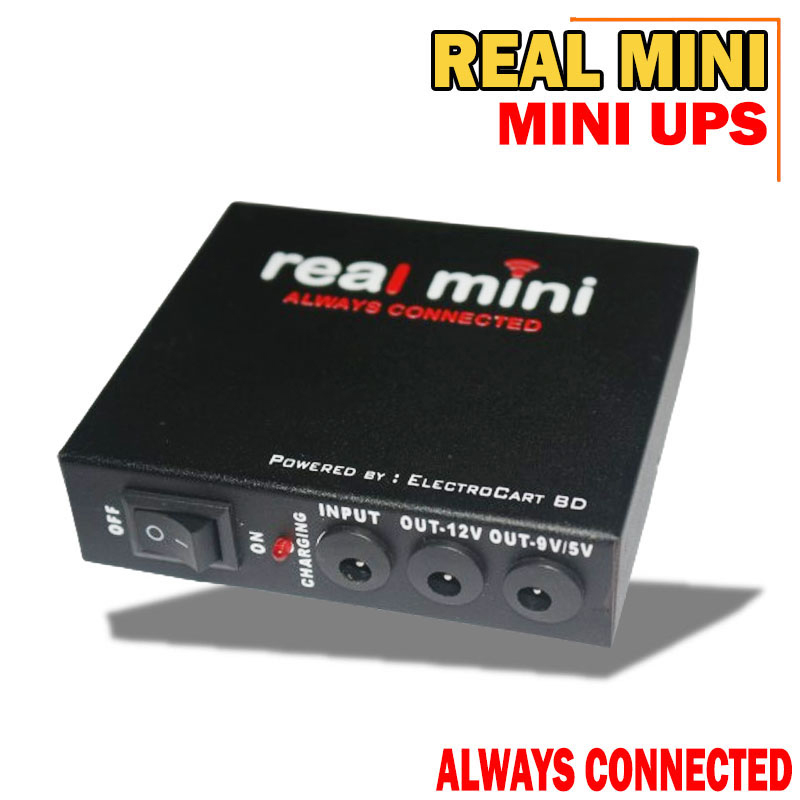

Real Mini UPS 8800 mAh DC UPS for Router, Onu, CC Camera 9 12 Volt Output - Black

Name: Real Mini UPS 8800 mAh DC UPS for Router, Onu, CC Camera 9 12 Volt Output - Black
SKU: FAEL683675
Price: 1875.00 BDT
Availability: InStock

Category: Modem & Router

SKU: FAEL683675

Seller: FAMOUS ELECTRONICS BD

App Coupon to Get Extra Discount

Tk 1,875

0 review(s)

Select Color: *

Call For Order : 09613-800800

MINI DC UPS

REAL MINI

Preface

Mini Please read this instruction manual carefully before you start using the UPS. You can find the useful tips which will help you use the ups in the right way. In case of any printing or translate error, we do apologize for the inconvenience.

Description

The uninterruptible power supply which also called ups that is a kind of backup battery which can power your device when there is no mains supply. It is widely use for security system, safety monitoring system, door control system and attendance system, communication system etc.

ProductSpecification

Item	Multi-output mini ups
Battery	18650 li-ion 2200mAh*4cell
Capacity	3.7V/ 8800mAh, 32.56WH
Output	5V, 9V, 12V ( Customizable)
Output Jack	Dc 5.5*2.1 mm
Colour	Black
Weight	400g.

Switch and LED Indicatior.

> Switch

It uses on off switch, it has 2 parts, click on one side to turn it on, click on the other side to turn it off.

> LED Indicator

> Red Light On :- Battery Charging

> Red Light Off :- Battery Full Charged

How to Choose Adapter

Mini Ups Type	Recommended Apapter
5v + 9v	9v 2A
9v + 12v	12v 2.5A
12v + 12v	12v 3A

> In order to ensure the working life and proper working condition of the mini ups, please use our recommended adapter.

Failure and Maintenance

> UPS not work or abnormal work: It's because connection is wrong. please check the input & output, connect ups and device in right way.

> Long charging time:it's because the adapter power is low ,use recommended adapter.

> It may because device with high-power,please buy larger capacity ups from us.

Operate Guide

> Connect suitable adapter to UPS input port"IN”

> Then equipped the ups and device by using suitable accessories.

> Press the switch power on or power off.

> Before using the ups,please fully charge the ups.

> UPS input voltage should be the same with highest output voltage.

>Please cut off all load and switch off the UPS if not use it.

> Keep it stored in dry and cool place.

Please buy the original product from our authorized dealer.

> ElectroCart BD

> Famous Electronics BD

> Tech Gadget.

Stay With Us , Thank You.
