A post office box is a compact form of Wheatstone's bridge. A Post Office Box can also be used to measure an unknown resistance. It is a Wheatstone Bridge with three arms, P, Q, and R, while the fourth arm is the unknown resistance. P and Q are known as the ratio arms, while R is known as the rheostat arm. \n

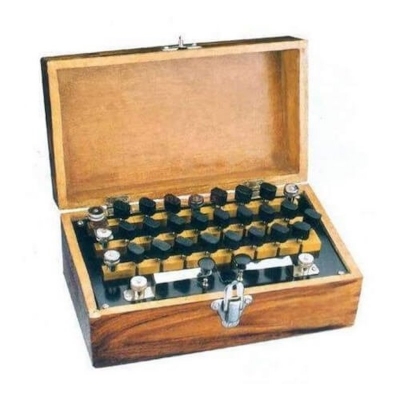

Post Office Box (PO Box) for Physics Practical Class & Exam

\nPlug-in type. The heavy brass contact blocks are bonded to the vulcanite by a double nut system. The plugs & lugs are cut to a finer taper & are interchangeable. The plug heads are machine-molded of bakelite. \n \nEach resistor is independently mounted with double leads. The accuracy of Constantan coils is 0.1% for lower values & 0.5% for higher values. Resistor: the best-imported constant wire is wound on ebonite spools; the method adopted is non-inductive & non-magnetic. Each resistor is dipped in boiling wax. Provided as above with 3 ratio coils of 1000, 100 & 10 ohms. Rheostat arm 15,000 ohms. Two tapping keys with silver contacts are provided for the battery & galvanometer in a teakwood case with a hinged lid. \n

\n
• Overall dimensions: 280x200x175mm approx.
\n
• Premium Quality PO Box
\n
• Made in India
\n
• Note: Product Color and size may differ from the picture.
\n

\n
• Deshi Post Office Box 1 Set
\n
• Measure an unknown resistance
\n
• Premium Quality PO Box
\n
• Made in India
