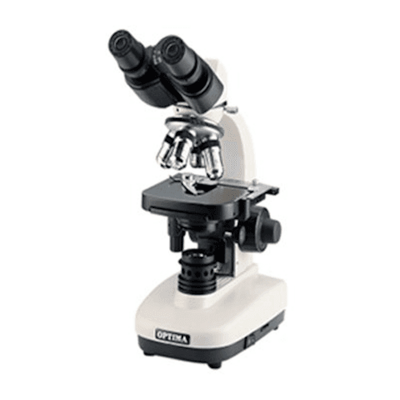

Picture of Optima Biological Microscope G-206
Picture of Optima Biological Microscope G-206

Optima Biological Microscope G-206

Category: Medical Supplies & Equipment
SKU: LTBD19550
Seller: Labtex Bangladesh
App Coupon to Get Extra Discount
Tk 50,000
0 review(s)
    \n
  • Binocular Microscope
    • \n
  • Model: G-206 (1800x Zoom)
    • \n
  • Brand: Optima by Digisystem
    • \n
  • Made in Taiwan
    • \n
*

Call For Order : 09613-800800
The OPTIMA® biological microscope G-206 is a standardized optical instrument. It is equipped with achromatic objectives and wide-field eyepieces. The structure of G-206 is simple, easy to operate, and maintain. The model is beautiful and dignified. G-206 is the ideal instrument for the beginner or school educational application. \n

Features of Optima Biological Microscope G-206

\n
    \n
  • G-206 is equipped with wide-field eyepieces.
    • \n
  • The light source is continuously adjustable with a halogen lamp.
    • \n
  • The main body is made of aluminum alloy, ensuring a stable structure.
    • \n
  • With its excellent optical system, it can achieve a wide field of view, sharp contrast, and a comfortable viewing experience.
    • \n
  • 1 Year Warranty
    • \n
  • Brand: Optima (by Digisystem)
    • \n
  • Made in Taiwan
    • \n
\n

Specification of G-206 Binocular Microscope

\n \n \n \n \n \n \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
\n

Model

\n		 \n

G-206

\n
\n

Observation tube

\n		 \n

Binocular head inclined at 45˚

\n
\n

Interpupillary distance

\n		 \n

From 55-75mm

\n
\n

Focusing

\n		 \n

Coaxial focusing knob, the coarse focusing range is 15mm, and fine focusing is graduated in an increment of 2.5μm

\n
\n

Stage

\n		 \n

Mechanical stage, size 120 x 125mm with moving range 35 x 75mm

\n
\n

Eyepiece

\n		 \n

WF10X/18

\n
\n

Objective

\n		 \n

Achromatic 4X, 10X, 40X (spring), 100X (spring) oil

\n
\n

Condenser

\n		 \n

N.A. 1.25 Abbe condenser with iris diaphragm and filter holder

\n
\n

Illumination

\n		 \n

6V15W halogen lamp with adjustable light intensity

\n
\n

Power supply

\n		 \n

110/220V switchable

\n
\n

Standard accessories

\n		 \n

Dust cover, blue and green filters, backup lamp, plano-concave mirror

\n
\n

Optional accessories

\n		 \n

WF10X/18 eyepiece with 10/100mm scale, WF15X eyepiece, 20X objective

\n
\n
\nOptima Biological Microscope G-206 LED Illuminator




    \n
  • Binocular Microscope
    • \n
  • Model: G-206 (1800x Zoom)
    • \n
  • Brand: Optima by Digisystem
    • \n
  • Made in Taiwan
    • \n
