• Excellent IFT stability—IR emitting diode has low degradation
\n
• High isolation voltage—minimum 5300 VAC RMS
\n
• Underwriters Laboratory (UL) recognized—File #E90700
\n
• Peak blocking voltage– 250V-MOC301XM – 400V-MOC302XM
\n

APPLICATIONS of MOC3021

\n
• Industrial controls
\n
• Solenoid/valve controls
\n
• Traffic lights
\n
• Static AC power switch
\n
• Vending machines
\n
• Incandescent lamp dimmers
\n
• Solid state relay
\n
• Motor control
\n

Specifications of MOC3021 Optocoupler

\n
• Input-to-output peak voltage, 5 s maximum duration, 60 Hz: 7.5 kV
\n
• Input diode reverse voltage : 3 V
\n
• Input diode forward current, continuous: 50 mA
\n
• Output repetitive peak off-state voltage: 400 V
\n
• Output on-state current, total rms value (50-60 Hz, full sine wave): TA = 25°C: 100 mA
\n
• TA = 70°C : 50 mA
\n
• Output driver nonrepetitive peak on-state current (tw = 10 ms, duty cycle = 10%): 1.2 A
\n
• Continuous power dissipation at (or below) 25°C free-air temperature:
\n
• Infrared-emitting diode: 100 mW
\n
• Phototriac: 300 mW
\n
• Total device: 330 mW
\n
• Operating junction temperature range, : –40°C to 100°C
\n
• Storage temperature range, Tstg: –40°C to 150°C
\n
• Lead temperature 1,6 (1/16 inch) from case for 10 seconds:260°C
\n

\n

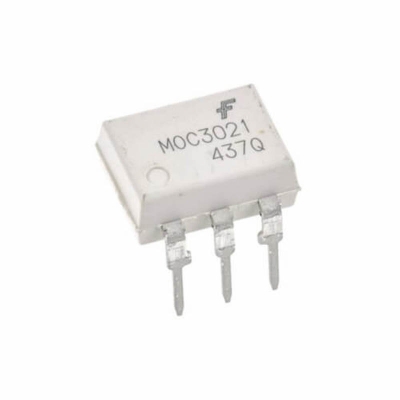

• MOC3021 Optocoupler
\n
• TRIAC Driven Opto-isolator IC DIP
\n
• 6 Pin Leads Optocoupler IC
\n
• Made in China
