MN TLC plate coated with a soft layer of unmodified silica gel 60. The thickness of the layer for analytical plates is 0.25 mm. For preparative purposes (PLC), different layer thicknesses are available (0.5 mm, 1 mm, and 2 mm). For 2 mm preparative layers, a slightly coarser material is used. Available with different UV indicators - manganese-activated zinc silicate with green fluorescence for short-wave UV (254 nm); special inorganic fluorescent pigment with blue fluorescence for long-wave UV (366 nm). SIL G is available on glass plates, aluminum sheets, and polyester sheets in different sizes. \n

\n
• TLC aluminum sheets, silica gel layer, ALUGRAM Xtra SIL G UV254, 20×20 cm
\n
• TLC aluminum sheets with optimized cuttability and wettability. Layer – unmodified silica gel (SiOH).
\n
• Hazardous material: No
\n
• Method: Thin-layer chromatography (TLC)
\n
• Brand ALUGRAM Xtra
\n
• Phase Xtra SIL G UV254
\n
• Base material: Aluminum sheets coated with silica gel
\n
• Surface chemistry Unmodified silica gel (SiOH)
\n
• Mode Normal phase (NP)
\n
• Plate size 20×20 cm
\n
• Layer thickness 0.20 mm
\n
• Layer hardness Standard, soft
\n
• UV indicator Yes
\n
• Support material/backing Aluminum
\n
• Particle size: 5-17µm
\n
• Particle type: Fully porous particles (FPP)
\n
• Particle shape Irregular
\n
• Pore size: 60Å
\n
• Pore volume 0.75 mL/g
\n
• Binder: Yes
\n
• pH stability 2.0-8.0
\n
• Recommended applications of the MN TLC Plate are Aflatoxins, Alkaloids, Amines, Amino acids, Analgetics, Antibiotics, Hormones, Marihuana compounds, Normal phase (NP), Patulin, Steroids, Sweeteners, Vitamins
\n
• Temperature stability High
\n
• Storage temperature RT
\n
• Scope of delivery 25x TLC aluminum sheets/foils (20×20 cm)
\n
• Made IN Germany
\n
• Click for More Information
\n

\n

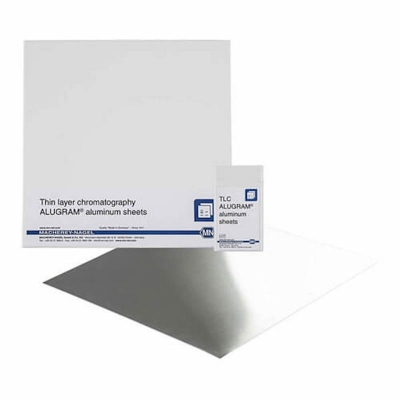

• TLC Plate (Pre-Coated TLC Sheet)
\n
• Size: 20x20cm
\n
• Pack Size: 25 Pcs Per Box
\n
• Brand: MN, Germany
