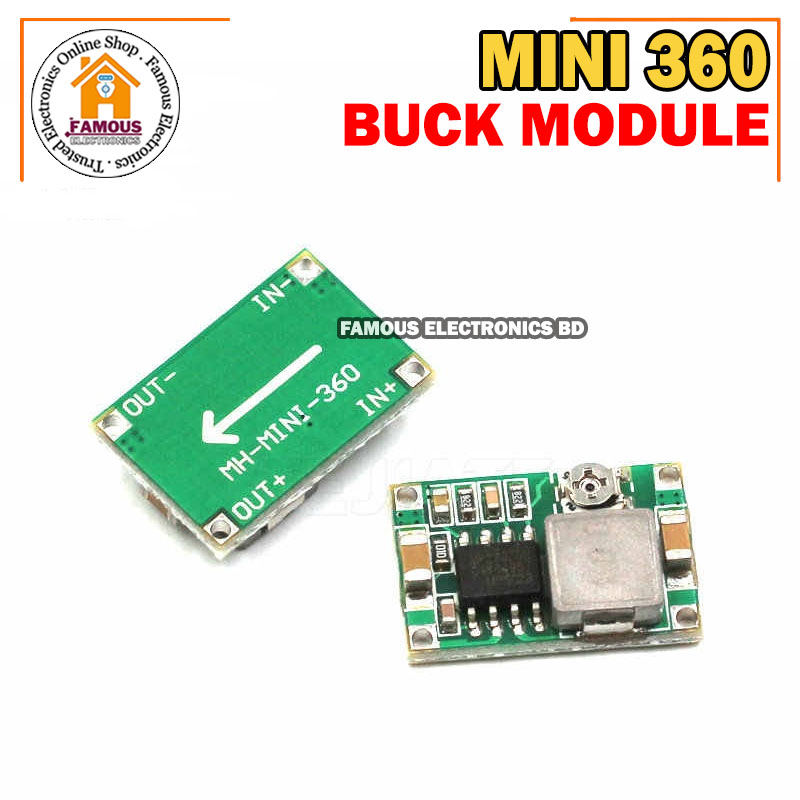

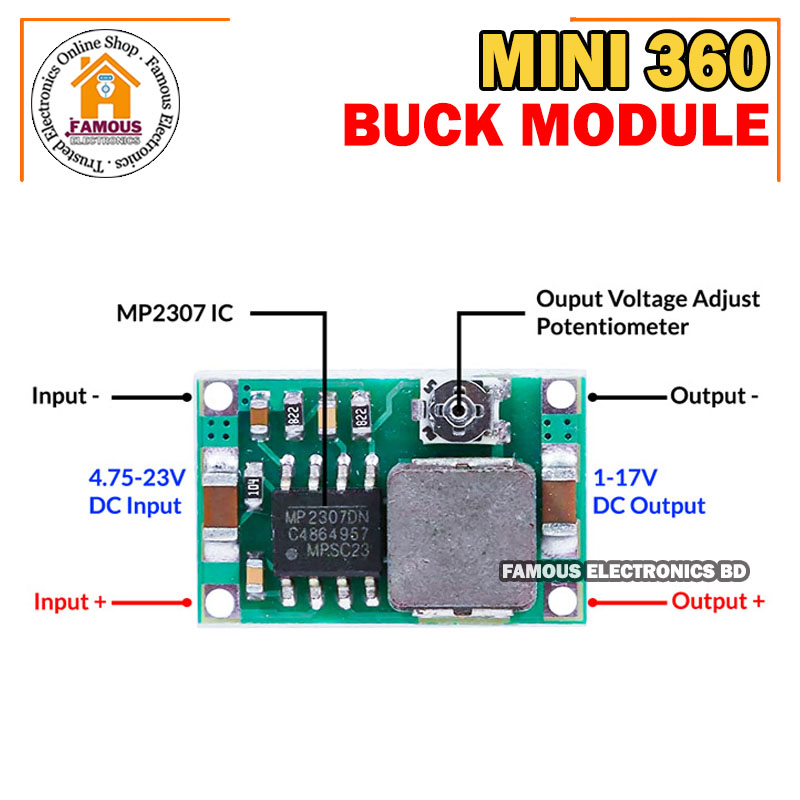

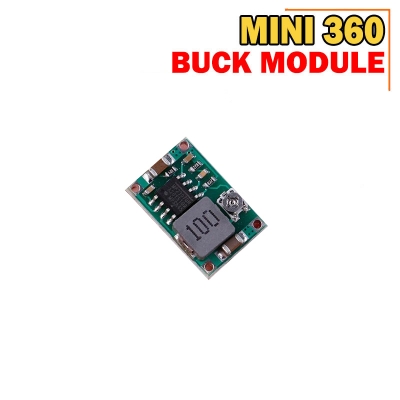

• Module Properties: Non-isolated step-down module (BUCK)
• Rectification: Synchronous rectification
• Input voltage: DC 4.75V-23V
• Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
• Output current: Rated current 1.8A
• Conversion efficiency:96%(highest)
• Switching Frequency: 340KHz
• Output ripple:30mV (no-load)
• Load regulation:±0.5%
• Voltage regulation:±2.5%
• Operating Temperature: Industrial (-40 ~ +85)
• Short circuit protection: No
• Input Reverse protection: No
• Dimension:17x11x4mm

SUPPLIER: FAMOUS ELECTRONICS BD
