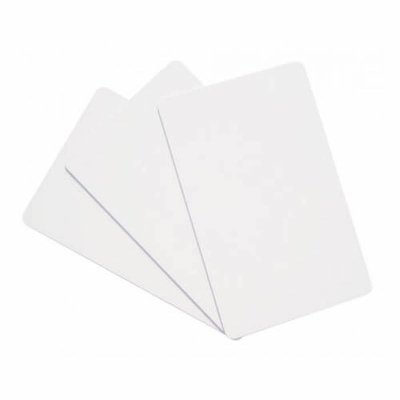

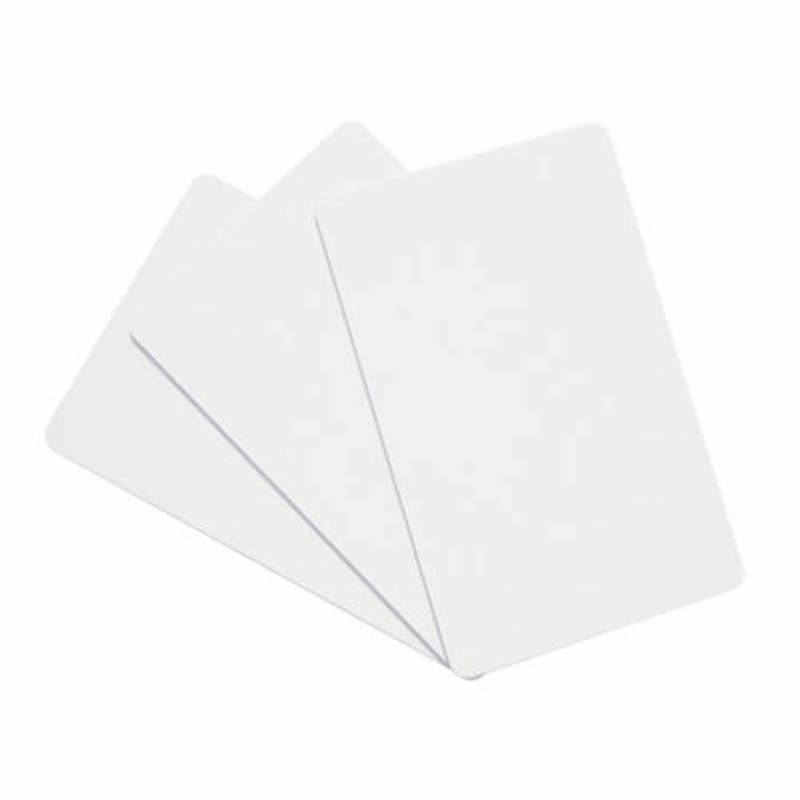

This is an RFID 13.56MHz NFC Smart Card used for Contactless transmission of data and supplies energy with no battery needed. Its Operating distance is up to 1 Meter, depending on antenna geometry. Operating frequency is 13.56MHz, and Data transfer speed is 106 Kbit/s. \n

Our Observation and Recommendation:

\nThe iPhone 13 Pro Max does not support this Card by default. We had to write the URL using a Samsung Galaxy device. After writing the URL to the card, it then worked on the iPhone 13 Pro Max. However, if we write anything other than a URL, such as text or a contact card, the iPhone doesn't detect the tag. On our Samsung Galaxy device, it worked by default, and we could write data onto it. \n \nWe cannot guarantee that it will work on every phone. Please keep this in mind before making a purchase. \n

Applications :

\n

\n
1. Public transportation
\n
2. Access control
\n
3. Event Ticketing
\n
4. Gaming & identity
\n

\n

Features of the MIFARE Classic 1K RFID NFC Smart Card:

\n

\n
1. Contactless transmission of data and supply energy (no battery needed)
\n
2. Anti-collision
\n
3. EEPROM \n
   \n
   • 1Kbit, organized in 16 sectors, with each sector with two passwords
   \n
   • Data retention of 10 years.
   \n
   \n
\n
4. Security \n
   \n
   • Individual key set per sector (per application) to support multiple applications with key hierarchy
   \n
   • A unique serial number for each device
   \n
   • The transport key protects access to the EEPROM on-chip delivery.
   \n
   \n
\n
5. Data integrity: 16 Bit CRC, parity, bit coding, bit counting
\n
6. Typical ticketing transaction: <100 ms ( including backup management) Printable
\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

General Specification
Material	PVC
Operating Distance	Up to 100mm (depending on antenna geometry)
Operating Frequency	13.56MHz
Data Transfer	106 kbit/s
Data Integrity	16 Bit
Typical Ticketing Transaction	<100 ms
Data Storage Time	minimum 10 years
Dimensions	86 x 54mm
Thickness (mm)	0.88
Operating Temperature (°C)	-20 to 60
Shipment Weight	0.02 kg
Shipment Dimensions	5 x 3 x 1 cm

\n
• Contactless transmission of data and supply energy (no battery needed)
\n
• Operating distance: Up to 100mm (depending on antenna geometry
\n
• Operating frequency: 13.56MHz
\n
• Data transfer: 106 kbit/s
\n
