• Wire Description
\n
• RED – Positive
\n
• Brown – Negative
\n
• Orange – Signal
\n

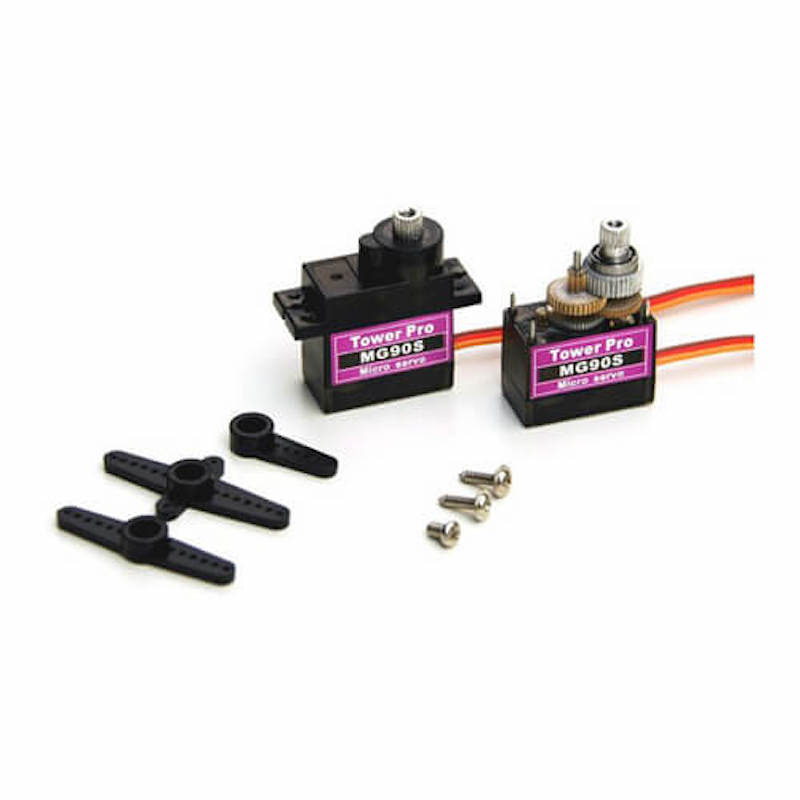

General Specification of Metal Servo MG90s

\n
• Model MG90S
\n
• Weight(gm) 13
\n
• Operating Voltage (VDC) 4.8 ~ 6.6
\n
• Operating Speed @4.8V 0.10sec/60°
\n
• Operating Speed @6.6V 0.08sec/60°
\n
• Stall Torque @ 4.8V (Kg-Cm) 1.8
\n
• Stall Torque @6.6V (Kg-Cm) 2.2
\n
• Operating Temperature (°C) 0 to 55
\n
• Dead Band Width ( μs) 1
\n
• Rotational Degree 180º
\n
• Servo Plug JR
\n
• Cable Length (cm) 25
\n
• Length (mm) 12.4
\n
• Width (mm) 22.8
\n
• Height (mm) 32.5
\n
• Shipment Weight 0.017 kg
\n
• Shipment Dimensions 8 × 6 × 3 cm
\n

\n
• 1 x Towerpro MG90S Mini Digital 180-Degree Servo
\n

\n
• One Point
\n
• Two Point
\n
• Four Point
\n
• 1 x Set of Screws
\n

\n
• Model: MG90S
\n
• Weight: 13 gm
\n
• Operating voltage: 4.8V~ 6.6V
\n
• Servo Plug: JR
\n
• Stall torque @4.8V : 1.8kg-cm
\n
• Stall torque @6.6V : 2.2kg-cm
