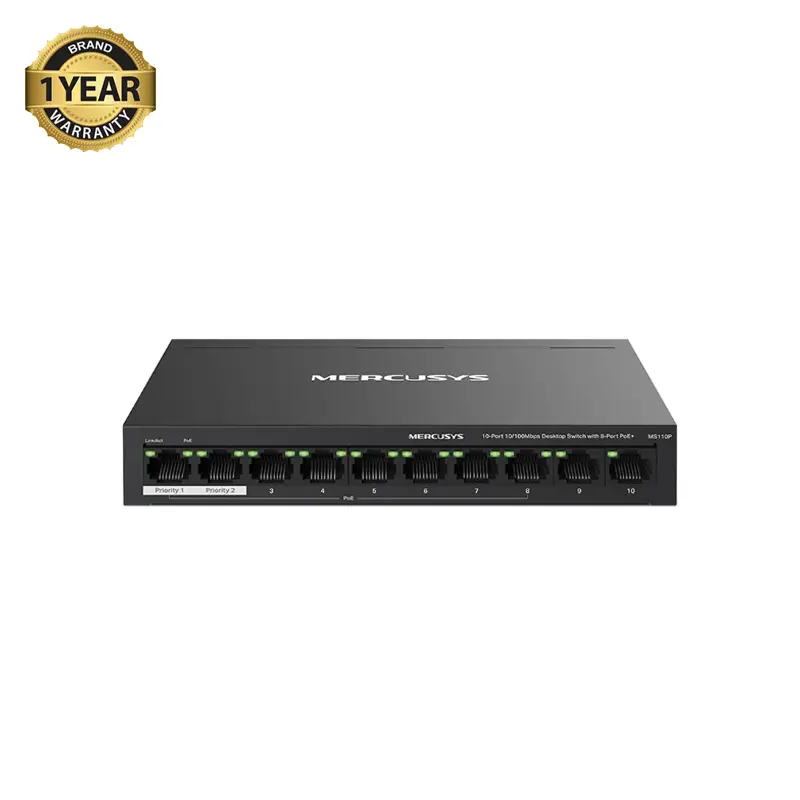

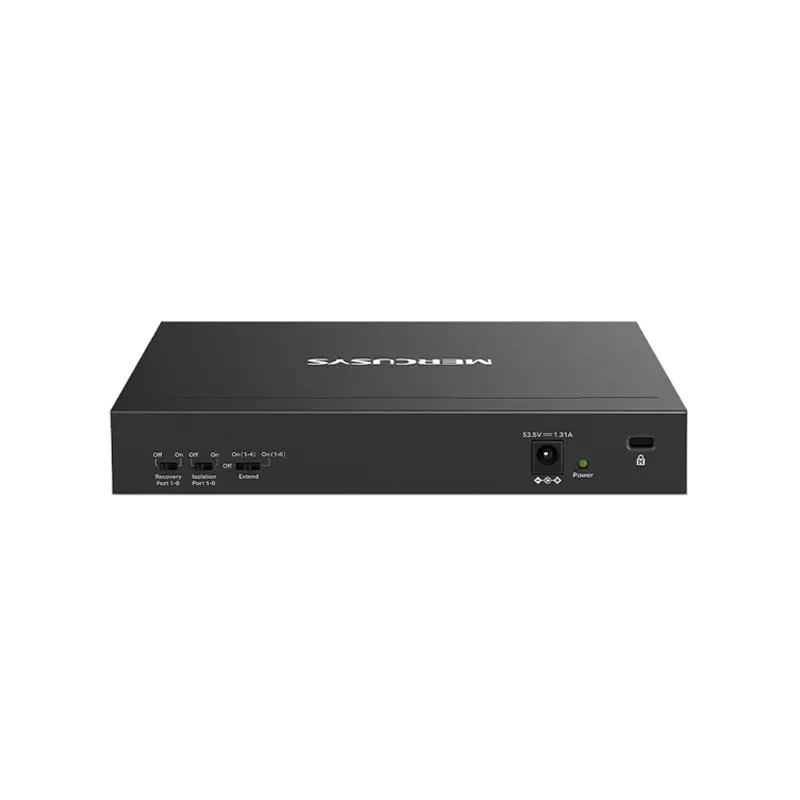

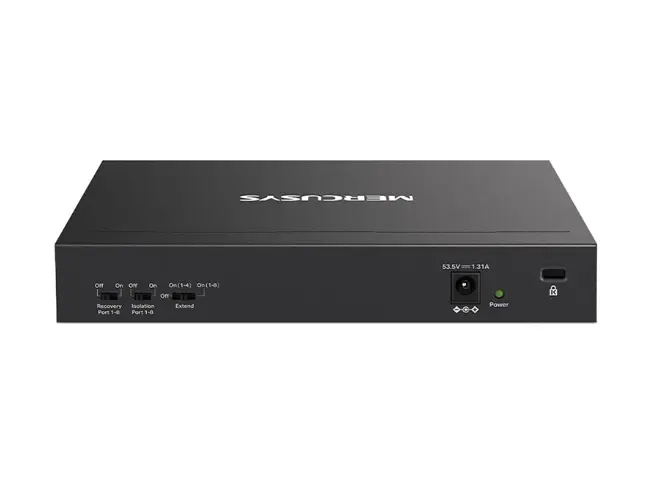

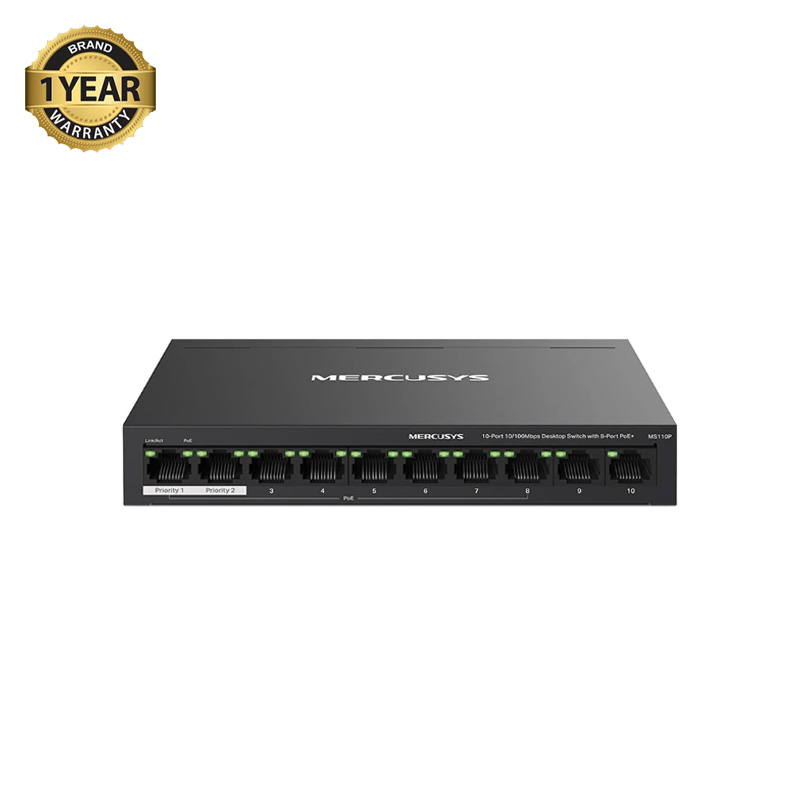

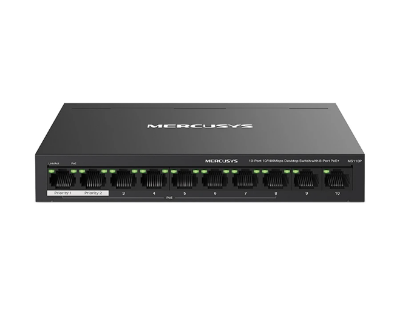

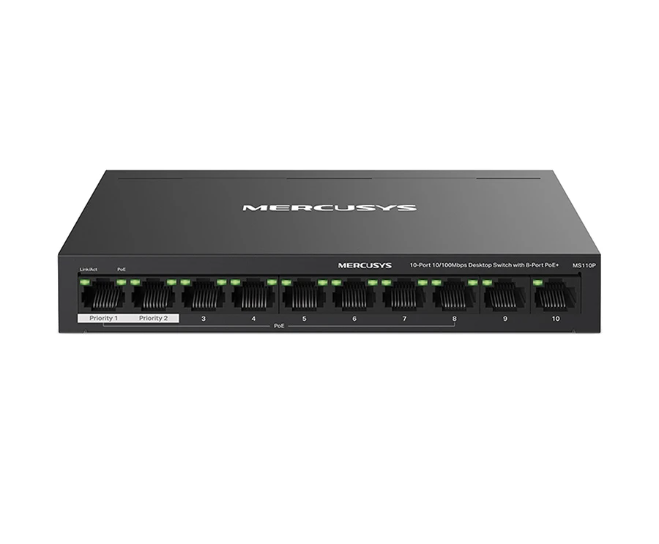

MERCUSYS MS110P 10-Port Unmanaged Desktop Switch

 Mercusys MS110P Network Switch

MS110P

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

Isolation Mode: One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing: Allows for efficient heat dissipation and long network life

Plug and Play: Simple to use and saves time and effort

PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

No Fuss

No need for electricians; simplify installation and deployment.

Cost-Efficiency

Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility

Deployment in complex situations is made possible by more placement possibilities.

Power Management

Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at

PoE ports compliant with the 802.3af/at Powered Devices.

Traffic Separation

With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.

Port Prioritization

Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

PoE Auto Recovery

The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

Plug and Play

MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
