Standards and Protocols

IEEE 802.3x Flow Control

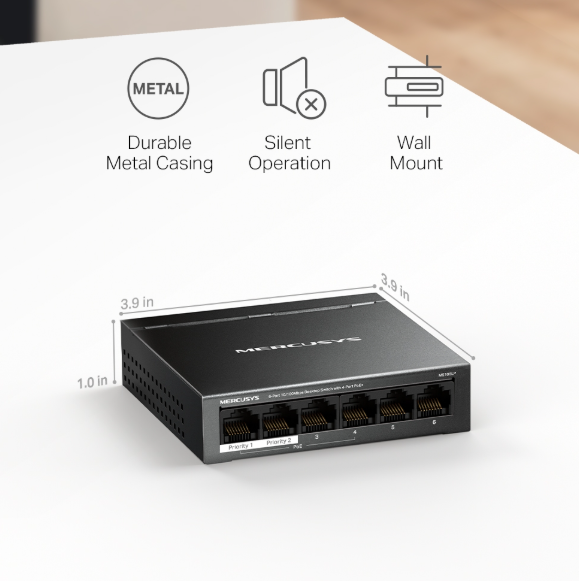

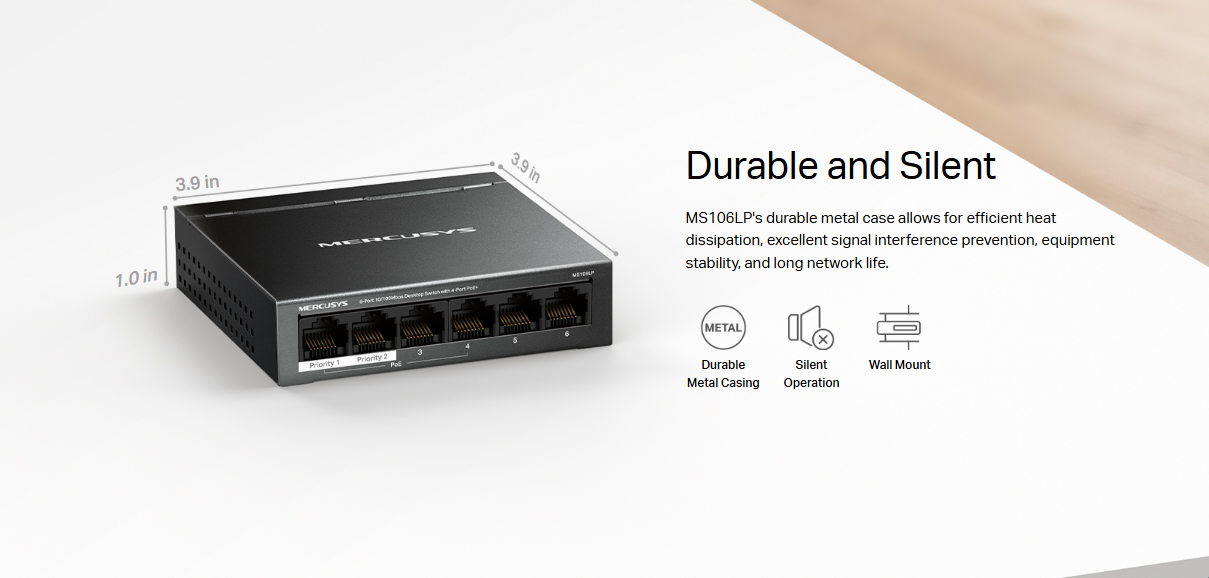

Dimensions

99.8*98*25mm

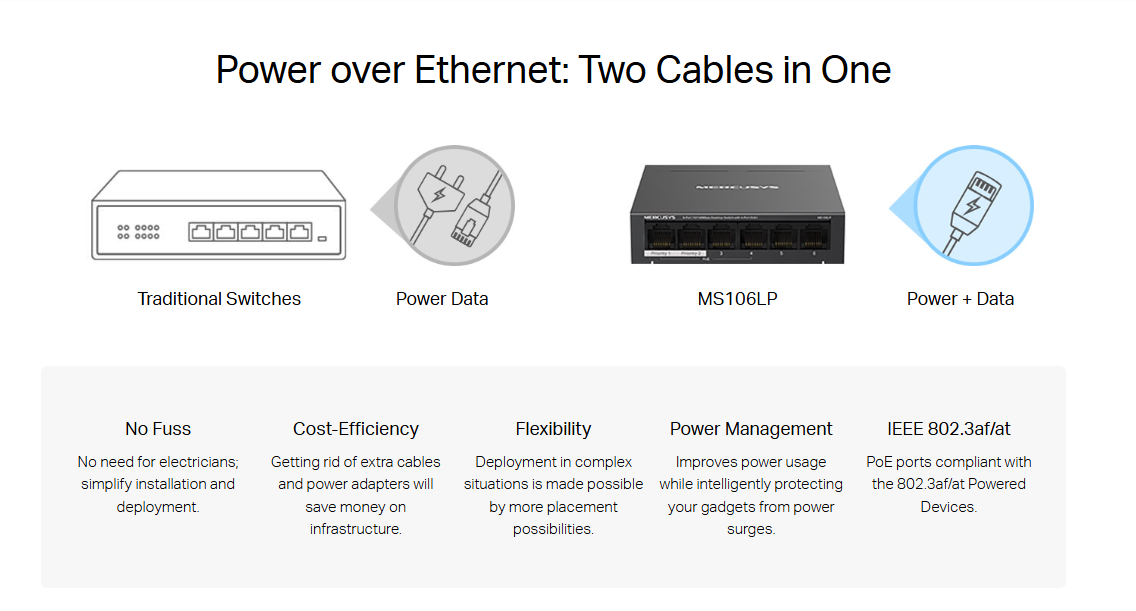

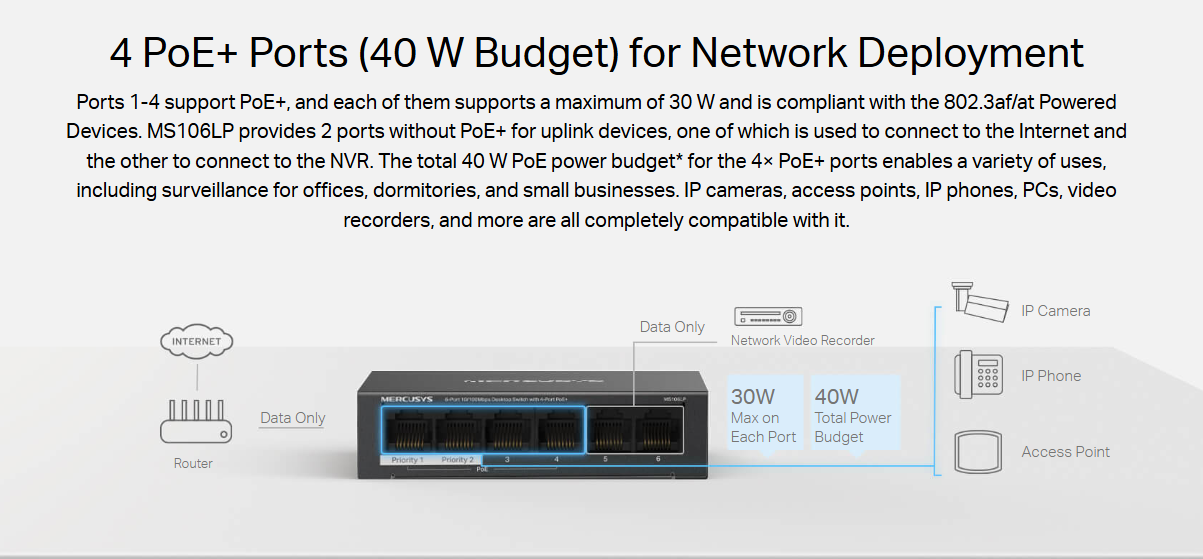

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices

PoE Ports: Port 1- Port 4

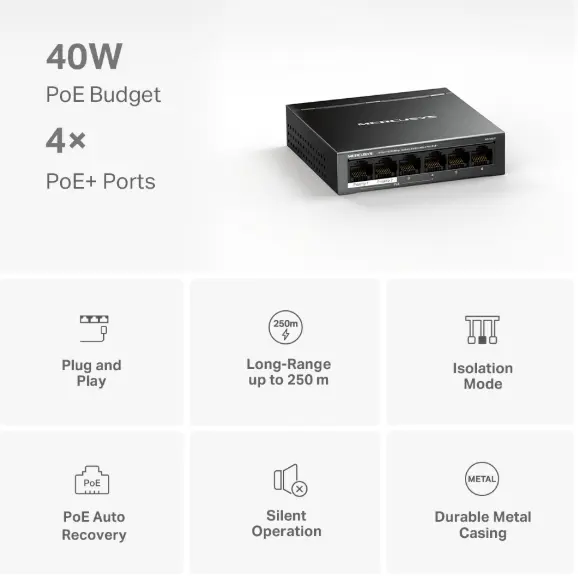

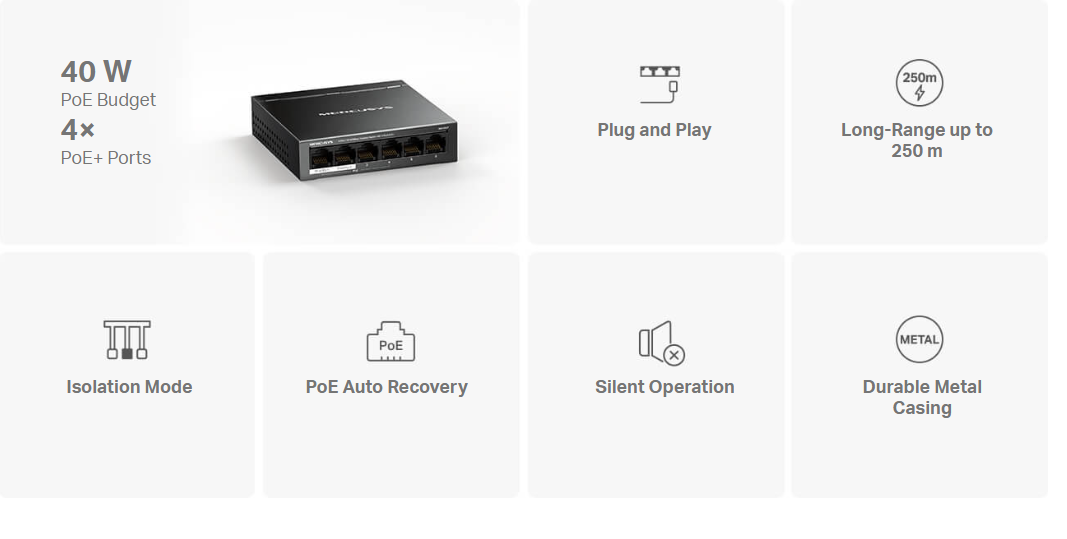

PoE Power Budget: 40 W

Interfaces

6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

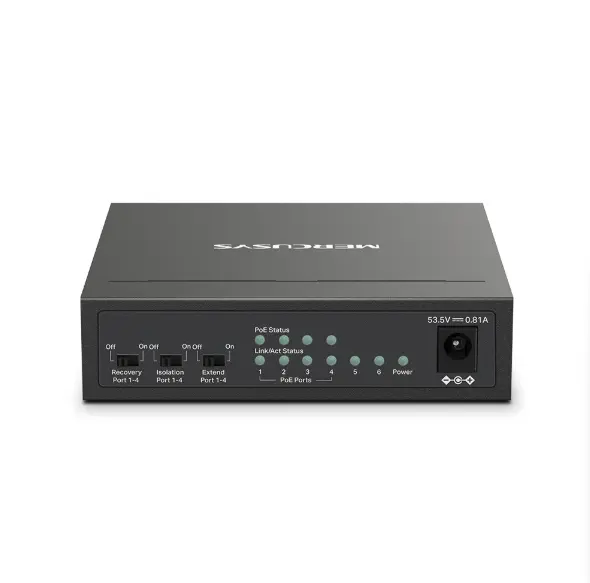

External Power Adapter (Output: 53.5V/0.81A)

Installation

Desktop

Wall Mount

Data Rates

10/100 Mbps at Half Duplex

20/200 Mbps at Full Duplex

Jumbo Frame

2 KB

MAC Address Table

2K

Max Power Consumption

1.87W（220 V / 50 Hz, no PD connected）

44.8W（220 V / 50 Hz, with 40W PD connected）

Max Heat Dissipation

6.34 BTH/h （no PD connected)

152.32 BTH/h（with 40W PD connected）

OthersPackage Contents

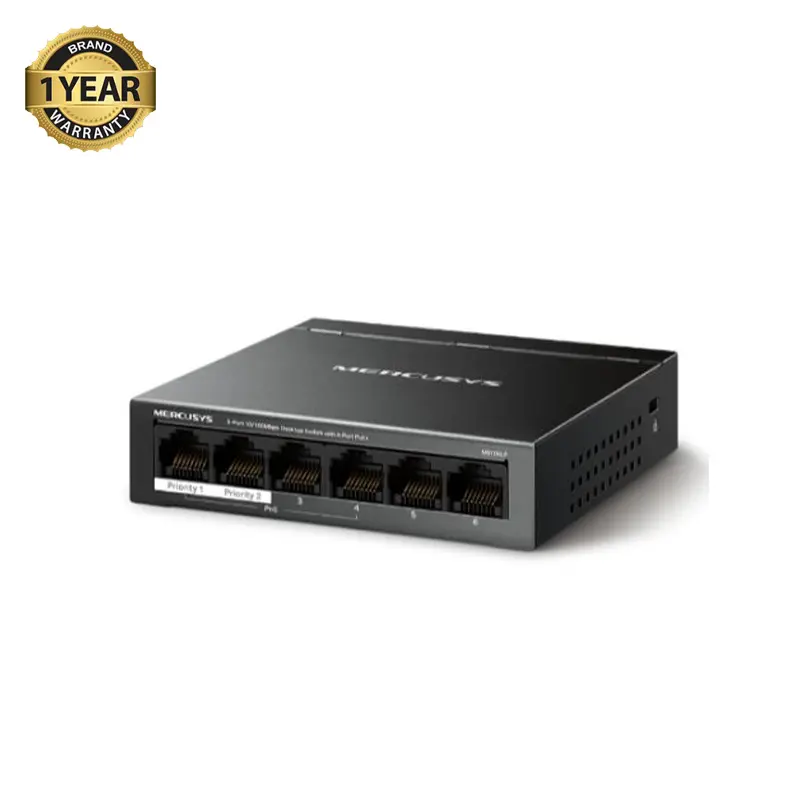

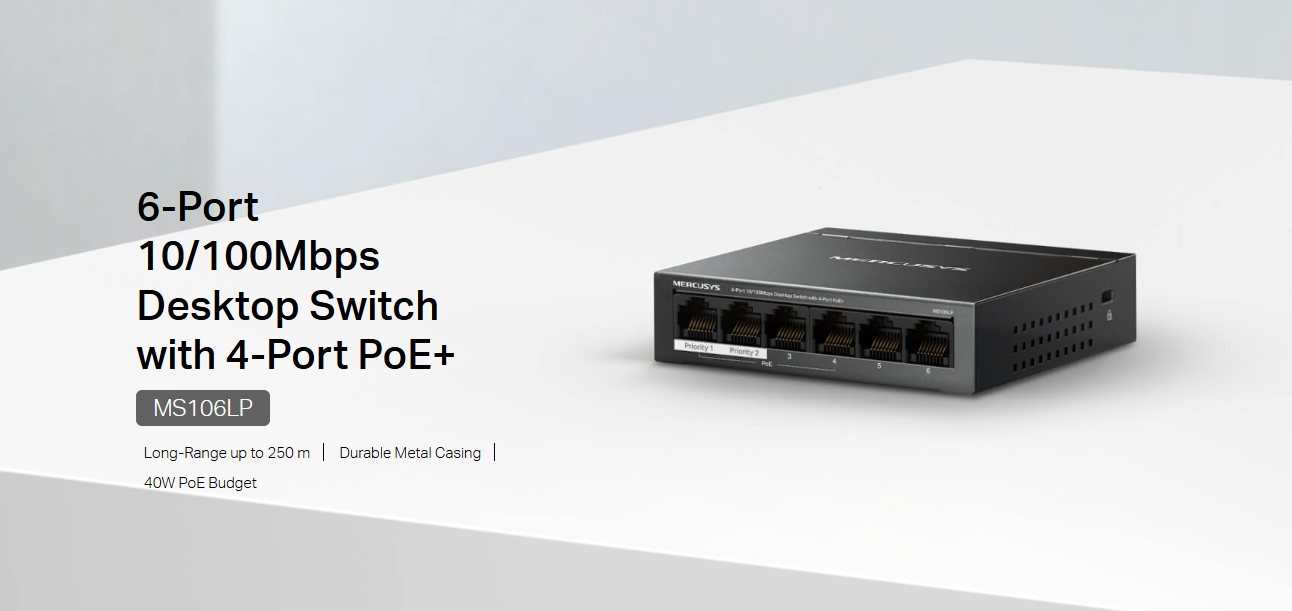

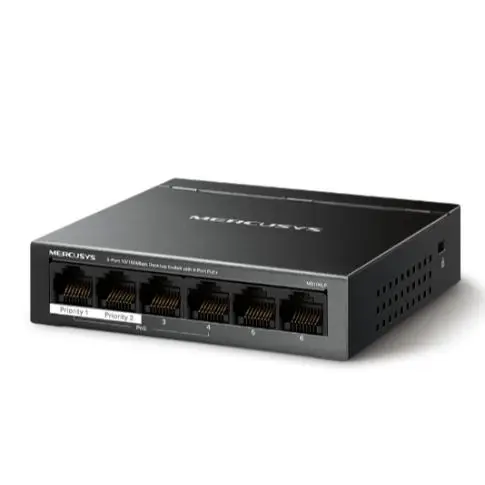

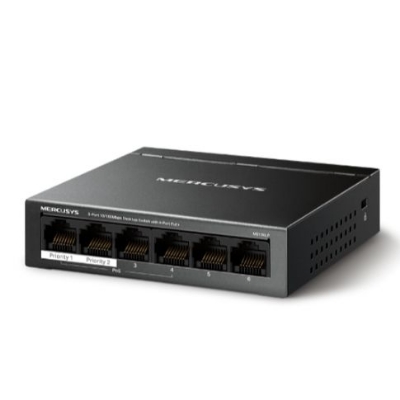

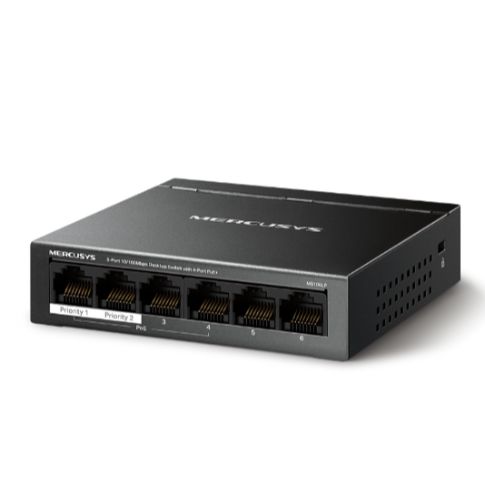

• 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)

• Power Adapter

• Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~95% RH non-condensing
