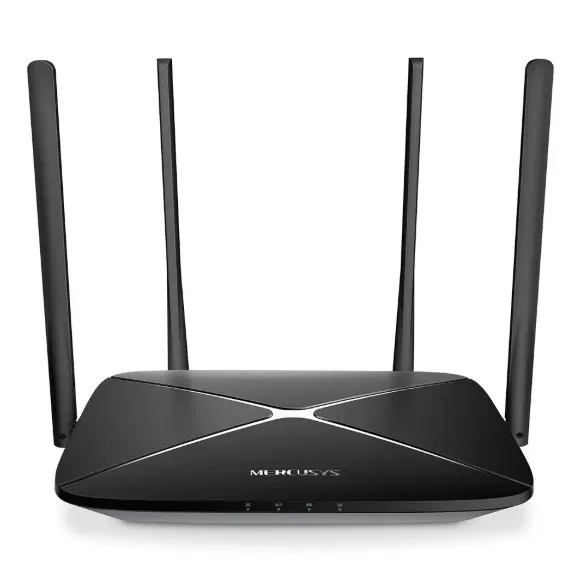

Mercusys AC12G AC1300 Wireless Dual Band Gigabit Router with MIMO

WirelessWireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

 Frequency

2.4 - 2.5GHz, 5.15 - 5.35GHz

 WiFi Speeds

300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

 Reception Sensitivity

5 GHz

• 11a 6M: -92 dBm

• 11a 54M: -75 dBm

• 11ac 20M MCS8: -70 dBm

• 11ac 40M MCS9: -64 dBm

• 11ac 80M MCS9: -60 dBm

2.4 GHz

• 11g 6M: -95 dBm

• 11g 54M: -77 dBm

• 11n 20M MCS7: -74 dBm

• 11n 40M MCS7: -71 dBm

 Transmission Power

<20dBm (EIRP)

 Wireless Security

WPA-PSK / WPA2-PSK

 Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

HardwareDimensions

222 × 140 × 32 mm

 Interfaces

1 Gigabit WAN Port

3 Gigabit LAN Ports

 Button

WPS/Reset Button

 External Power Supply

9 VDC/ 0.85 A

 Antenna Type

4 Fixed Omni-Directional Antennas

SoftwareWAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

 Management

Access Control

Local Management

Remote Management

 Port Forwarding

Virtual Server, UPnP, DMZ

 Dynamic DNS

NO-IP, DynDNS

 Firewall Security

IP and MAC Address Binding

 Protocols

IPv4, IPv6

 Guest Network

2.4GHz Guest Network, 5GHz Guest Network

 DHCP

Server

OthersCertifications

CE, ROHS

 Package Contents

• AC1200 Wireless Dual Band Gigabit Router

(AC12G)

• Power Adapter

• Ethernet Cable

• Quick Installation Guide

 Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Storage Temperature: -40°C~70°C (-40°F~158°F)

• Operating Humidity: 10%~90% Non-Condensing

• Storage Humidity: 5%~90% Non-Condensing
