• Model SCC 1210

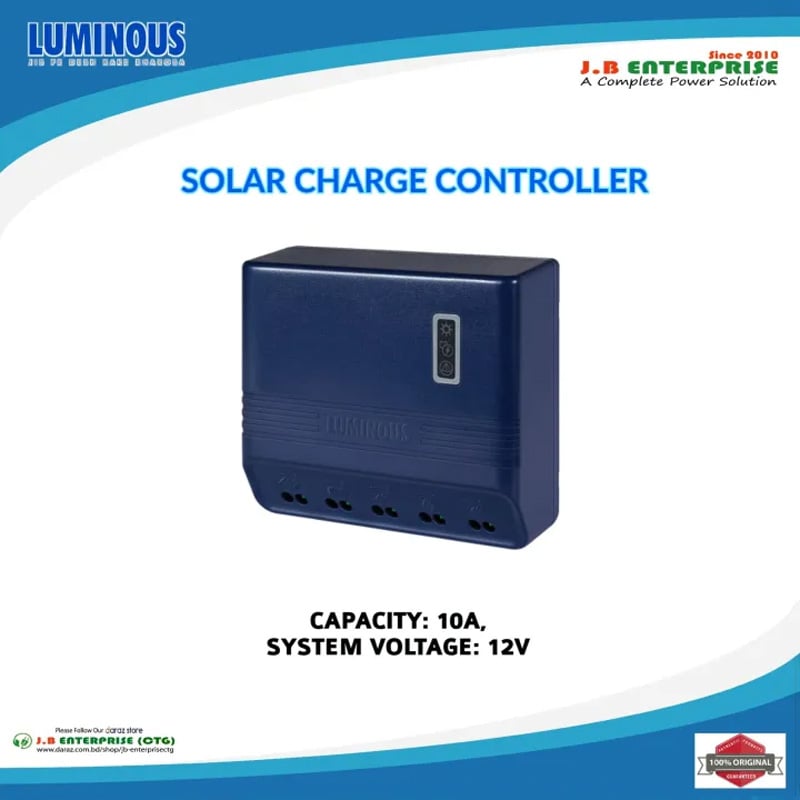

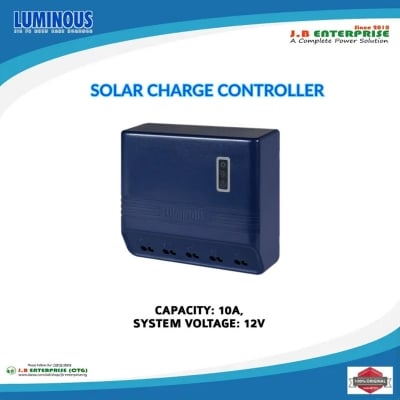

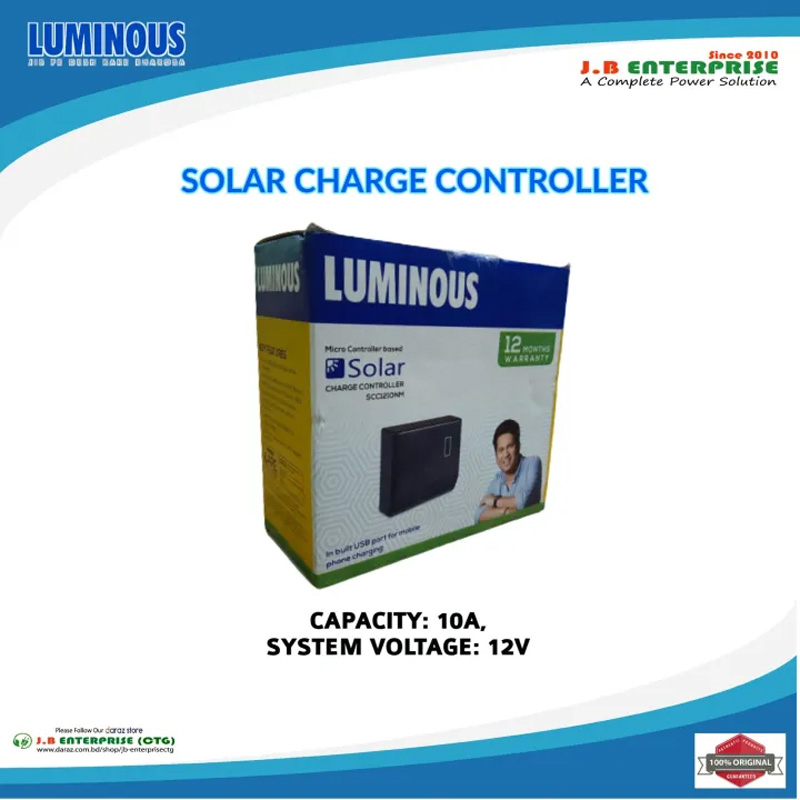

• Range Name (Solar) Solar Charge Controller
• Net weight (kg.) 0.3 kg
• Dimensions (L*B*H) 4.0*6.0*13.5 CM
• Charge Controller Rating 10A@12V/24V
• Max. supported panel power (Wp) 200Wp@12V, 400Wp@24V
• Input Voltage Range (Voc) 17V-25V@12V, 36V-50V@24V
• Description
• 1. Luminous charge controllers are PWM based controllers with 98 percent efficiency.
• 2. It has option of USB charging.
• 3. It comes in ratings of 20a.
• 4. Electronic and software controlled protections.
• 5. Maintenance-free.
• 6. USB mobile charger output.
• 7. Option of SMF and lead acid battery selection.
• 8. Features automatic selection of battery. Aesthetic and compact design.
• 9. Load controller with LVD.

Technical specifications

• 1. PWM based technology.
• 2. Automatic battery voltage selection of battery.
• 3. In built low voltage disconnect (LVD) and 20 percent extra power than rated capacity.
• 4. 40 to 125 watt panels in 12 volt system in 20a. --
• 5. Suitable for connecting to the 12v load directly
• 6. Luminous Charge Controller charges batteries from solar panels without permitting overcharge and also prevent reverse current flow at night.
• 7. Charge Controller comes with USB port which gives you the flexibility of charging your DC devices like Mobile phone directly without the use of an adapter.
