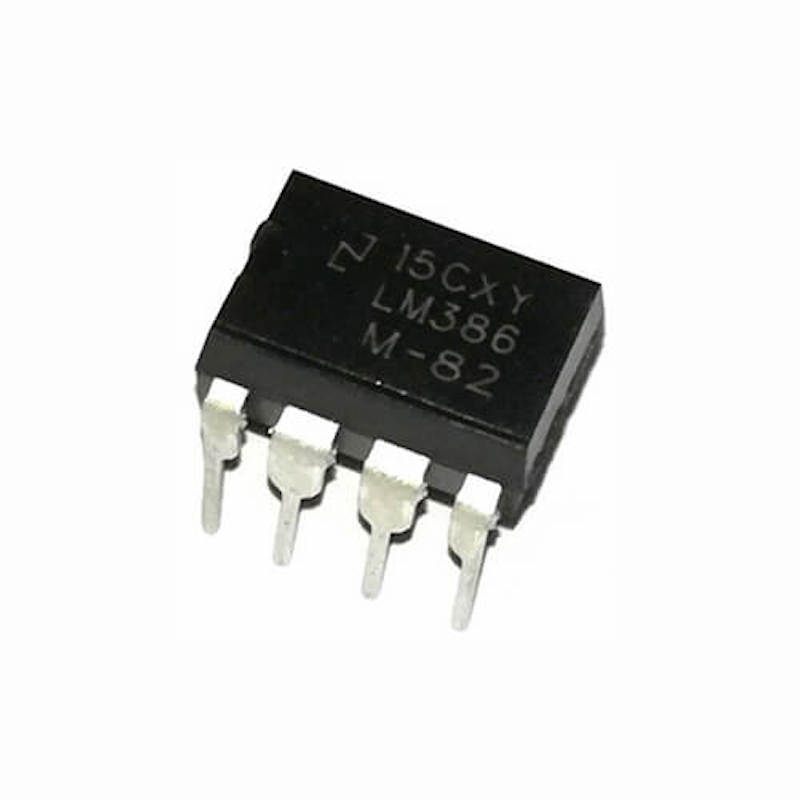

The LM386 OPAMP IC is a power amplifier designed for use in low-voltage consumer applications. The gain is internally set to 20 to keep the external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6-volt supply, making the LM386 ideal for battery operation. \n

Features LM386 OPAMP IC:

\n

\n
• Battery operation
\n
• Wide supply voltage range: 4V–12V or 5V–18V
\n
• Low quiescent current drain: 4mA
\n
• Voltage gains from 20 to 200
\n
• Ground referenced input
\n
• Self-centering output quiescent voltage
\n
• Low distortion: 0.2% (AV = 20, VS = 6V, RL = 8W, PO = 125mW, f = 1kHz)
\n
• Available in 8 8-pin MSOP package
\n

\nApplications LM386 OPAMP IC \n

\n
• AM-FM radio amplifiers
\n
• Portable tape player amplifiers
\n
• Intercoms
\n
• TV sound systems
\n
• Line drivers
\n
• Ultrasonic drivers
\n
• Small servo drivers
\n
• Power converters
\n

\n

Specifications:

\n

\n
• Supply Voltage: (LM386N-1, -3, LM386M-1) 15V
\n
• Supply Voltage (LM386N-4) 22V
\n
• Package Dissipation: (LM386N) 1.25W, (LM386M) 0.73W, (LM386MM-1) 0.595W
\n
• Input Voltage: ±0.4V
\n
• Storage Temperature :−65°C to +150°C
\n
• Operating Temperature: 0°C to +70°C
\n

\n
• LM386 OPAMP IC
\n
• Supply Voltage: (LM386N-1, -3, LM386M-1) 15V
\n
• Supply Voltage (LM386N-4) 22V
\n
• Made in China
