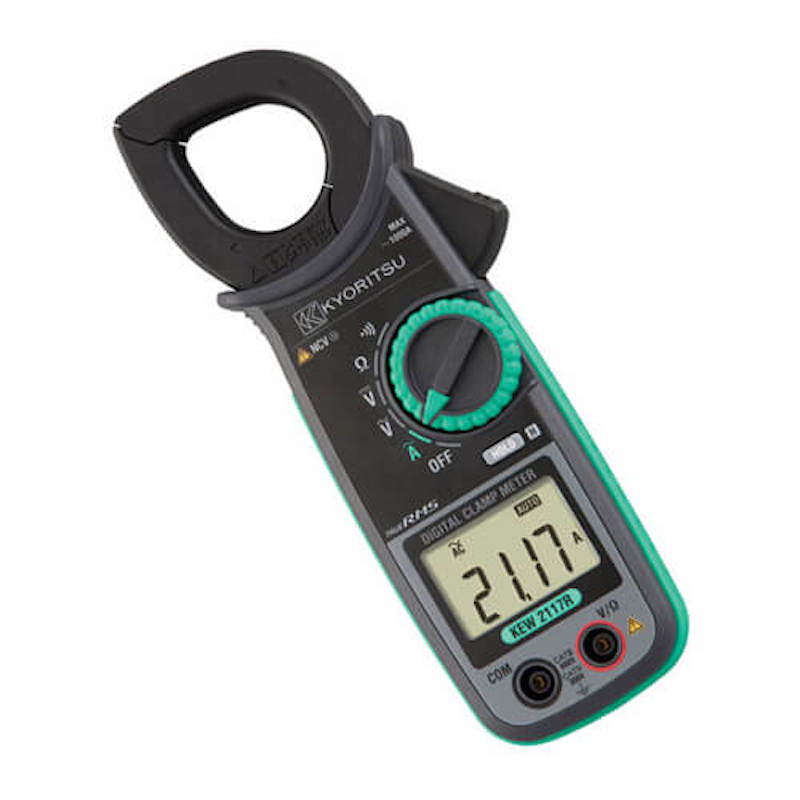

Kyoritsu Digital AC Clamp Meter KEW2117R

Category: Electric Hardware & Tools
SKU: LTBD28515
Seller: Labtex Bangladesh
App Coupon to Get Extra Discount
Tk 9,500
0 review(s)
    \n
  • Digital AC Clamp Meter
    • \n
  • Model: KEW2117R
    • \n
  • Brand: Kyoritsu
    • \n
  • Made in Japan
    • \n
*

Call For Order : 09613-800800
Kyoritsu Brand Digital AC Clamp Meter KEW2117R is a perfect portable clamp meter for electric and electronics professional. \n
    \n
  • Fully Safety jaw
    • \n
  • The ergonomic over-molded body gives convenient one-hand operation
    • \n
  • Large easy-to-read display with 0.01A resolution
    • \n
  • Accurate reading with True RMS
    • \n
  • 60/600/1000A auto-ranging
    • \n
  • Long battery life
    • \n
  • Safety Standard
    • \n
  • IEC 61010-1 CAT IV 300V / CAT III 600V
    • \n
  • Click to Know More
    • \n
\n

Specifications of Kyoritsu Digital AC Clamp Meter KEW2117R:

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
AC A60.00/600.0/1000A (Auto-ranging) \n±1.5%rdg±4dgt [45 - 65Hz] \n±2.0%rdg±5dgt [40 - 1kHz]
AC V60.00/600.0V (Auto-ranging) \n±1.0%rdg±2dgt [45 - 65Hz] (600V) \n±1.5%rdg±4dgt [40 - 1kHz] (60/600V)
DC V60.00/600.0V (Auto-ranging) \n±1.0%rdg±3dgt (60V) \n±1.2%rdg±3dgt (600V)
Ω600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) \n±1.0%rdg±5dgt (600Ω) \n±2.0%rdg±3dgt (6/60/600kΩ)
Continuity buzzer600Ω(Buzzer sounds below 90Ω)
Conductor sizeØ33mm max.
Applicable standardsIEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 \nIEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, \nIEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)
Power sourceR03/LR03 (AAA) (1.5V) × 2
Continuous measuring timeApprox.170 hours \n(When R3 is used)(NCV_LED:off) \n(Auto power save approx. 10 minutes)
Dimensions204(L) × 81(W) × 36(D)mm
Weight220g Approx. (including batteries)
Included Accessories7066A (Test leads) \n9079 (Carrying case) \nR03 (AAA) × 2, Instruction Manual
\n




    \n
  • Digital AC Clamp Meter
    • \n
  • Model: KEW2117R
    • \n
  • Brand: Kyoritsu
    • \n
  • Made in Japan
    • \n
