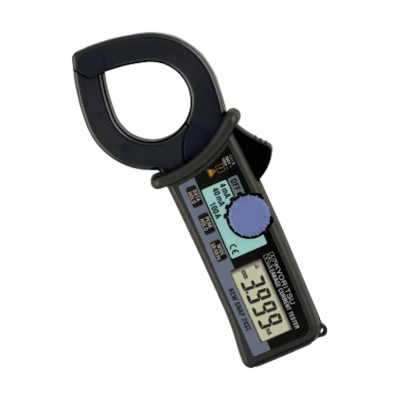

Picture of Kyoritsu Clamp Meter, 2432
Picture of Kyoritsu Clamp Meter, 2432

Kyoritsu Clamp Meter, 2432

Category: Electric Hardware & Tools
SKU: LTBD20958
Seller: Labtex Bangladesh
App Coupon to Get Extra Discount
Tk 48,000
0 review(s)
    \n
  • Leakage Clamp Meters
    • \n
  • Model: 2432
    • \n
  • Brand: Kyoritsu
    • \n
  • Made in Japan
    • \n
*

Call For Order : 09613-800800
The Kyoritsu Clamp Meter, 2432 is a 100A high-sensitivity AC clamp meter, capable of measuring current leakage. Comprising a 40mm jaw, the 2432 model is ideal for detecting wire faults and insulation breakdown. \n
    \n
  • High Sensitive Model
    • \n
  • Frequency Selector Switch to eliminate the effect of harmonics.
    • \n
  • Three AC ranges:4mA/40mA/100A.
    • \n
  • Resolution 0.001mA.
    • \n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
AC A (50/60Hz)4/40mA/100A \n±1%rdg±5dgt (4/40mA) \n±1%rdg±5dgt (0 - 80A) \n±5%rdg (80.1 - 100A)
AC A (WIDE)4/40mA/100A \n±1%rdg±5dgt [50/60Hz], \n±2.5%rdg±10dgt [20Hz - 1kHz] (4/40mA) \n±1%rdg±5dgt [50/60Hz], \n±2.5%rdg±10dgt [40Hz - 1kHz] (0 - 80A) \n±5%rdg [50/60Hz], \n±10%rdg [40Hz - 1kHz] (80.1 - 100A)
Maximum circuit voltage600V AC/DC (between line/neutral) \n300V AC/DC (against Earth)
Conductor sizeØ40mm max.
Frequency response20Hz - 1kHz (40Hz - 1kHz:100A)
Effect of External Stray Magnetic Field2mA AC approx. in proximity to a 15mm-dia \nconductor carrying 100A AC
Safety StandardIEC 61010-1 CAT III 300V Pollution Degree 2 \nIEC 61010-2-032
Response TimeApprox. 2 seconds
Power sourceTwo R03 or equivalent (DC1.5V) batteries
Dimensions185(L) × 81(W) × 32(D)mm
Weight290g approx.
Included Accessories9097 (Carrying Case) \nR03 (1.5V) × 2 \nInstruction Manual
\nClick for More Information




    \n
  • Leakage Clamp Meters
    • \n
  • Model: 2432
    • \n
  • Brand: Kyoritsu
    • \n
  • Made in Japan
    • \n
