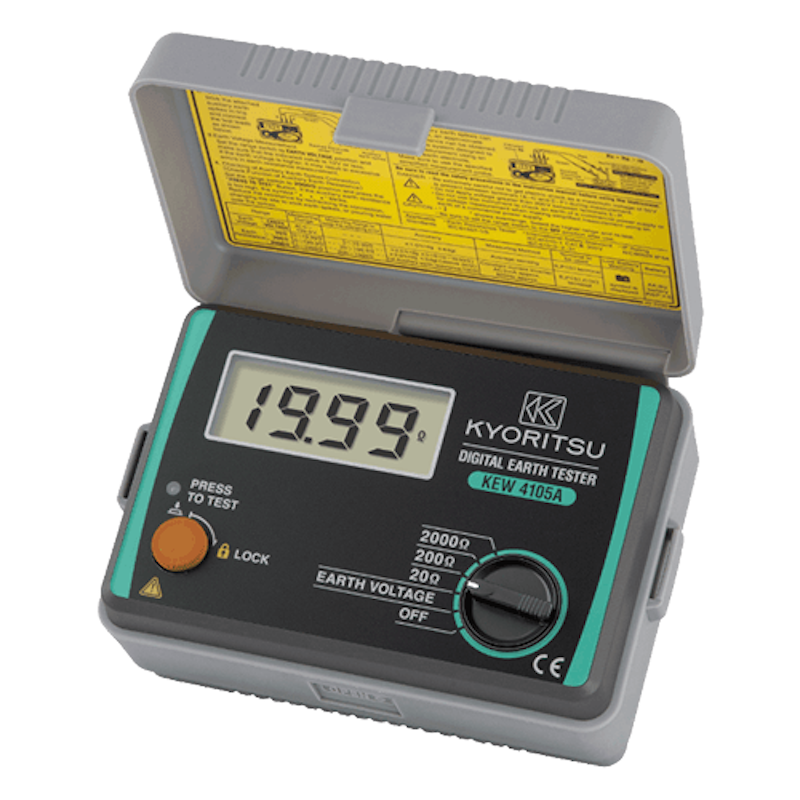

Picture of Kyoritsu 4105A Digital Earth Tester, Thailand
Picture of Kyoritsu 4105A Digital Earth Tester, Thailand
Picture of Kyoritsu 4105A Digital Earth Tester, Thailand
Picture of Kyoritsu 4105A Digital Earth Tester, Thailand
Picture of Kyoritsu 4105A Digital Earth Tester, Thailand
Picture of Kyoritsu 4105A Digital Earth Tester, Thailand

Kyoritsu 4105A Digital Earth Tester, Thailand

Category: Industrial & Others
SKU: LTBD15892
Seller: Labtex Bangladesh
App Coupon to Get Extra Discount
Tk 36,000
0 review(s)
    \n
  • Digital Earth Tester
    • \n
  • Measuring Range: 0.00 - 1999Ω
    • \n
  • Model: KEW 4105A
    • \n
  • Brand: Kyoritsu
    • \n
  • Made in Thailand
    • \n
\n
*

Call For Order : 09613-800800
Kyoritsu 4105A Digital Earth Tester in addition to the facility for precision measurement, test leads for simplified two-wire measuring systems are also supplied as standard accessories. (unit can be hung from the neck for simplified measurement). This Earth Tester originated in Japan but was made in Thailand. \n

Features of Kyoritsu 4105A Digital Earth Tester

\n
    \n
  • The latest circuit design permits the instrument to operate with the minimum influence from earth voltage and earth resistance of auxiliary earth spikes.
    • \n
  • KYORITSU 4105A Digital Earth Resistance Tester is capable of measuring earth voltage.
    • \n
  • Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
    • \n
  • Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by "OK" lamp. Lead wire connection to C and E terminals is good when "OK" lamp is illuminated.
    • \n
  • Dust and drip proof. (designed to IEC 60529 IP54).
    • \n
  • The earth resistance value can be read directly from the scale.
    • \n
  • Designed to meet IEC 61010-1 safety standards.
    • \n
  • Capable of measuring earth voltage.
    • \n
  • Small and lightweight. Shock-resistant new case material.
    • \n
  • 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
    • \n
\n

Specifications of 4105A Earth Tester

\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Earth resistance \nmeasurement20Ω200Ω2000Ω
Measuring range0.00 - 1999Ω
Display range0.00 - 19.99Ω0.0 - 199.9Ω0 - 1999Ω
Accuracy±2%rdg±0.1 Ω±2%rdg±3dgt
Earth voltage measurement
Measuring range0 - 200 V AC (50,60Hz)
Display range0.0 - 199.9 V
Accuracy±1%rdg±4dgt
Overload protectionEarth resistance : 280V AC (10 seconds) \nEarth voltage : 300V AC (1 minute)
Applicable standardsIEC 61010-1 CAT Ⅲ300 V Pollution degree 2 \nIEC 61010-2-030, IEC 61557-1,5, IEC 60529 (IP54)
Power sourceR6(AA)(1.5V) × 6
Dimension105(L) × 158(W) × 70(D) mm (including case lid)
WeightApprox. 550g (including batteries and case lid)
Accessories7095A (Earth resistance test leads (Red 20m, Yellow 10m, Green 5m/1set)) \n7127B (Simplified measurement probe) \n8032 (Auxiliary earth spikes[2 spikes/1set]) \n9121 (shoulder strap) \n9084 (Carrying case) \nR6(AA) × 6, Instruction manual
Optional accessories7245A (Precision measurement cord set) \n8259 (Adapter for measurement terminal) \n9165 (Carring case [Hard])
\n
\n \n[caption id="attachment_34280" align="alignnone" width="640"]Kyoritsu 4105A Digital Earth Tester Box Kyoritsu 4105A Digital Earth Tester Box[/caption] \n \n[caption id="attachment_34281" align="alignnone" width="640"]Kyoritsu 4105A Digital Earth Tester Certificate Kyoritsu 4105A Digital Earth Tester Certificate[/caption]




    \n
  • Digital Earth Tester
    • \n
  • Measuring Range: 0.00 - 1999Ω
    • \n
  • Model: KEW 4105A
    • \n
  • Brand: Kyoritsu
    • \n
  • Made in Thailand
    • \n
\n
