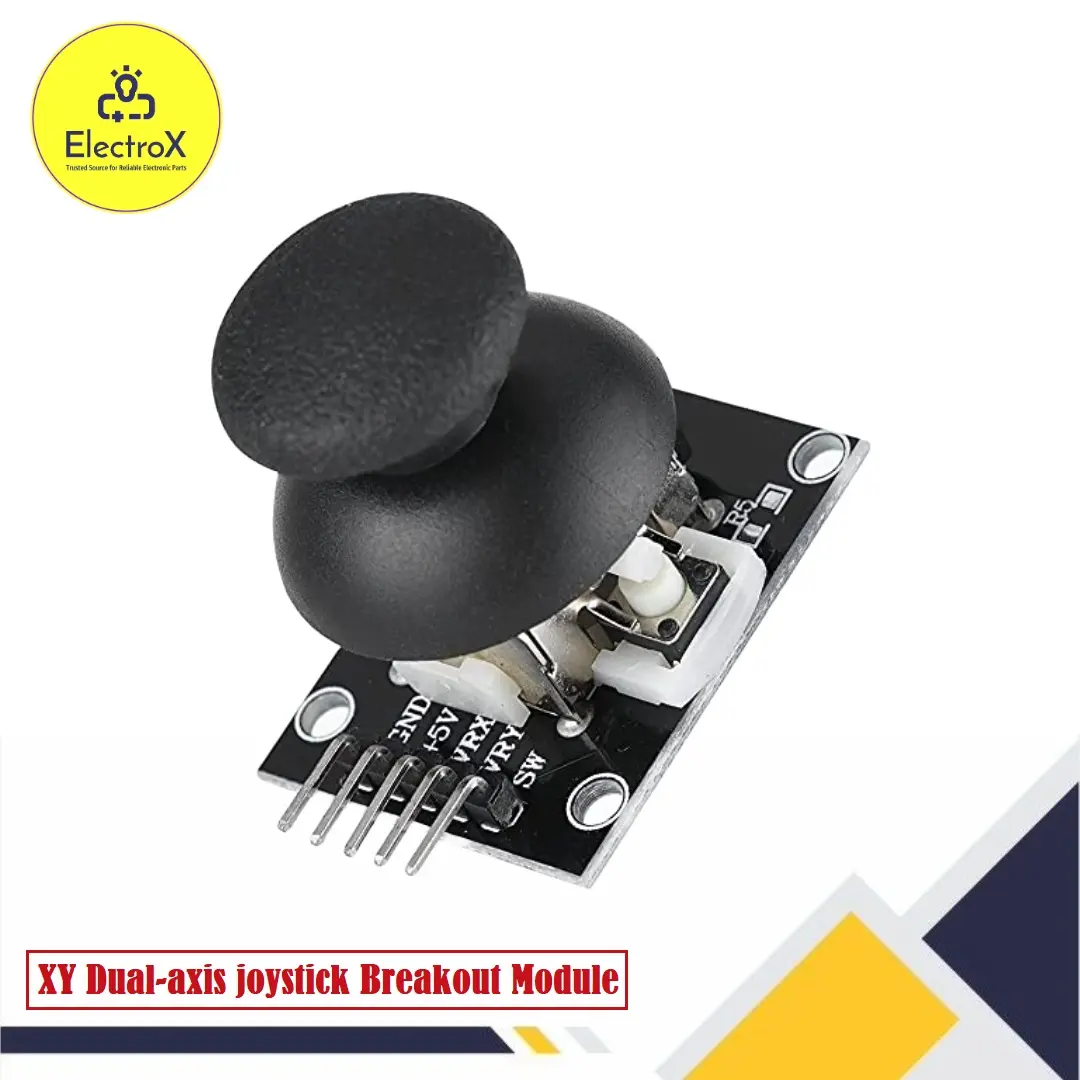

Analog joystick-like devices used for example Controllers PlayStation second detection directions of traffic is carried by two potentiometers – one (4.7 k Ω ) on each axle. The device also has a button activated by pressing the knob . To operate the device, all you need is a microcontroller with an analog-to-digital converter (analog input in Arduino ). The location information of the knob is transmitted through an analog signal, in which the voltage corresponds to the given position. Each axis has a separate analogue output. The state of the button is detected by a digital output which, when switched on, becomes low.

1. Input voltage range: DC 3.3V to 5V

2. Output signal: the module has two-way analog output and a digital output interface, the output value corresponding to (X, Y) bi-axial offset, the type of analog; keys that the user press, the Z axis is a push switch read as digital input.

3.Arduinocontroller can be programmed, the sensor expansion board plug, complete with creative remote interactive works.

4. Crossjoystickis a bi-directional 10K resistor, with the rocker in different directions, the resistance should be changed by moving the lever. This module uses 5V power supply, the original state of X, Y read voltage of 2.5V or so, when pressed with the arrow direction, the read voltage value increases with the maximum to 5V, voltage decreases while move lever in opposite direction, The minimum is 0V.

You have to use 2 analog inputs of MCU to read (X Y) the analog output of this module, the switch is a button which you may use with a digital input pin of your Micro Controller eg.Arduino,Raspberry Pi,Orange Pi,NodeMCU,ESP32,ARMAVR development boards.
