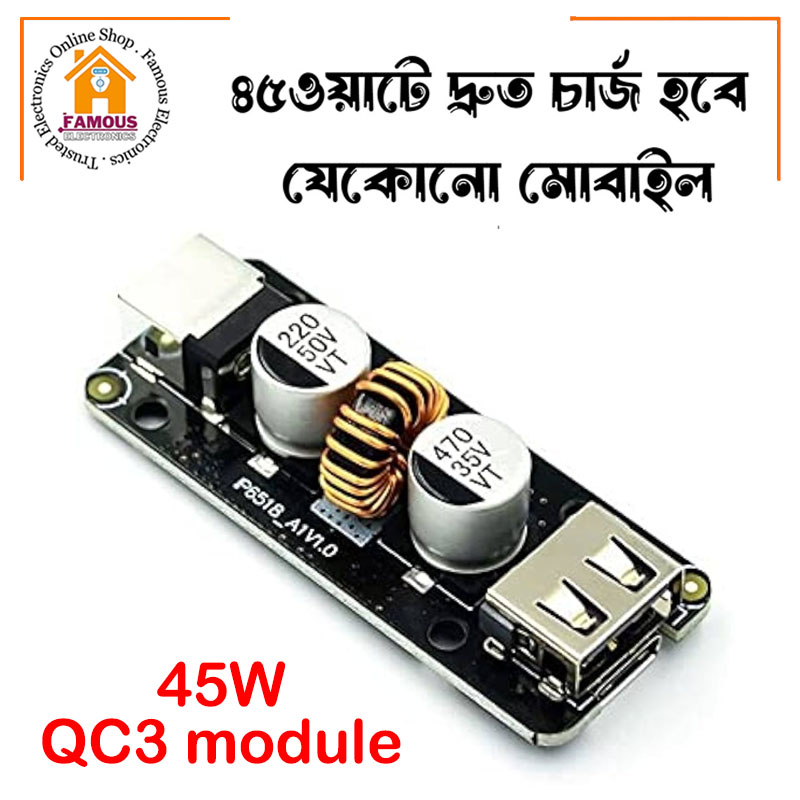

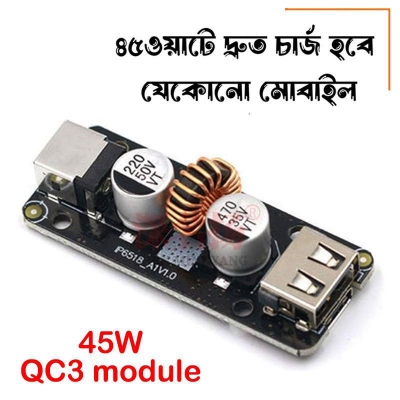

Parameters:
Input voltage range: 10.5V-32V
Output voltage range: 3V-20V (automatically adjusted according to fast charging protocol, input should be higher than output by more than 2V)
Output power: 45W
Output current:
3V@3.6A / 5V@3.4A
7V@3A / 9V@3A / 12V@3A
15V@2.3A / 20V@2.3A
PD output voltage: 5V, 7V, 9V, 12V, 15V, 20V
Line compensation function: 125mv/A
Conversion efficiency reaches 97%

Important reminder:
The power pins of the Type-C output port and the USB output port are in parallel, and the two output ports are not allowed to be used simultaneously, otherwise it will damage the charged device.
Due to the use of a 5A high current USB socket with low contact resistance, during low voltage high current charging such as SCP, the charging current may exceed 3.4A, resulting in IP6518 overcurrent protection. Please use a charging wire with high internal resistance at this time.

Package include:
Fast charging module * 1

Features:
1.Use high-quality materials for durability
2.Full protocol fast charging, supporting the fast charging protocols of most mobile phones on the market
3.Small size and simple application, with TYPE-C and USB dual output ports
4.Efficient and stable performance, long working life
5.Wide citation range

Parameters:
Input voltage range: 10.5V-32V
Output voltage range: 3V-20V (automatically adjusted according to fast charging protocol, input should be higher than output by more than 2V)
Output power: 45W
Output current:
3V@3.6A / 5V@3.4A
7V@3A / 9V@3A / 12V@3A
15V@2.3A / 20V@2.3A
PD output voltage: 5V, 7V, 9V, 12V, 15V, 20V
Line compensation function: 125mv/A
Conversion efficiency reaches 97%

Important reminder:
The power pins of the Type-C output port and the USB output port are in parallel, and the two output ports are not allowed to be used simultaneously, otherwise it will damage the charged device.
Due to the use of a 5A high current USB socket with low contact resistance, during low voltage high current charging such as SCP, the charging current may exceed 3.4A, resulting in IP6518 overcurrent protection. Please use a charging wire with high internal resistance at this time.

Package include:
Fast charging module * 1
