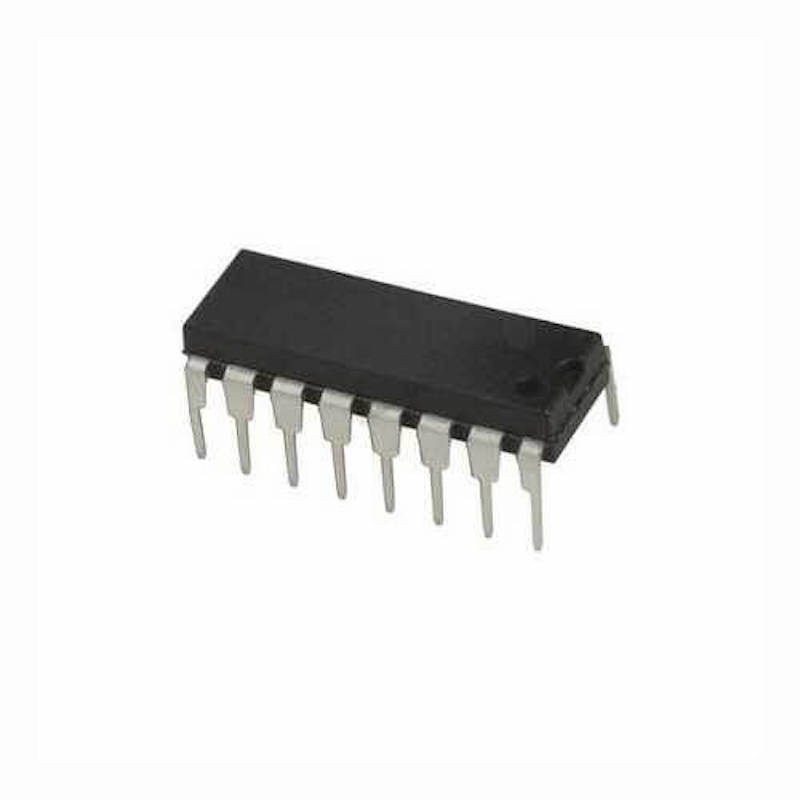

The INA125P IC is an instrumentation amplifier (IC) from Texas Instruments with a precision voltage reference. It is a low-power, high-accuracy amplifier that offers complete bridge excitation and precision differential-input amplification on a single integrated circuit. The INA125P has a voltage reference that can be externally adjusted with pin-selectable voltages of 2.5V, 5V, or 10V, allowing use with a variety of transducers. It also has a sleep mode that allows shutdown and duty cycle operation to save power. The INA125P is available in 16-pin plastic DIP and SO-16 surface-mount packages and is specified for the –40°C to +85°C industrial temperature range. \n \nAPPLICATIONS \n

\n
• PRESSURE AND TEMPERATURE BRIDGE AMPLIFIERS
\n
• INDUSTRIAL PROCESS CONTROL
\n
• FACTORY AUTOMATION
\n
• MULTI-CHANNEL DATA ACQUISITION
\n
• BATTERY OPERATED SYSTEMS
\n
• GENERAL PURPOSE INSTRUMENTATION
\n

\nClick to Know More

\n
• LOW QUIESCENT CURRENT: 460µA
\n
• PRECISION VOLTAGE REFERENCE: 1.24V, 2.5V, 5V or 10V
\n
• SLEEP MODE
\n
• LOW OFFSET VOLTAGE: 250µV max
\n
• LOW OFFSET DRIFT: 2µV/°C max
\n
