- Model: Huananzhi B250-D4
- Supports Intel 6th/7th/8th/9th Gen LGA 1151 platform Processors
- Dual-Channel DDR-4, 2 DIMMs
- M.2 2280 NVME PCIE X4 3.0 32Gbps
- VGA +HDMI +DP interface

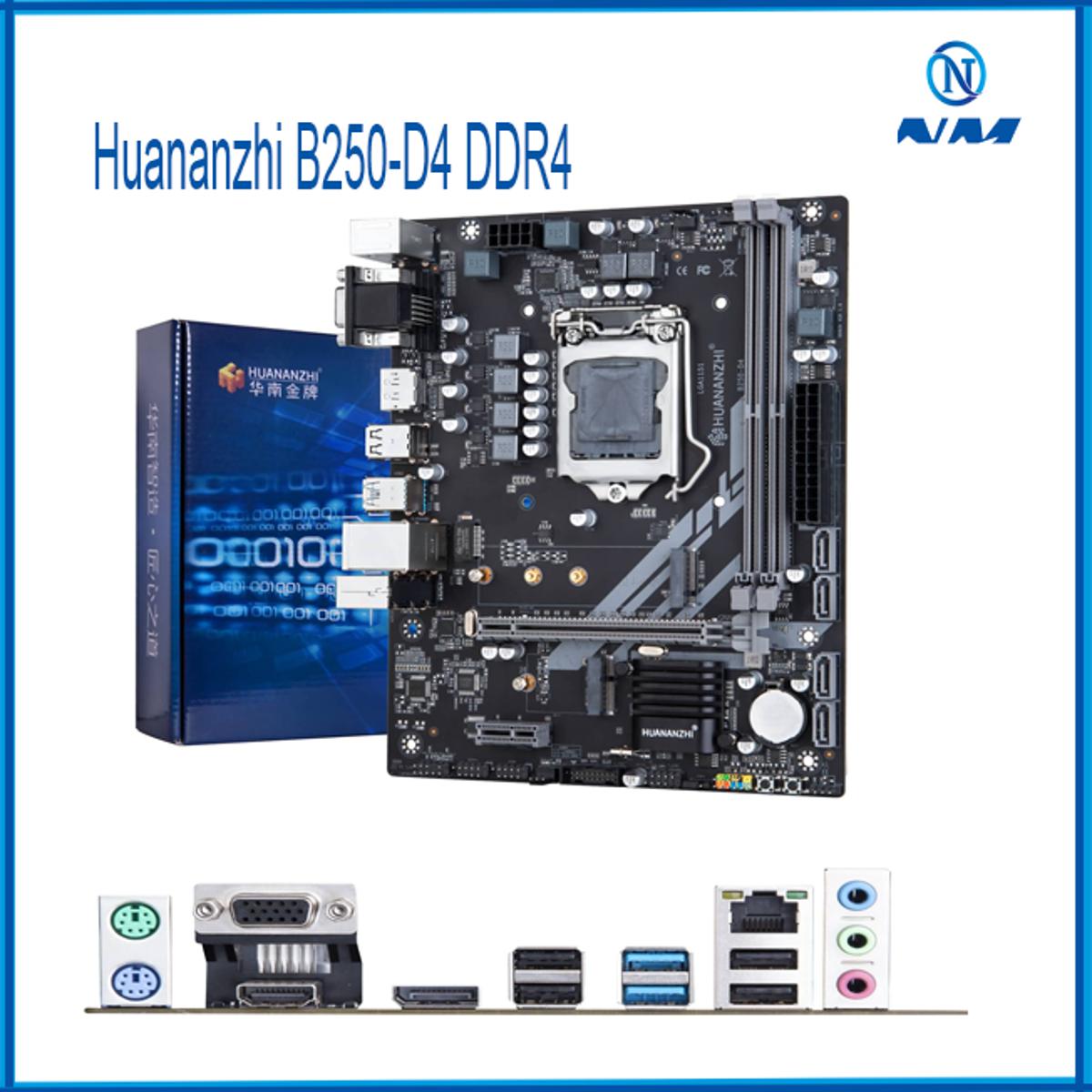

Huananzhi B250-D4 intel (6th/7th/8th/9th) Gen M-ATX Motherboard
Brands |
HUANANZHI |
---|---|
Model |
B250-D4 |
CPU Socket |
Supports Intel LGA 1151 family processors with 6th/7th/8th/9th generation processors |
Memory Socket |
2xDDR4 Memory Socket |
Memory standard |
Support dual channel DDR4 2666/2400/2133MHz memory support up to 32GB |
Storage interface |
4 SATA3.0 interfaces |
Extension interface |
I0: 1 PS2 mouse/keyboard universal port, 4 USB2.0 interfaces, 2 USB3.0 interfaces, 1 network interface, 3 3.5mm audio interfaces (audio input/audio output/front speaker output/microphone input) |
Expansion pin |
1 set of 9pin USB2.0 pin;1 set of 19pin USB3.0 pin;1 front audio output pin |
Expansion slot |
1 PCI Express3.0x16 slot, 1 PCI Express3.0x1 slot, 1 M.2 NVME protocol interface (2.0×4) |
The onboard soundcard |
ALC662 5.1 -channel |
Onboard nic |
Gigabit NICs |
The power interface |
24pin+8pin |
Fan interface |
2 |
The layer number of PCB |
4 layers, 5-phase power supply |
Dimension |
215x168mm |
Color |
Black |
Warranty |
03 Years Replacement Warranty |
Warranty: 3 Years Warranty
Note: Product delivery duration may vary due to product availability in stock.
Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
