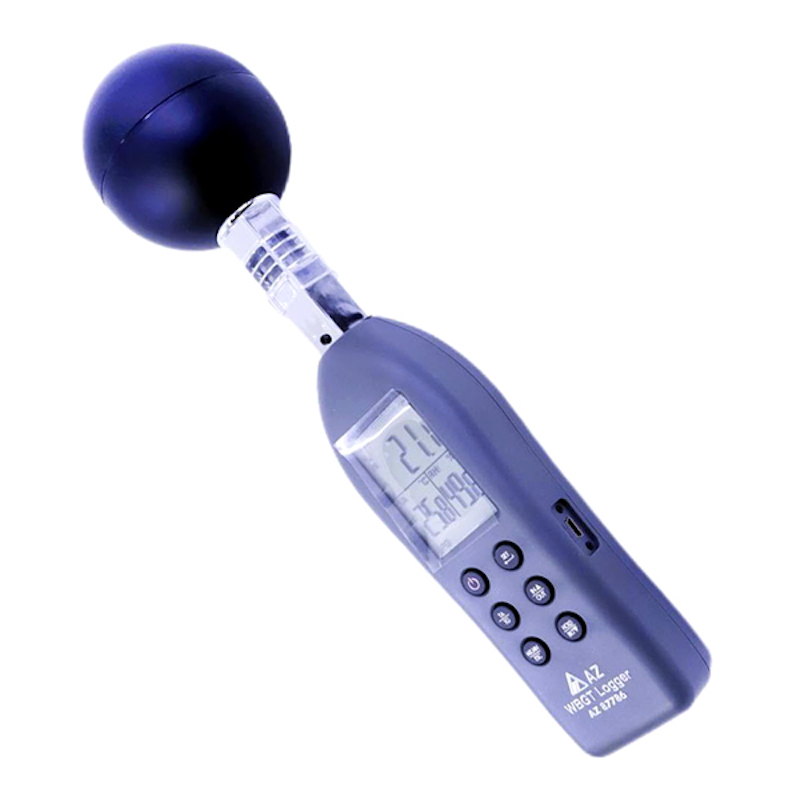

AZ87786 Handheld WBGT Data Logger Wet Bulb Globe Temperature Meter WBGT Meter with Data Logger Heat Index Checker. The 87786 AZ Portable WBGT Recorder could be operated by industrial hygienists, athletes, and the military to determine appropriate exposure levels to high temperatures. Military agencies, OSHA, and many nations use the WBGT as a guide to manage workload in direct sunlight. \n \nUsers could record and download the real-time value of 87786 AZ Portable WBGT Recorder via a mini USB cable to a PC for data analysis. There is no need to install a USB driver or software before operating the logging function. It could be operated as a USB memory flash drive easily on a PC. There is a tripod hole on the bottle of 87786 AZ Portable WBGT Recorder. Users could use the tripod to hold the device vertically for long-term use. \n \nIt could be applied for measuring the WBGT value in construction, iron and steel foundries, brick-firing plants, glass facilities, boiler rooms, mining sites, army training, marathons, beach activities, and so on. 87786 AZ Portable WBGT Recorder was being designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring. \n

Specification of 87786 AZ Portable Heat Index Checker WBGT Recorder: \n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Model	87786
Temperature Range	0~50℃
Temperature Resolution	0.1℃, 0.1℉
Temperature Accuracy	±0.6℃
Humidity Range	0.1~99.9% RH
Humidity Resolution	0.1% RH
Humidity Accuracy	±3%RH (at 25℃, 10~90%RH); \nothers ±5%RH
Global Temperature (Inside Black Ball)	0~80℃
Global Temp. Accuracy (Indoor)	±1℃at 15~40℃, others ±1.5℃
Global Temp. Accuracy (Outdoor)	±1.5℃at 15~40℃, others ±2℃
WBGT Temperature Range	0~50℃
WBGT Alarm Range	20~50℃
Sampling Rate	1, 5, 10, 30, 60, 90, 120 mins
Start Delay Time	0, 5, 30, 45, 60, 90, 120 mins
Memory Points	12000 readings, each contains \nWBGT, TA, TG, and RH
Black Ball Size	Diameter 75 mm, Height 75 mm
Stabilization Time	15~25 minutes typical
RH% Self Calibration	With 33% & 75% Salt Bottle
Operating Temperature	0~50℃
Operating RH%	Humidity ＜80%
Storage Temperature	-20~50℃
Storage RH%	Humidity ＜90%
LCD Size	50(L) * 32(W) mm
Meter Size	302(L) * 75(W) * 36.7(H) mm
Weight	~300g
Battery	AAA*4PCS
Battery Life	~200 hours
Standard Package	Meter, Batteries, Manual, \nMini USB cable, Paper Box

\nClick to See the Operational Procedure \n \n

\n
• Wet Bulb Globe Temperature Meter with Data Logger
\n
• Model: AZ87786
\n
• Brand: AZ Instruments
\n
• Made in Taiwan
\n
• This is not our ready-stock product. We will supply it within 20 days of confirming the order and 50% advance of payment.
