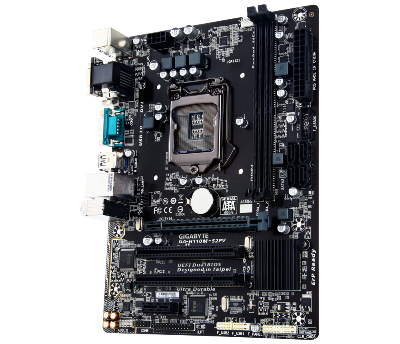

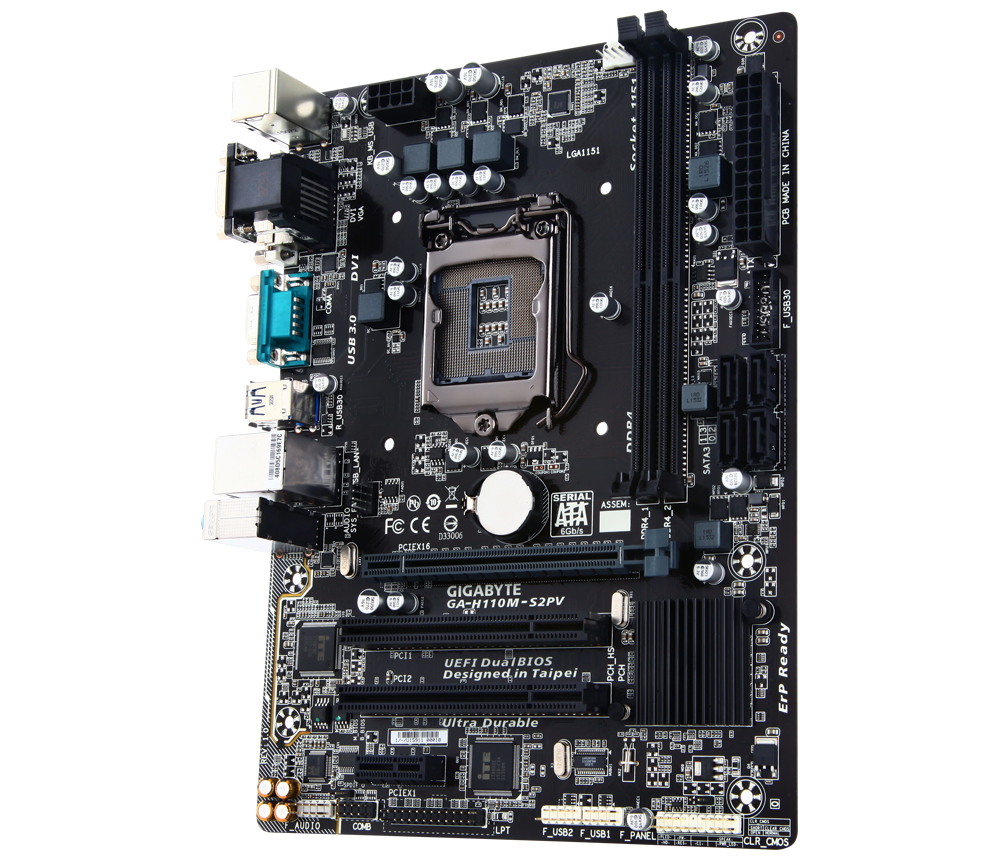

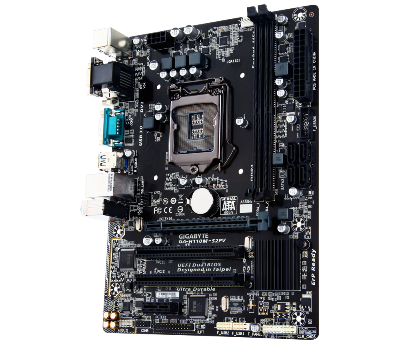

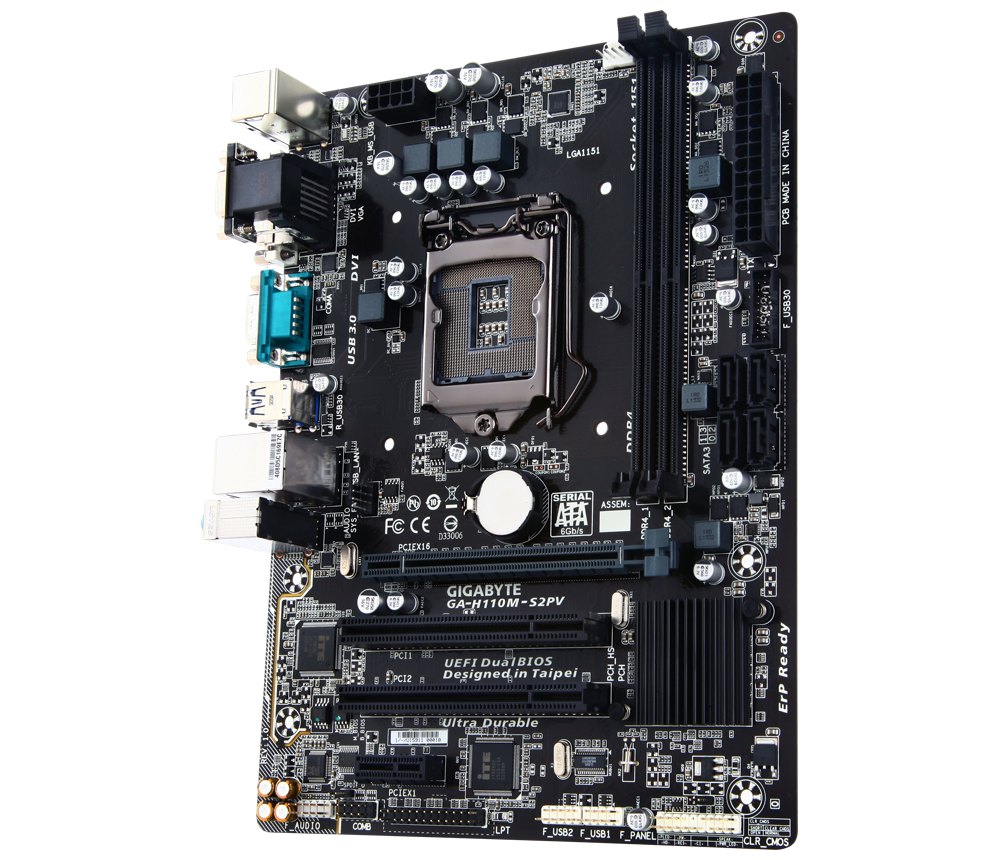

Gigabyte GA-H110M DDR4 6th 7th Gen Motherboard

Name: Gigabyte GA-H110M DDR4 6th 7th Gen Motherboard
SKU: NMTE81793
Price: 7,500 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: NMTE81793

Seller: NM Technology & Engineering

bKash 10% Cashback ( T&C)

Tk 4,575

Tk 7,500

39% OFF

0 review(s)

Call For Order : 09613-800800

Model H110 DS2 - DS2V-S2PV Rtc
Chipset - Intel H110
Memory Max. - 32GB
Memory Slot - 2
Sockets Supported - LGA1151
Supported CPU - 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors
Generation - 6th/7th

Basic Information
Supported CPU	Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU
Chipset	Intel® H110 Express Chipset
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Max Shared Memory	1024 MB
Memory
Type	Dual channel DDR4 memory architecture
Slots	2 x DIMM
Supported Memory	Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory	32 GB
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Connector & Ports
HDMI	1 x HDMI
D-Sub (s)	1 x D-Sub
USB (s)	Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	4 x SATA 6Gb/s connectors
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	01 Years Korean Motherboard

Warranty: 1 Years Warranty
