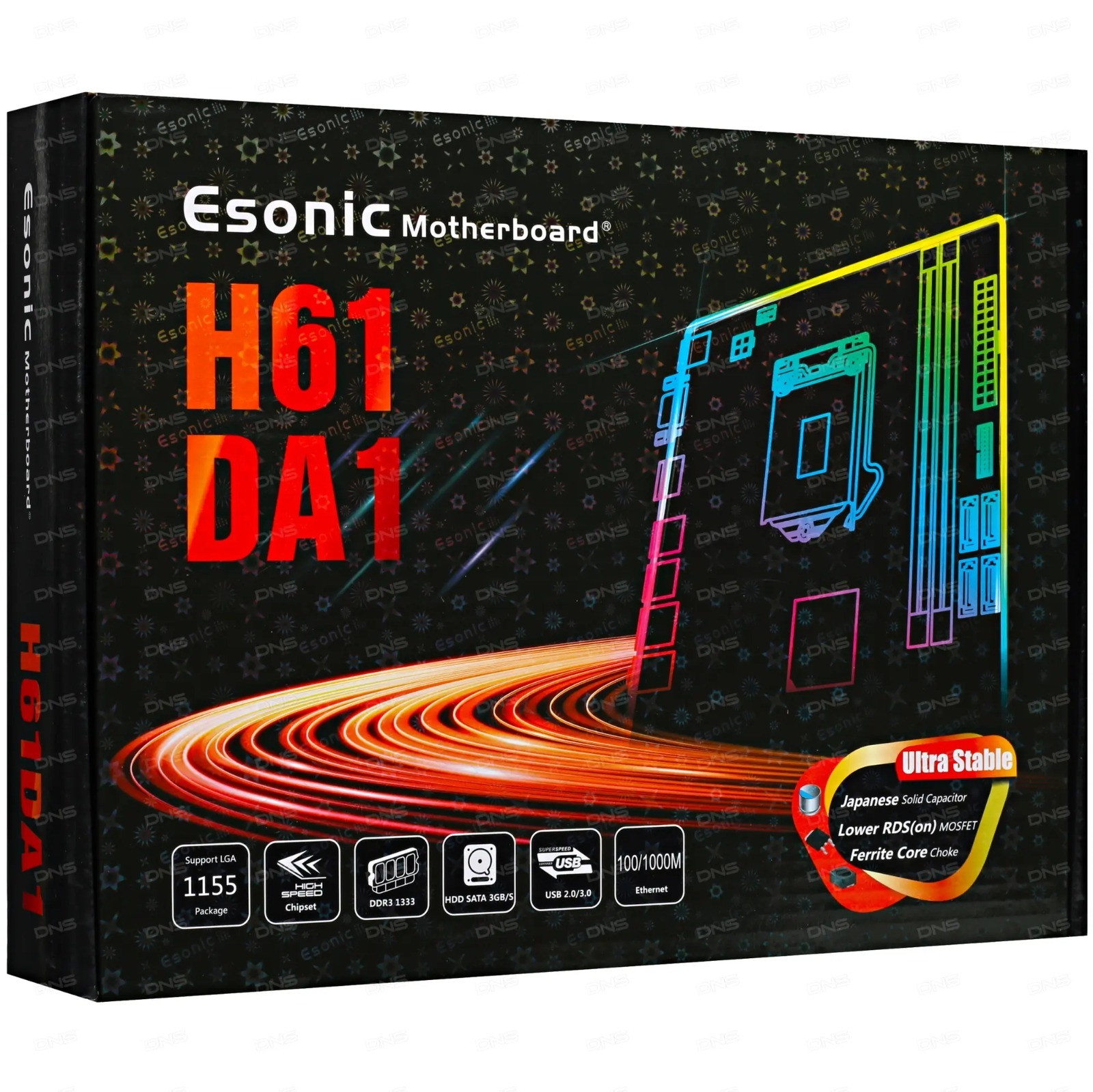

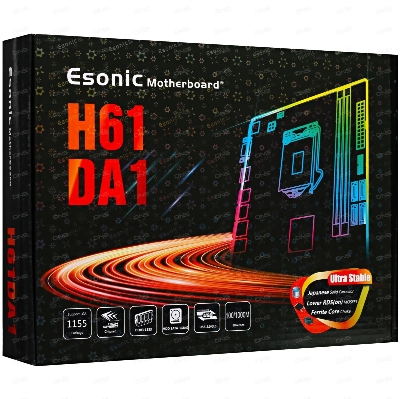

Esonic H61DA1 DDR-3 2nd/3rd Gen Processor Support NVME Support Micro-ATX Motherboard

Name: Esonic H61DA1 DDR-3 2nd/3rd Gen Processor Support NVME Support Micro-ATX Motherboard
SKU: NMTE52248
Price: 4,050 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: NMTE52248

Seller: NM Technology & Engineering

App Coupon & 10% Extra Savings ( T&C)

Tk 2,956

Tk 4,050

27% OFF

0 review(s)

Call For Order : 09613-800800

Model: Esonic H61DA1
Intel Socket LGA1155 for 2nd/3rd Gen Core i7/ i5/i3 Processors
Memory Support DDR-3 1333/1600MHz
Storage- 4X SATA3.0 6Gb/s
M.2 Nvne PCIE-X16, PCIE-X1, SATA 3.0, USB 3.0

Brand	Esonic
Model	H61DA1
Processor	Support Intel® Socket 1155 for 2nd/3rd Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® H61
Memory support	2 * DDR3 1066/1333/1600MHz DIMM
Graphic	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HD / VGA ports
Slots	1 x PCIe x16 slot 1 x PCIe x1 slot
Storage	1 x M.2 Nvne Socket, Supports 2242 SSD 4 x SATA 3Gb/s Ports
LAN	Realtek Chip, 1 x 100M（Optional 1000M）
Audio	Realtek Chip, ALC 6-channel audio
USB	10 * USB 2.0 port (6 at back panel, black, 4 at mid-board)
Back Panel I/O	1 x VGA Port 1 x HDMI Port 1 x LAN (RJ45) Port 6 x USB 2.0 Ports 3 x flexible audio jacks
Internal I/O	1 x USB 19pin connector， supports 2USB 2.0 ports 1 x USB 2.0 connector， supports 2USB 2.0 ports 4 x SATA 3Gb/s Ports 1 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector 1 x DEBUG connector
Dimension	213 x 170mm
Color	Black
Warranty	01 year warranty

Warranty: 1 Years Warranty
Note: Product delivery duration may vary due to product availability in stock.
Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
