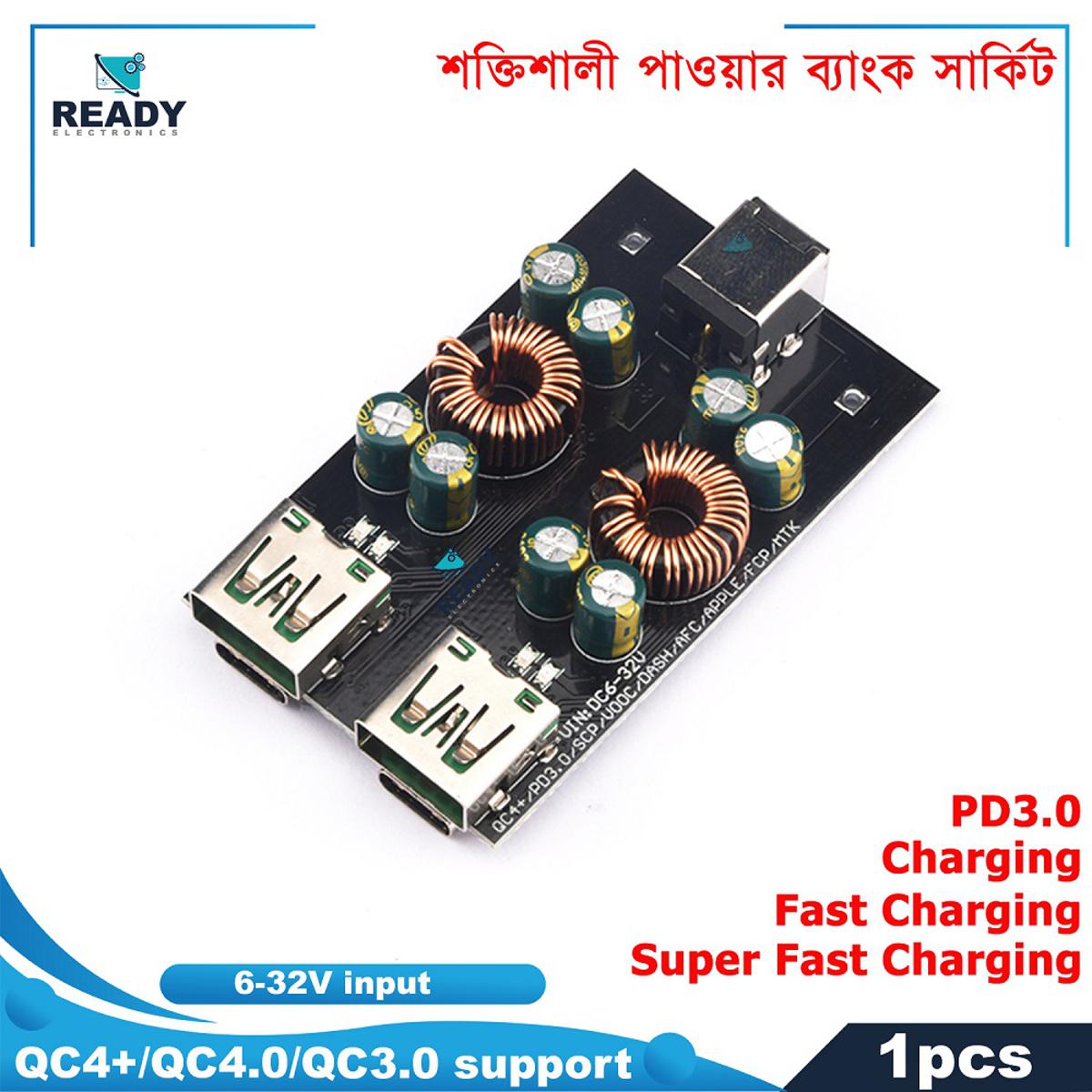

Picture of DC 6V-32V SW3518S 2 Way USB PD3.0 Phone Fast Charging Power Step-down Module USB PD3.0 (PPS) support Qualcomm QC4+/QC4.0/QC3.0 support
Picture of DC 6V-32V SW3518S 2 Way USB PD3.0 Phone Fast Charging Power Step-down Module USB PD3.0 (PPS) support Qualcomm QC4+/QC4.0/QC3.0 support

DC 6V-32V SW3518S 2 Way USB PD3.0 Phone Fast Charging Power Step-down Module USB PD3.0 (PPS) support Qualcomm QC4+/QC4.0/QC3.0 support

Category:
SKU: RDE02171
Seller: READY ELECTRONICS
App Coupon & 10% Extra Savings ( T&C)
Tk 1,120
Tk 1,600
Tk 1,600
30% OFF
0 review(s)



  • Input voltage: DC6-32V
  • Input mode: red (+) black (-) wire (high-current direct current DC female connector)
  • Output port: USB or type-C
  • Qualcomm QC4+/QC4.0/QC3.0 support
  • Huawei SCP/FCP support
  • OPPO VOOC partial support
  • Apple 2.4A support
  • Samsung AFC support
  • OnePlus DASH support
  • VIVO 9V2A dual-engine flash charging support MediaTek PE2.0 support
  • Indicator light: blue light is output indicator, red light is fast charge status indicator
  • Dual independent current limiting
  • Support multi-protocol: USB PD3.0 (PPS) support
  • Adopt high-efficiency and full-power external MOS tube
  • Double-wire parallel-wound sendust magnetic ring, high charging efficiency
  • Lower heat generation under charging power
  • Dual parallel low-resistance electrolytic capacitors + 6 1206 ceramic capacitors at the same time input anti-reverse connection using a dedicated MOS tube for anti-reverse connection
  • Support most mobile phones on the market



Call For Order : 09613-800800
Charging test point:Multi-brand mobile phone charging test USB port:1. Charging Huawei Mate20 (56% power): Turn on SCP fast charging mode, voltage 4.89V, current 4.59A2. Charging Huawei P20 Pro (12% power): Turn on SCP fast charge mode, voltage 5.03V, current 4.25A3. Charge Honor V20 (43% power): Turn on SCP fast charge mode, voltage 5.13V, current 4.5A4. Charge Xiaomi Mi 8 (18% power): Turn on QC3.0 fast charge mode, voltage 6.44V, current 2.79A5. Charge OPPO R17 (43% power): Turn on VOOC flash charging mode, voltage 4.8V, current 3.8A6. Charge iPhone XS (5% battery): Turn on APPLE2.4A mode, voltage 5.22V, current 2.37A7. Charge OnePlus 6T (15% power): Turn on DASH flash charging mode Voltage 4.7V, current 3.8AType_C port:Charge iPhone XR (7% battery): Turn on the PD voltage 9.17V, current 1.91A2. Charge iPhone X (7% battery): Turn on PD voltage 9.17V, current 1.6A3. Charge Mate20Pro (55% power): Turn on the PD voltage 9.20V, current 1.58A4. Charging Huawei P20 Pro (10% power): Turn on PD voltage 9.17V, current 1.69A5. Charge Honor V20 (40% power): Turn on PD voltage 9.05V, current 1.7A6. Charge Xiaomi Mi 8 (power 6%): turn on fast charge voltage 6.1V, current 2.63AProduct List:Charging module*1
Product Feature:1. Adopt high-efficiency and full-power external MOS tube2. Double-wire parallel-wound sendust magnetic ring, high charging efficiency3. Lower heat generation under charging power4. Dual parallel low-resistance electrolytic capacitors + 6 1206 ceramic capacitors at the same time input anti-reverse connection using a dedicated MOS tube for anti-reverse connection5. Support most mobile phones on the marketThe main parameters:1. Input voltage: DC6-32V2. Input mode: red (+) black (-) wire (high-current direct current DC female connector)3. Output port: USB or type-CFeatures:1. Indicator light: blue light is output indicator, red light is fast charge status indicator2. Dual independent current limiting3. Support multi-protocol: USB PD3.0 (PPS) supportQualcomm QC4+/QC4.0/QC3.0 supportHuawei SCP/FCP supportOPPO VOOC partial supportApple 2.4A supportSamsung AFC supportOnePlus DASH supportVIVO 9V2A dual-engine flash charging supportMediaTek PE2.0 supportPrecautions:1. When the USB port and TYPE_C port are plugged into the mobile phone at the same time, both ports are 5V output!2. For low-voltage and high-current fast charging, please use the original data cable. If you want to measure the charging voltage and current, you must use a low-resistance USB meter! Otherwise it will affect the charging current!3. USB port is required to charge OPPO and OnePlus mobile phones! Protocols such as QC4+/QC4.0/PD3.0 must use TYPE_C port!4. When the power supply voltage is higher than 21 volts, the C-port PD protocol supports up to 20V3A output, and the module is small in size. Please ventilate and dissipate it when used in a notebook with PD charging!5. TYPE_C port is used for output charging; with C-TO-C/TYPE_C male-to-male dual-head data cable to charge mobile phones or laptops!







  • Input voltage: DC6-32V
  • Input mode: red (+) black (-) wire (high-current direct current DC female connector)
  • Output port: USB or type-C
  • Qualcomm QC4+/QC4.0/QC3.0 support
  • Huawei SCP/FCP support
  • OPPO VOOC partial support
  • Apple 2.4A support
  • Samsung AFC support
  • OnePlus DASH support
  • VIVO 9V2A dual-engine flash charging support MediaTek PE2.0 support
  • Indicator light: blue light is output indicator, red light is fast charge status indicator
  • Dual independent current limiting
  • Support multi-protocol: USB PD3.0 (PPS) support
  • Adopt high-efficiency and full-power external MOS tube
  • Double-wire parallel-wound sendust magnetic ring, high charging efficiency
  • Lower heat generation under charging power
  • Dual parallel low-resistance electrolytic capacitors + 6 1206 ceramic capacitors at the same time input anti-reverse connection using a dedicated MOS tube for anti-reverse connection
  • Support most mobile phones on the market
