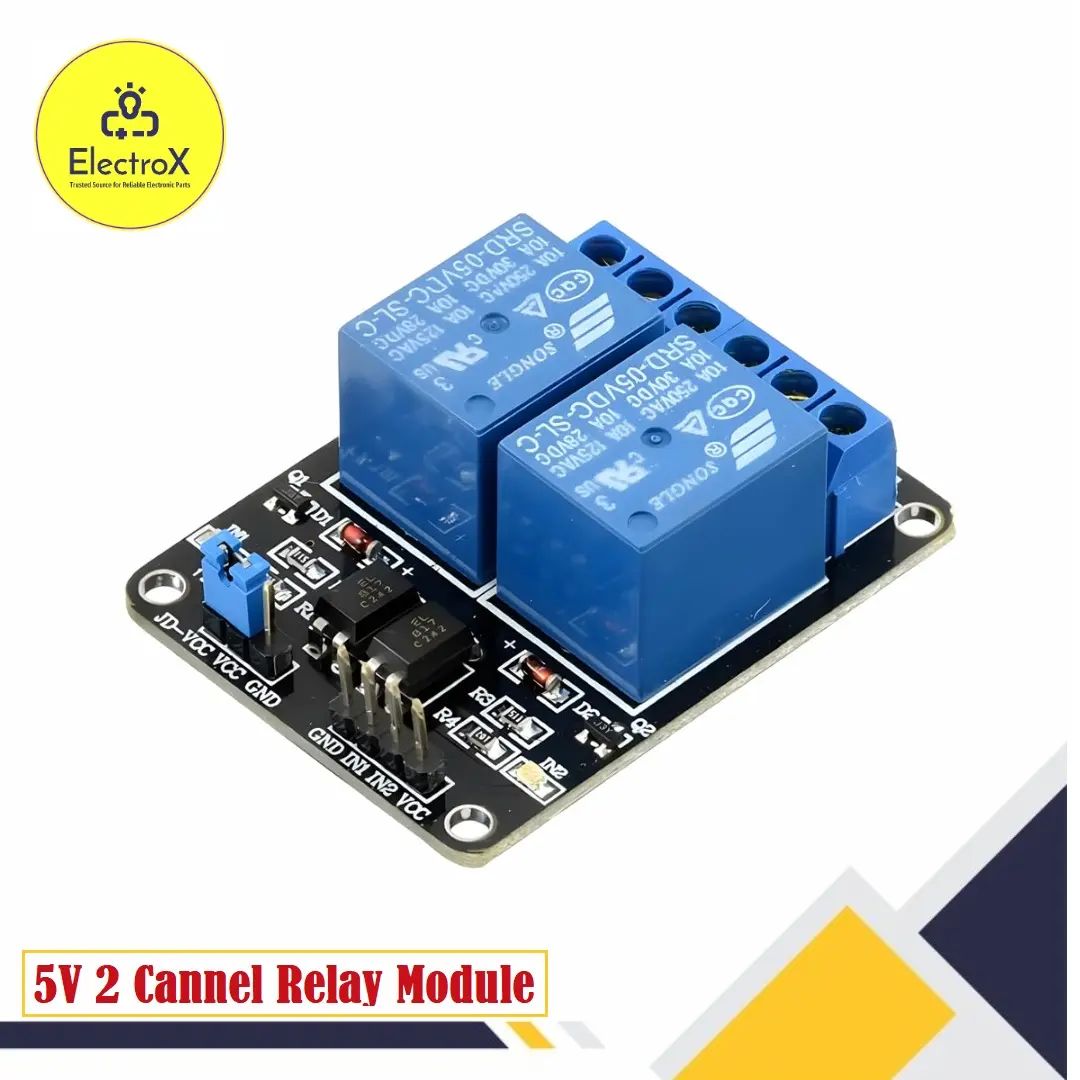

Number of Channels: 2 channels, indicating that the module can control two independent circuits.
Operating Voltage: 5V DC, meaning the module is designed to work with a 5V power supply.
Current Rating: The current-carrying capacity of each relay channel, typically specified in amps (e.g., 10A). This indicates the maximum current the module can switch for each channel.
Control Signal: The input signal required to trigger the relay. In this case, it would be a 5V signal.
Triggering Current: The current required to activate the relay. This is important to ensure that your control circuit can supply enough current to trigger the relay.
Input Signal Compatibility: Indicates the types of input signals the module can accept, such as digital signals from microcontrollers or other devices.
Relay Type: Specifies the type of relay used, commonly electromagnetic relays in these modules.
Isolation: Mention if the module has opto-isolation or other means of isolating the input and output sections for safety and to prevent interference.
Maximum Switching Power: The maximum power that the relay contacts can switch, usually specified in watts.
Switching Time: The time it takes for the relay to transition from one state to another.
Indication LEDs: Whether there are LEDs to indicate the status of each relay channel, such as when it's active.
Size and Dimensions: Physical dimensions of the module.
