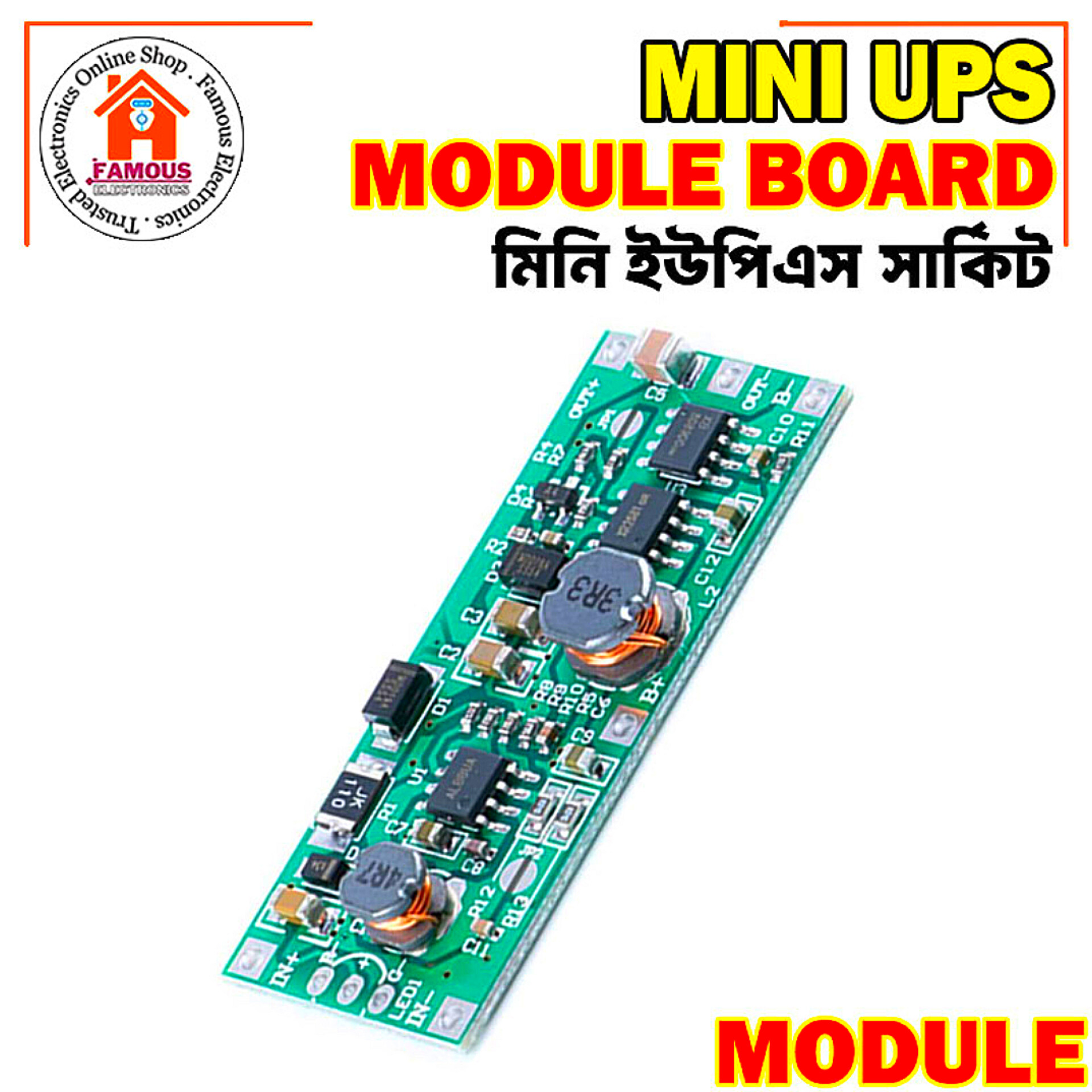

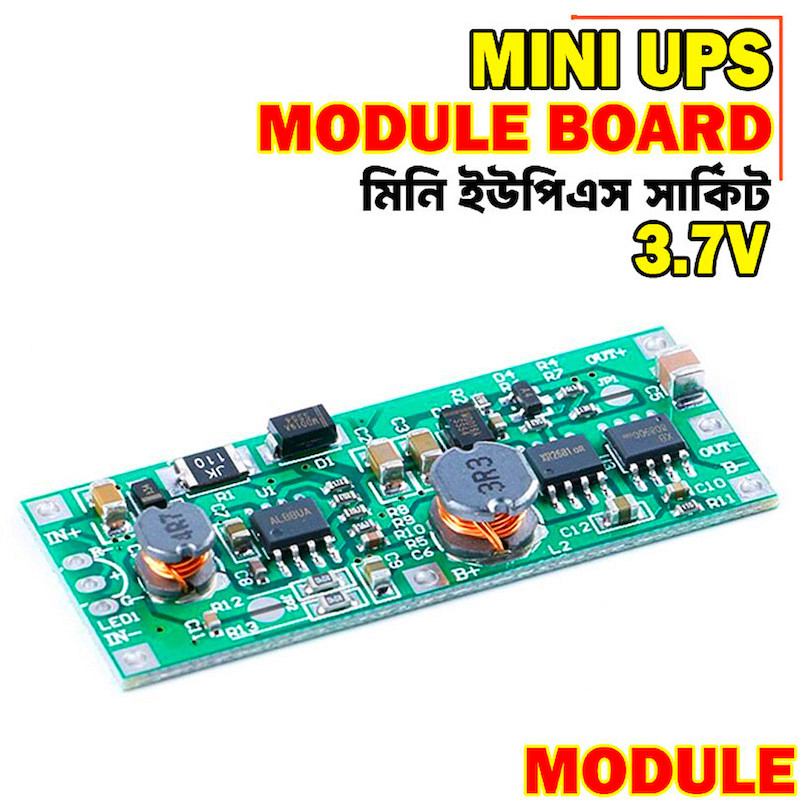

• DC UPS 12V 12W UPS uninterruptible power supply control board, used to design the continuous power supply of routers, switches and other network equipment or infrared alarms.
• When the battery is fully charged, the upper limit can output 1A current, and when the battery voltage is about to empty, it can output 8-9W Power, automatically shut down when the output is short-circuited, and recover after recharging. Before the battery is discharged and shut down, a flashing prompt will often appear. After flashing several times, it will enter the low-power protection and turn off the output!
• Hint: Input or output interfaces can share negative poles, positive poles cannot share negative poles, and battery terminals cannot share negative poles!
• Reminder: The current motherboard has a charging time detection function. The default slow charge is suitable for batteries within 8Ah, and the jumper is changed to fast charge for batteries within 8-15Ah.
